Voltage explained: what volts mean for 12V boat and camp gear
Voltage is electrical pressure. It is the push that moves current through a wire, measured in volts, and it is the difference between two points in a circuit rather than a quantity stored at one point. That is why a meter always has two probes: it is reading the gap between them.
Once you picture voltage as pressure, most 12V problems get easier. A battery that reads low is a tank with little pressure left. A long thin wire is a narrow hose that bleeds pressure before it reaches the pump. A light that glows dim instead of failing outright is usually getting voltage, just not enough of it.
This guide defines voltage, sets it beside amps, watts and ohms, then shows where those numbers land on the equipment you actually buy: batteries, chargers, wire, fuses, pumps and lights. It finishes with how to take a reading with a multimeter and what a battery's resting voltage tells you.
What voltage actually is, in plain language
Voltage is the difference in electrical potential between two points. Think of water in a raised tank. The height of the water is the pressure, the pipe is the wire, and the flow through the pipe is the current. Raise the tank and more flows. Voltage is that height.
The unit is the volt, written V. A voltage figure on its own is meaningless unless you know what it is measured against. When a battery is labelled 12V, that is the difference between its positive post and its negative post. When you probe a wire on a boat and see 12.4V, you are reading that wire against whatever your black probe is touching, normally the negative bus or the engine block.
This is why a broken ground connection produces such strange symptoms. The gear has plenty of voltage on the positive side, but the return path is missing, so there is no complete difference for current to work across. Nothing runs, and a careless meter reading can still show something close to battery voltage at the device.
Two other words come up constantly. Potential difference is just another name for voltage. Electromotive force, or EMF, is the voltage a source produces before any current is drawn from it, which is why a battery reads slightly higher with nothing connected than it does under load.
Volts, amps, watts and ohms: how the four relate
Four quantities describe almost every circuit you will meet. Voltage in volts is the push. Current, in amperes or amps, is the rate of flow. Resistance, in ohms, is how much the circuit fights that flow. Power, in watts, is the work being done.
They are tied together by two relationships. Ohm's law says voltage equals current multiplied by resistance. The power law says watts equal volts multiplied by amps. Rearrange either one and you can find any missing value from two known ones.
The practical use is converting between a device's rating and what your wiring has to carry. A 12V load rated at 84 watts draws 7 amps, because 84 divided by 12 is 7. Run the same 84 watts on a 24V system and it draws 3.5 amps, which is the whole reason larger boats and trolling systems move up in voltage. Higher voltage, lower current, thinner wire for the same work.
Current is what sizes your wire and your fuse, not voltage. A 12V circuit and a 120V circuit carrying the same amps need broadly similar conductor cross-sections for heating purposes. Voltage decides insulation rating and how much loss you can tolerate along the run.
| Quantity | Unit | What it is | Where you see it on a box |
|---|---|---|---|
| Voltage | Volt (V) | Electrical pressure between two points | 12V, 24V, 120V system rating |
| Current | Ampere (A) | Rate of charge flow | Draw in amps, fuse rating |
| Resistance | Ohm | Opposition to flow | Coil and heater specs, meter readings |
| Power | Watt (W) | Rate of doing work | Light output, inverter and charger ratings |
Ohm's law: V = I x R. Power law: P = V x I. Both are standard definitions in SI electrical units.
Why voltage drops over a long wire run
Every conductor has some resistance. Push current through it and a little of your voltage is spent inside the wire itself, turning into heat instead of arriving at the load. That loss is voltage drop, and it is the single most common reason 12V gear underperforms on a boat or in a camper.
Three things make it worse: more current, a longer run, and a thinner conductor. The run that matters is the round trip, positive out and negative back, because the current travels both legs. A device 20 feet from the panel sits on a 40 foot circuit.
Drop hurts more at low voltage. Lose one volt on a 120V circuit and you have lost a little under one percent. Lose one volt on a 12V circuit and you have lost more than eight percent, which is enough to make a bilge pump turn slower, an incandescent navigation lamp go yellow, and an electronics display reboot when the engine cranks.
The fix is almost always a heavier gauge rather than a cleverer connection, though corroded terminals and undersized crimps add their own resistance on top. For the actual gauge numbers, the store's marine wire size chart works the round trip and current into an AWG size, and the marine wiring basics guide covers how the circuit should be protected once it is sized.
12V, 24V and 120V: where each shows up
When a product says 12V, it means the nominal system voltage it is designed for. Nominal is a label, not a measurement. A 12V lead-acid system spends its life somewhere between the low twelves at rest and the high thirteens or low fourteens while an alternator or charger is running. Gear built for 12V DC is designed to tolerate that band.
The number comes from the cells. A lead-acid cell is nominally about 2 volts, and six of them in series give the familiar 12V battery. Put two 12V batteries in series and you have a 24V system. Some trolling motor setups run three in series for 36V. Series adds voltage, parallel adds capacity at the same voltage.
Larger vessels and many commercial installs use 24V for the same reason trucks do: half the current for the same power, so lighter cable and smaller contacts. If you have a 24V bank but 12V accessories, a step-down converter takes the higher bus down to a regulated 12V output rather than tapping one battery of the pair, which would unbalance the bank.
Household AC in North America is nominally 120V at the outlet, and that is what shore power, generators and inverters deliver to ordinary plug-in appliances. It is a different animal from the DC side, and the two should never share conductors or grounds casually. Treat the AC side as work for someone qualified if you are not sure.
| System | Typical use | Current for a 120 W load |
|---|---|---|
| 12V DC | Small boats, campers, most marine accessories | 10 A |
| 24V DC | Larger vessels, some trolling and commercial systems | 5 A |
| 36V DC | Three-battery trolling motor banks | 3.3 A |
| 120V AC | Shore power, generators, inverter output | 1 A |
Current calculated from the power law, amps = watts divided by nominal volts. Real draw varies with efficiency and actual bus voltage.
AC and DC, and why the difference matters
DC, direct current, flows one way. Batteries, solar panels and everything on a boat's 12V bus are DC. Polarity matters: swap positive and negative and some devices simply will not run, while others are damaged.
AC, alternating current, reverses direction many times a second. Shore power, generators and the output of an inverter are AC. An inverter turns DC into AC so you can run household appliances from a battery. A converter or battery charger does the reverse, taking AC and producing DC to charge a bank.
Your meter has to be set for the right one. Reading an AC circuit on a DC range, or the reverse, gives a number that looks plausible and means nothing. On a clamp meter, DC current measurement also needs a clamp built for it, since not every clamp reads DC.
A useful habit: DC voltages on a boat are small enough that the shock risk is low, but the short-circuit current from a battery is enormous and will melt tools and start fires. AC voltages are the reverse, modest current but genuinely dangerous to touch. Respect both, for different reasons.

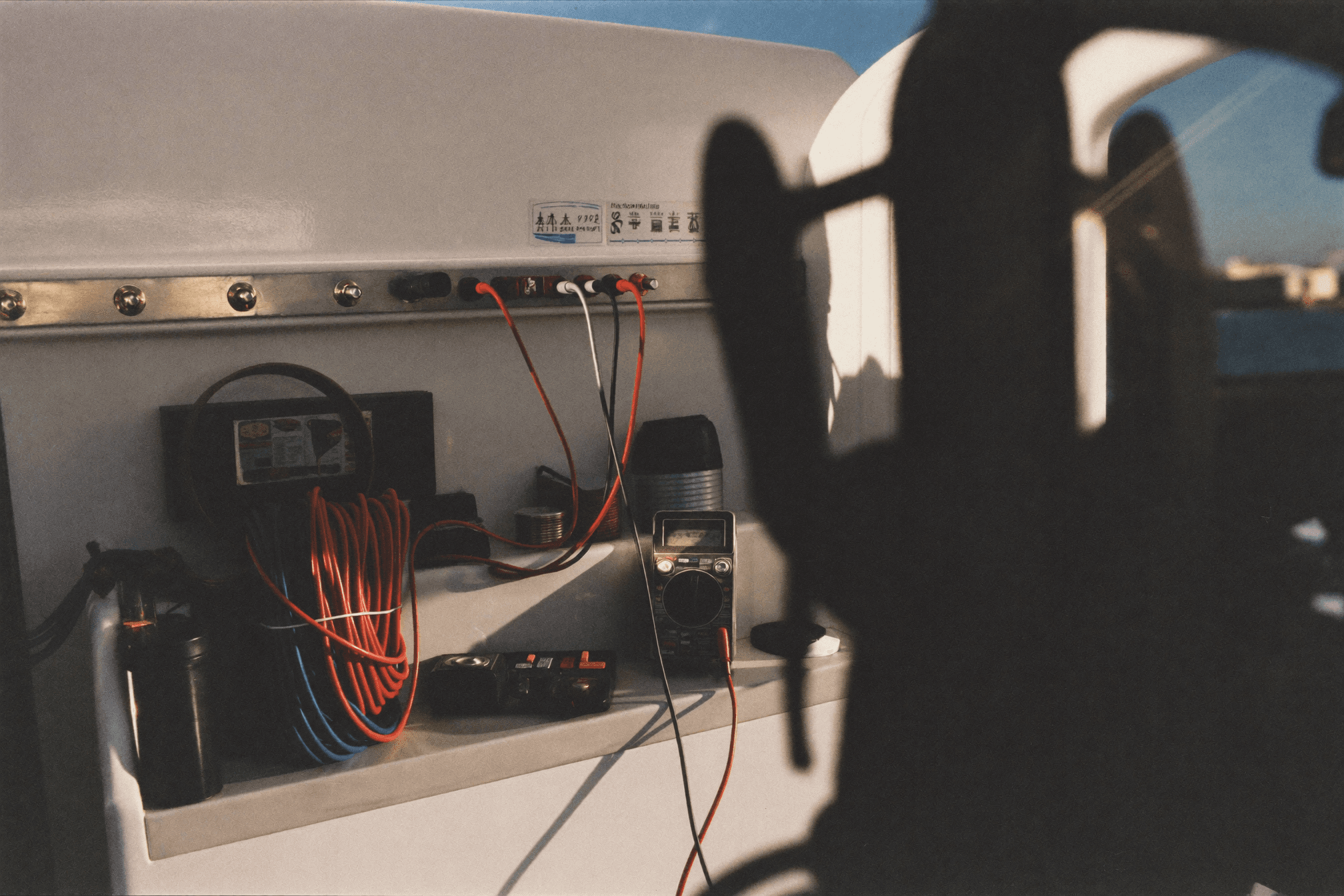

How to measure voltage with a multimeter
A multimeter measures voltage across a circuit, so the probes go in parallel with whatever you are testing. Black probe to the negative or ground side, red probe to the point of interest. You do not need to break anything open.
Set the dial to DC volts for battery and 12V work. If the meter is manual ranging, choose a range above what you expect, usually the 20V setting on a 12V system. Auto-ranging meters pick for you. Check that the red lead is in the voltage socket and not the current socket, because a meter left on a current range and touched across a battery is a dead short through the meter.
Take the reading at the battery posts first, then at the device. The difference between the two, with the device switched on and drawing current, is your voltage drop across that circuit. Do the same on the negative side by probing from the battery negative to the device's ground terminal. A ground path loss shows up nowhere else and explains a lot of intermittent faults.
A clamp meter adds current measurement without breaking the circuit: you close the jaws around one conductor and read the amps flowing through it. That is the quick way to confirm what a pump or a light bar is actually drawing against what its label claims. Panel-mounted voltmeters and accessory panels with a built-in voltage display do a simpler job, giving you a constant reading of bus voltage at the helm so a sagging battery is visible before it strands you.
Reading a battery from its voltage
Resting voltage is a rough fuel gauge for a lead-acid battery, and it is only valid when the battery is genuinely at rest. That means no charging and no significant load for several hours, because a battery holds a surface charge after charging that reads high and sags after a heavy draw that reads low.
Rather than memorise numbers, follow the manufacturer's chart for the battery chemistry you own. Flooded, AGM, gel and lithium iron phosphate all have different resting curves, and a lithium bank in particular holds a nearly flat voltage across most of its usable range, which makes voltage a poor state-of-charge indicator for it.
What voltage does tell you reliably is direction of travel. Watch the same battery on the same meter over time. A bank that used to rest higher and now rests lower after the same charge has lost capacity. A bank that drops sharply the moment a load comes on has high internal resistance, often from sulphation or a bad internal connection.
Charging voltage is the other half of the picture. A multi-stage charger deliberately raises voltage during bulk and absorption, then holds a lower float. Seeing a higher-than-nominal number while the charger runs is normal. Seeing it stay there indefinitely, or seeing it never rise at all, is worth investigating.
What to check when gear runs weak or will not start
Work from the source outwards, and take voltage readings under load. A circuit that measures fine with everything switched off tells you almost nothing, because a corroded joint can pass the tiny current a meter draws and still choke a pump.
Start at the battery posts with the load running. If the battery itself sags heavily, the problem is the battery or its charging, not the circuit. If it holds up, move to the device terminals and compare. A large gap between the two readings is voltage drop, and the suspects in order are undersized wire, corroded crimps and terminals, a tired switch or breaker, and a poor ground.
Check both sides. Most people probe the positive and stop. On a boat, ground faults are at least as common, because negative buses and engine-block grounds sit in damp places and collect corrosion. Probing battery negative to device negative with the load on will find them.
Then look at protection and connections. A fuse that is intact but discoloured, a breaker that trips warm, a butt splice that was crimped over insulation, a terminal that turns green when you unscrew it: all of these add resistance and all of them show up as missing volts at the far end. Replace rather than clean when a terminal is heavily corroded, and use tinned marine cable for anything that lives in salt air.
Meters and voltage monitoring
Tools for taking a reading and panels that keep bus voltage in view.

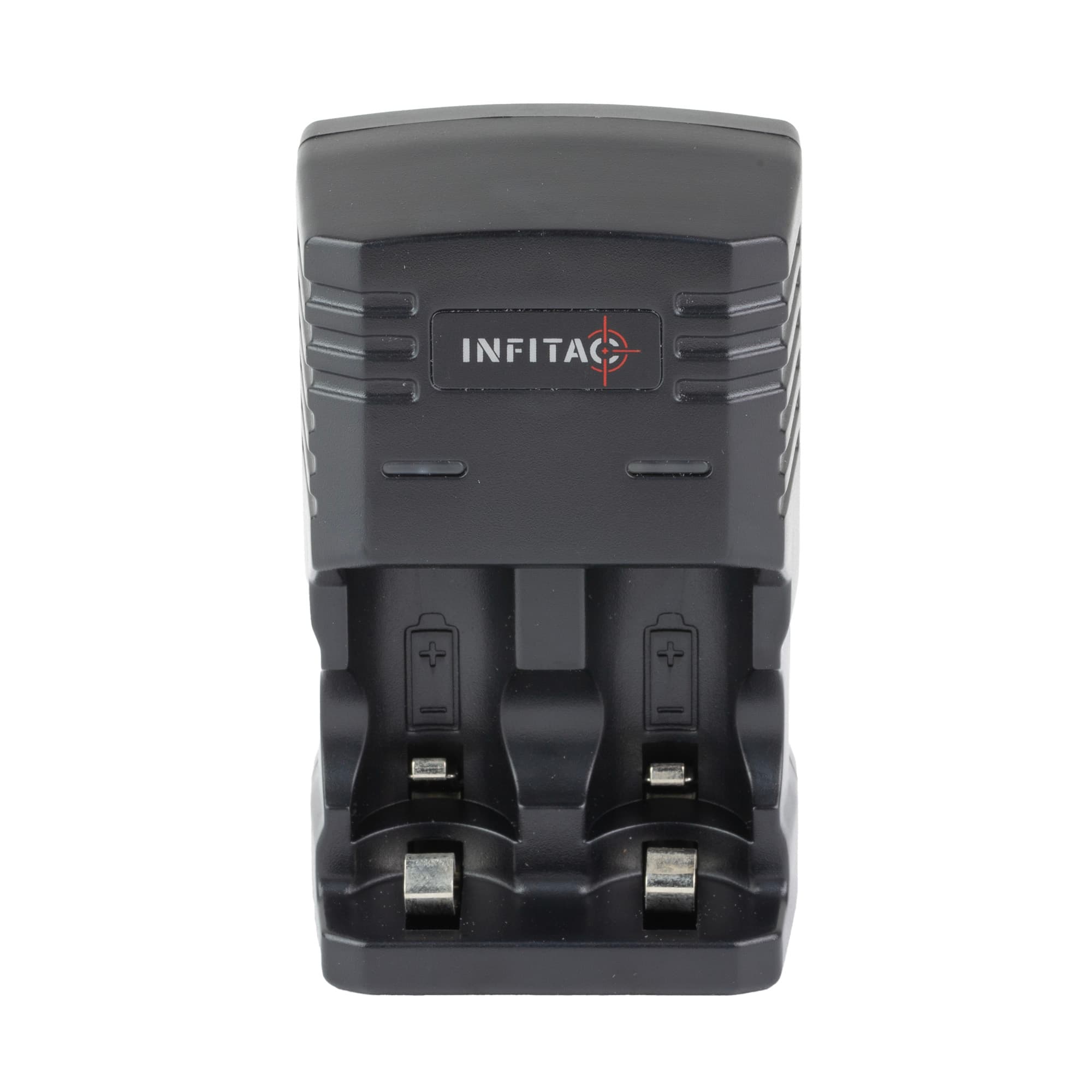

Chargers and charge control
Multi-stage chargers, solar control and DC-to-DC conversion for 12V and 24V banks.

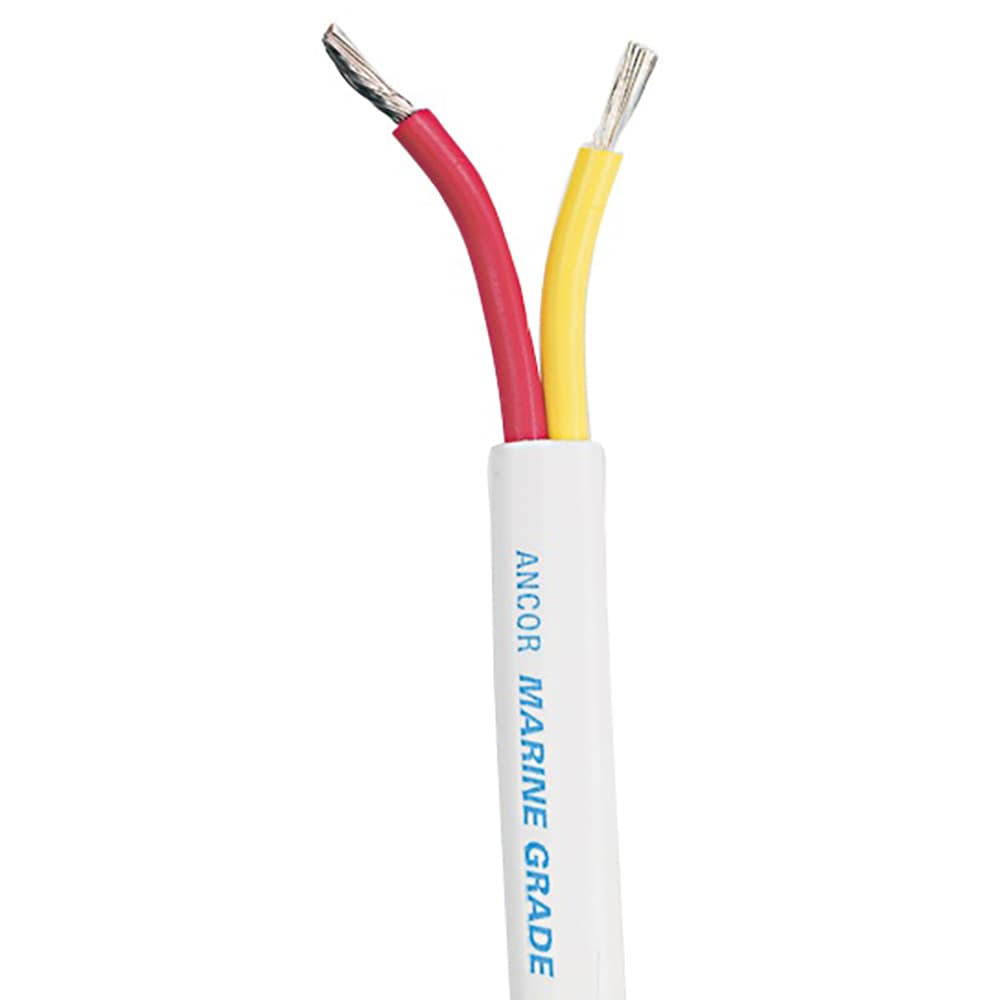

Marine cable and 12V circuit parts
Tinned cable, relays and fused plugs for wiring a 12V circuit properly.
Common questions
- What is voltage in simple terms?
- Voltage is electrical pressure, the difference in electrical potential between two points in a circuit. It is what pushes current through a wire. Because it is a difference, it is always measured between two places, which is why a multimeter has two probes. Its unit is the volt, written V.
- What is the difference between volts, amps and watts?
- Volts are the push, amps are the rate of flow, and watts are the work being done. They are linked by the power law: watts equal volts multiplied by amps. So a 12V device rated at 60 watts draws 5 amps. Amps size your wire and fuse; volts decide the system your gear must match.
- What does 12V actually mean on a product?
- It means the product is designed for a nominal 12 volt DC system. Nominal is a label, not a live measurement. A 12V lead-acid system normally sits somewhere in the twelves at rest and rises into the thirteens or fourteens while charging, and gear built for 12V DC is designed to work across that band.
- How do I measure voltage with a multimeter?
- Set the dial to DC volts for 12V work, make sure the red lead is in the voltage socket rather than the current socket, then touch the black probe to the negative side and the red probe to the point you want to read. Probes go in parallel with the circuit, so nothing has to be disconnected.
- Why does my 12V gear run weak at the end of a long wire?
- Voltage drop. Every conductor has resistance, so some of your voltage is lost as heat along the run instead of arriving at the load. Longer runs, thinner wire and higher current all make it worse, and the loss counts the round trip out and back. The usual fix is a heavier gauge.
- Is AC or DC more dangerous on a boat?
- They carry different risks. The 12V DC side is low enough voltage that shock risk is small, but a battery can deliver huge short-circuit current that melts tools and starts fires. The AC shore power side draws less current but is genuinely dangerous to touch. Treat AC work as a job for someone qualified.
