Name: Wichard Marine U-Bolt Pad Eye 6513W 6mm 316L Stainless Steel 70mm
Brand: Wichard Marine
SKU: 97686
Price: 36.99 USD
Availability: InStock

From the entry

Brand new in original packaging.

Genuine Wichard Marine 316L stainless steel U-bolt pad eye, model 6513W (OEM 6513).
6 mm (15/64 in) rod diameter, 70 mm (2-3/4 in) overall length - fully dropforged for high strength.
Working load 1280 kg (2820 lb) and breaking load 3000 kg (6610 lb) for demanding marine fastening applications.
Ideal for shrouds, lifelines, blocks and other rigging or hardware attachment points.
Weighs just 60 g (0.132 lb); max recommended tightening torque of 7.5 Nm for correct installation.
Corrosion-resistant 316L stainless steel construction suited to saltwater marine environments.

Specifications

Brand	Wichard Marine
MPN	6513W (OEM 6513)
UPC/EAN	3587790065138
Material	316L Stainless Steel
Rod Diameter	6 mm / 15/64 in
Overall Length	70 mm / 2-3/4 in

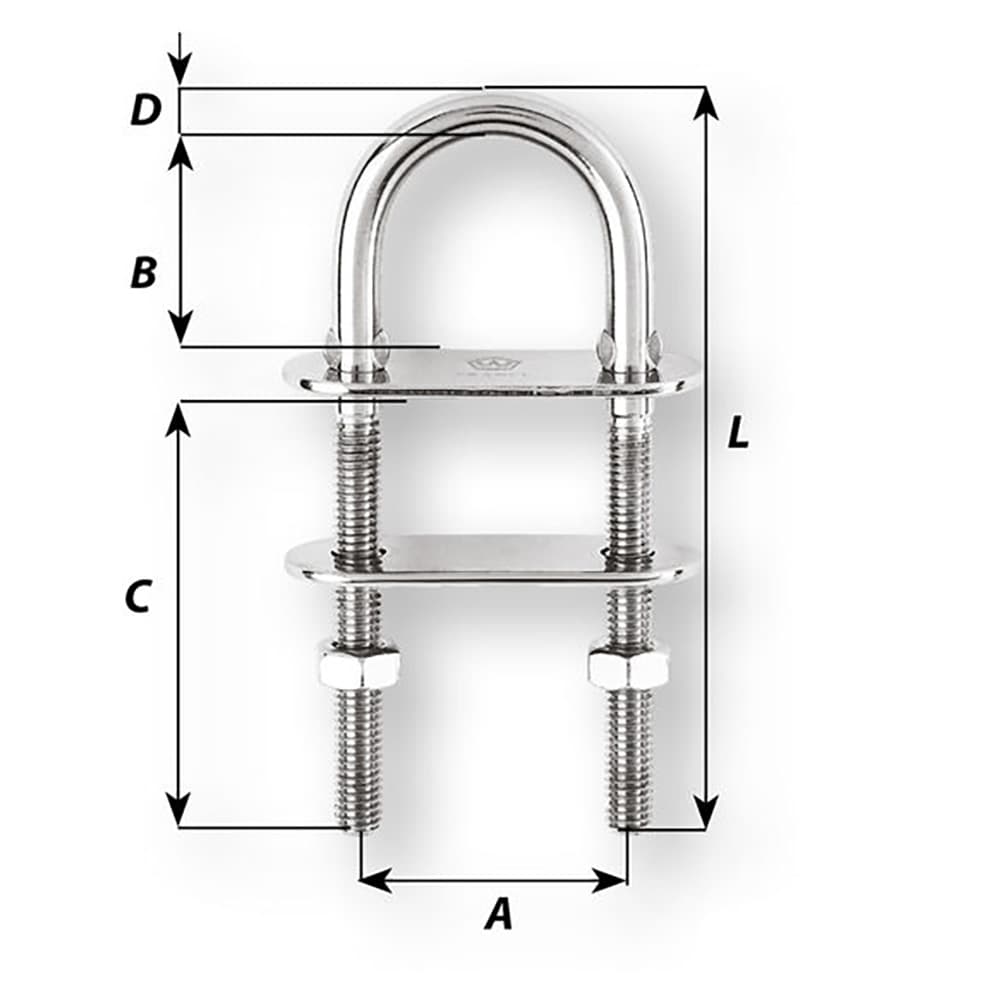

Dimension A	32 mm / 1-17/64 in
Dimension B	27 mm / 1-1/16 in
Dimension C	35 mm / 1-3/8 in
Working Load	1280 kg / 2820 lb
Breaking Load	3000 kg / 6610 lb
Weight	60 g / 0.132 lb
Max Tightening Torque	7.5 Nm

What's Included

U-bolt pad eye
Mounting bolts
Counter/backing plate
