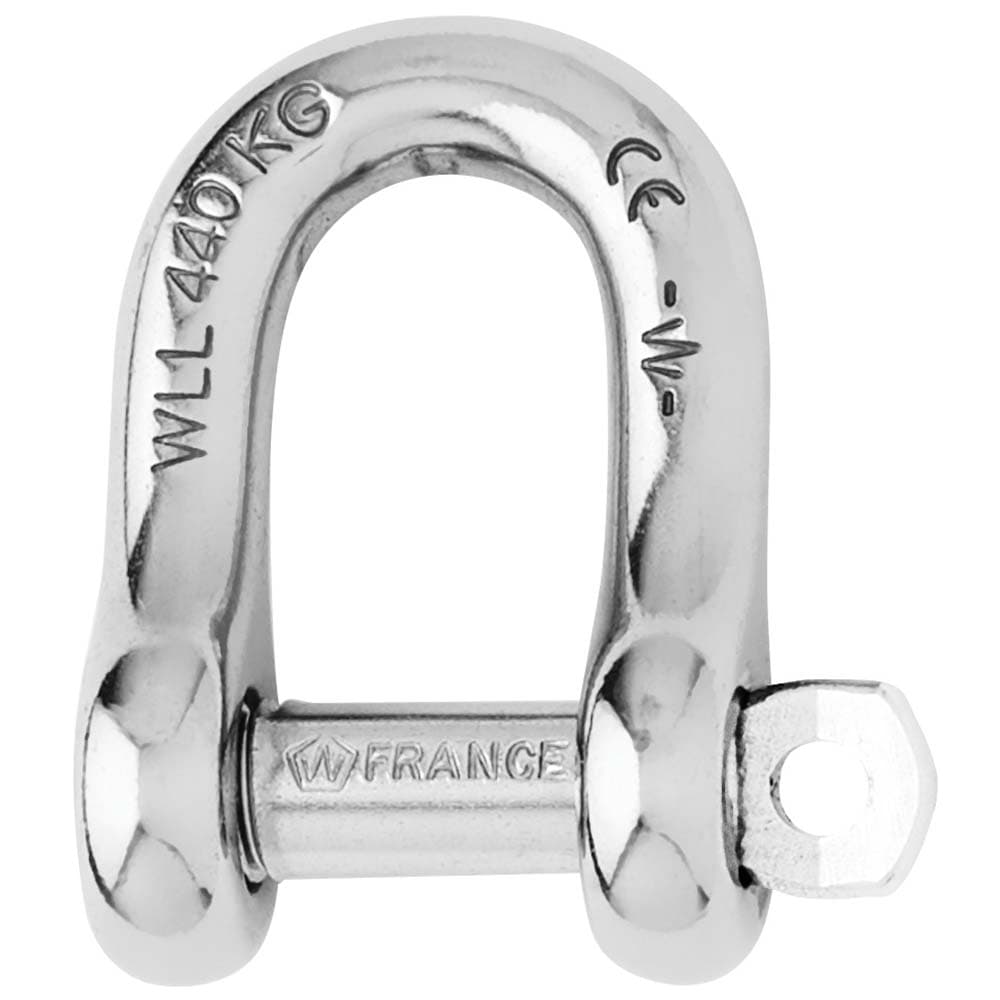

Wichard Captive Pin D Shackle 1406W 12mm 316 Stainless Steel
$123.09
Only 4 left - ships same or next business dayEstimated delivery: Thu, Oct 29 – Tue, Nov 3From the entry
Brand new in original packaging.
- Genuine Wichard captive-pin D shackle, forged from 316/316L stainless steel for corrosion resistance in marine environments.
- 12 mm pin diameter (approx. 15/32 in) suited for standard rigging attachment points such as blocks and hardware.
- Captive pin stays connected to the shackle body even when open, and locks into an indentation to prevent loosening from vibration.
- Single-handed operation design improves safety and ease of use on deck.
- Rated working load of 2100 kg, industrial WLL of 1400 kg, and breaking load of 7000 kg (5:1 safety factor).
- CE marked; weighs approximately 188 g (0.41 lb) per unit.
- Part #1406, UPC 768536014068.
Specifications
| Brand | Wichard |
| MPN | 1406W |
| UPC | 768536014068 |
| Material | Forged 316/316L stainless steel |
| Pin Diameter | 12 mm (approx. 15/32 in) |
| Working Load | 2100 kg |
| Working Load Limit (WLL) | 1400 kg |
| Breaking Load | 7000 kg |
| Weight | 188 g (approx. 0.41 lb) |

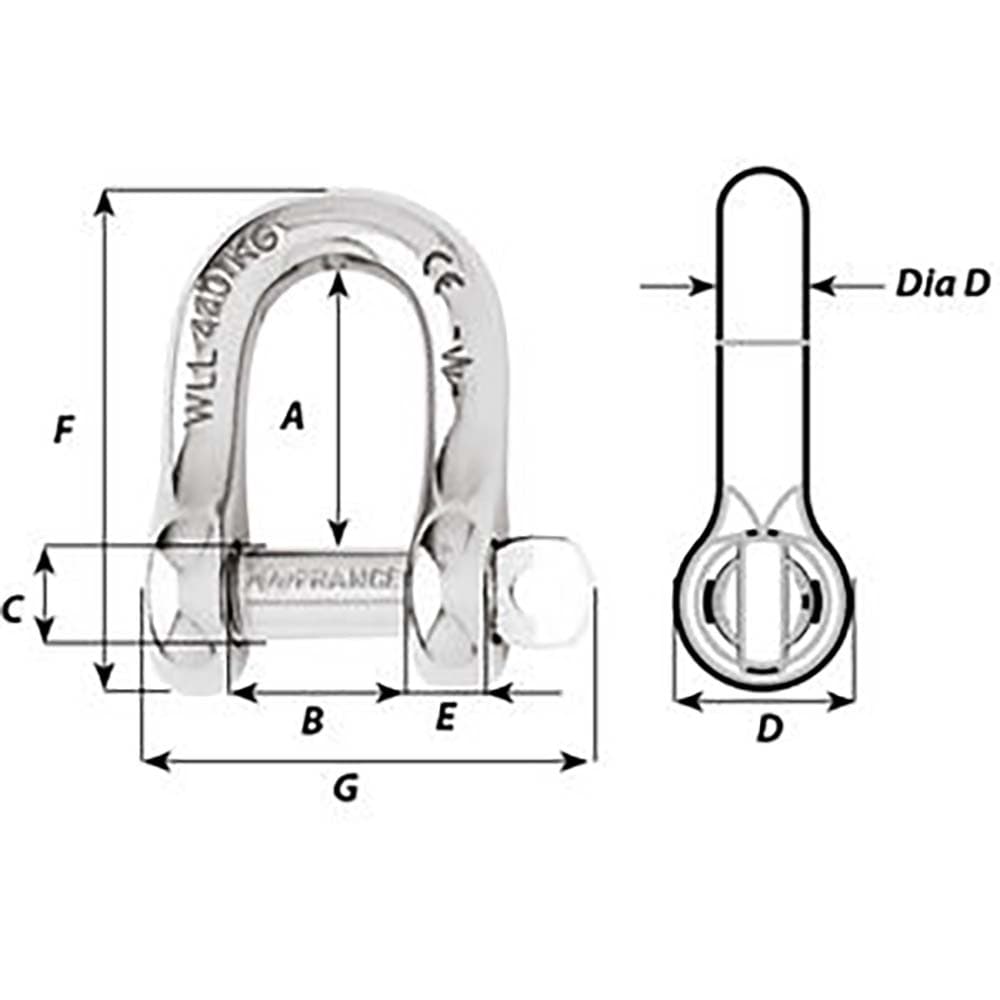

| Dimensions | A 39mm, B 24mm, C 13mm, D 24mm, E 11mm, F 69mm, G 62mm |
| Certification | CE marking |
What's Included
- 1 x Wichard Captive Pin D Shackle (1406W)
Shipping & Returns
Fast, free shipping from our US warehouse.
Returns accepted per our store return policy.
