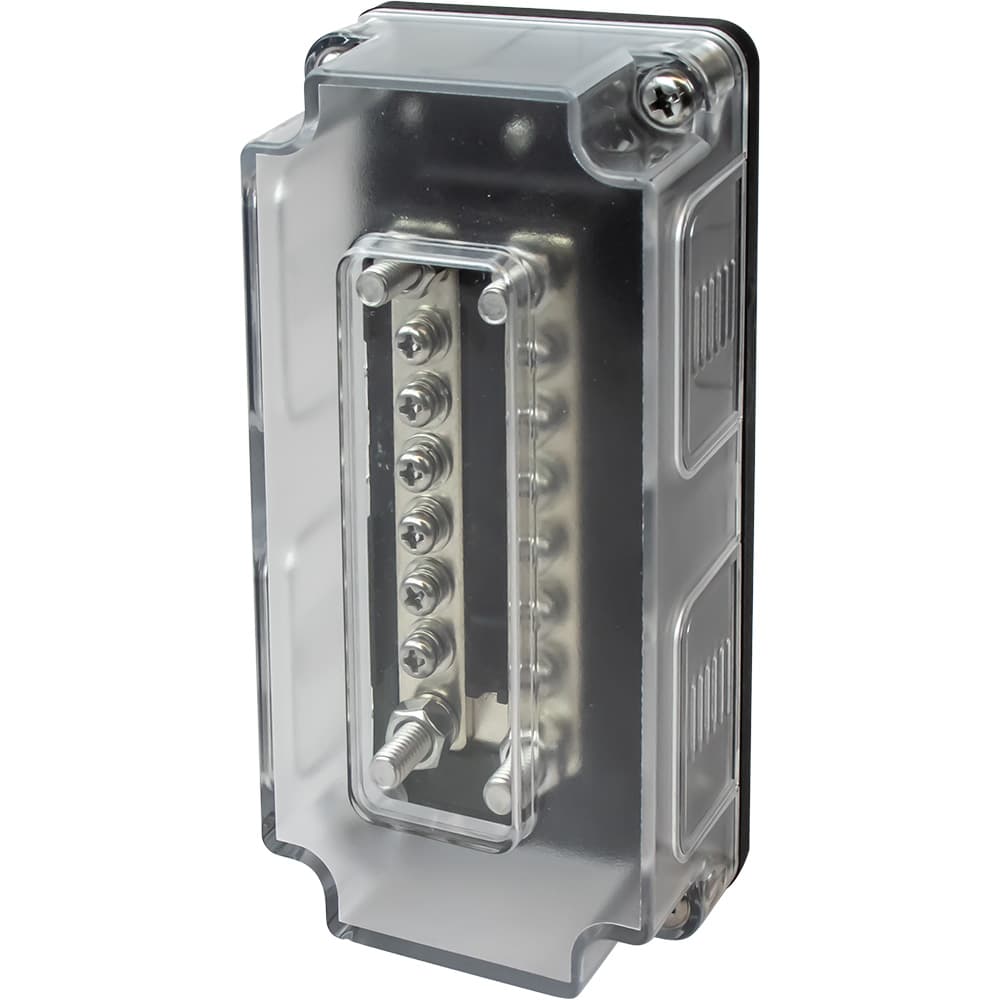

Name: Sea-Dog Dual Bus Bar with Cover 426693-3 12 Terminal
Brand: Sea-Dog
SKU: 100308
Price: 51.99 USD
Availability: InStock

From the entry

Brand new in original packaging.

Dual bus bar with two isolated busses in one compact block, ideal for DC positive and negative or AC neutral and ground distribution.
Each buss offers two 1/4-20 stainless steel stud terminals and six #8-32 screw terminals for 12 total connection points.
Rated up to 48VDC or 300VAC at 150A per buss for dependable power distribution.
Built from corrosion resistant tin plated copper with a rugged ABS base and clear polycarbonate cover.
Compact size measures 5-1/2 in x 2-3/4 in x 1-11/16 in and weighs 0.59 lb.
Includes four #8 flat head mounting screws for quick, secure installation.
CE and RoHS compliant construction for reliable marine electrical systems.

Brand	Sea-Dog
MPN	426693-3
UPC	035514433198
Number of Terminals	12
Terminal Studs	Two 1/4-20 in studs and six #8-32 screw terminals per buss
Max Amperage	150A per buss
Voltage Rating	48VDC / 300VAC
Dimensions	5-1/2 in x 2-3/4 in x 1-11/16 in
Weight	0.59 lb
Material	Tin plated copper with ABS base and polycarbonate cover
Country of Origin	China
Compliance	CE, RoHS Compliant
Mounting Hardware	Four #8 flat head screws included
