Name: Scanstrut Ventura Series XT60 Solar Connection SC-V-S3 IP68 Waterproof
Brand: Scanstrut
SKU: 111287
Price: 46.99 USD
Availability: InStock

From the entry

Brand new in original packaging.

Waterproof panel mount XT60 solar connection built for marine and RV exterior installations.
Rated IP68/IP69K with the lid closed, and IP65 in use when fitted with a compatible waterproof female connector.
Uses a genuine Amass XT60EW-M male waterproof connector for dependable high current solar charging.
Housing features marine grade 316 stainless steel components for long term outdoor durability.

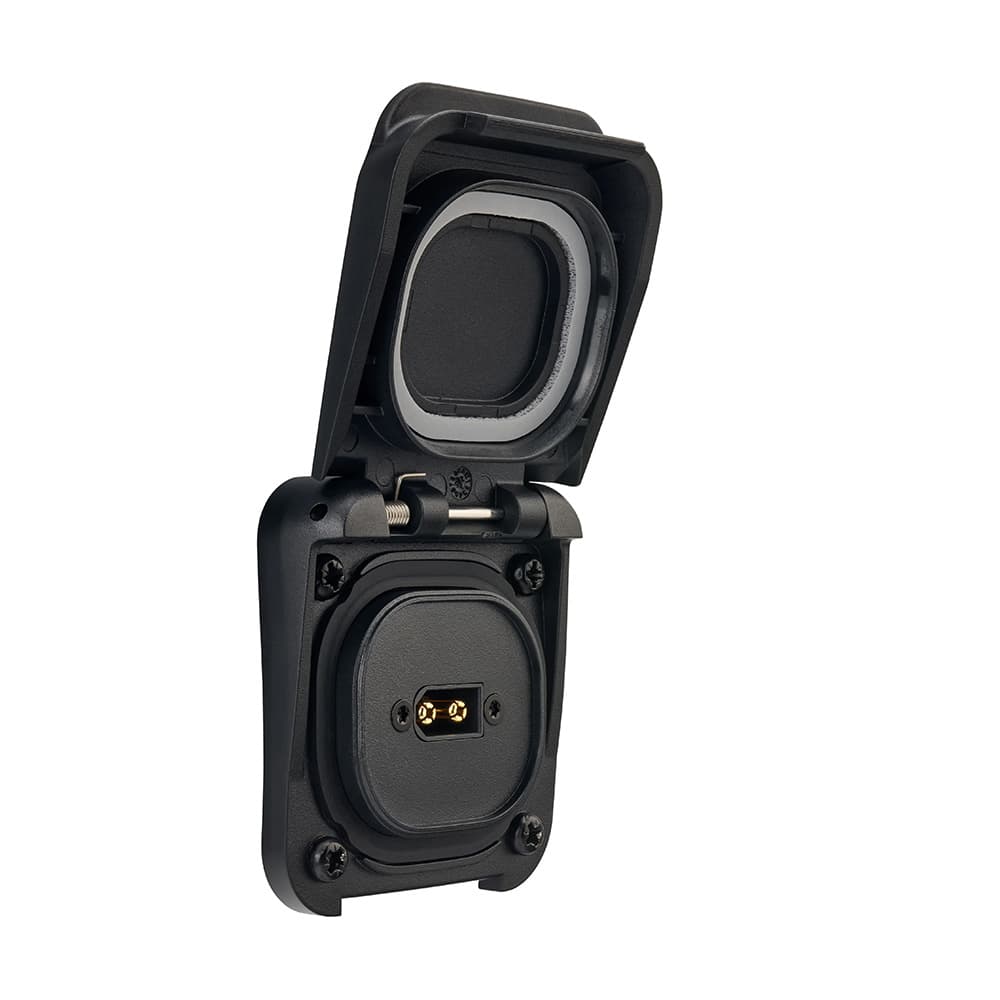

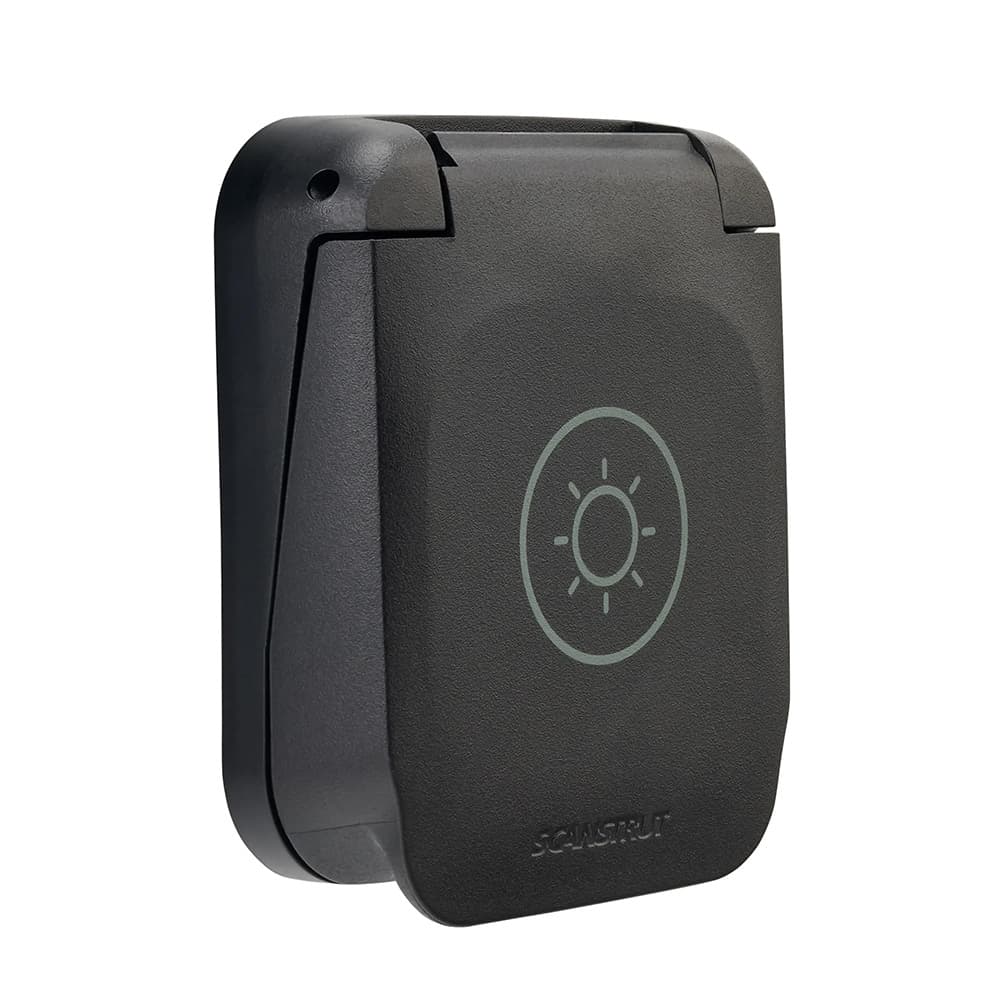

Spring loaded cover opens smoothly to 180 degrees with a 90 degree holding position for easy access.
Simple single hole installation using a standard 25mm (1 in) hole saw.
Handles up to 30A continuous current (60A instantaneous), rated to 500V DC and 1440W on 48V systems.

Specifications

Brand	Scanstrut
MPN	SC-V-S3
UPC	5060114799509
Connector Type	Amass XT60EW-M male waterproof connector
Ingress Protection Rating	IP68/IP69K with lid closed, IP65 in use with XT60W-F female waterproof connector fitted
Housing Material	Marine grade 316 stainless steel components
Cover Action	Spring loaded cover opens to 180 degrees with a 90 degree holding position
Electrical Rating	Up to 30A continuous (60A instantaneous), 500V DC, 1440W on 48V systems

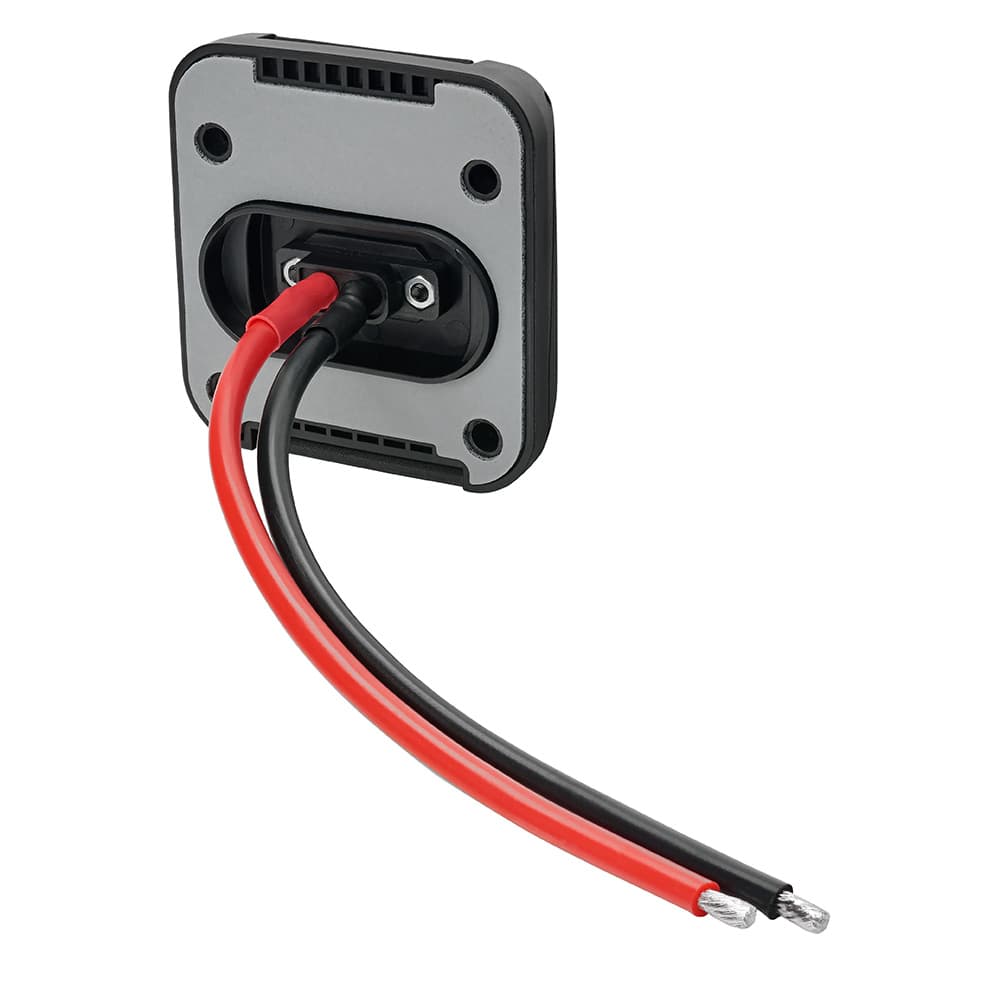

Integrated Cable	150mm (6 in) of 4mm squared tinned copper cable
Mounting Hole Size	25mm (1 in) hole saw required
Power System	DC power systems only
