Name: Scanstrut Ventura Series Anderson 50A Solar Connection SC-V-S1 IP68 Waterproof
Brand: Scanstrut
SKU: 111285
Price: 46.99 USD
Availability: InStock

From the entry

Brand new in original packaging.

Marine grade 316 stainless steel Anderson SB50 solar connection port rated for 50A continuous current, up to 2400W on 48V systems.
IP68 and IP69K waterproof protection when the spring loaded cover is closed, plus strong UV resistance for long term outdoor use.

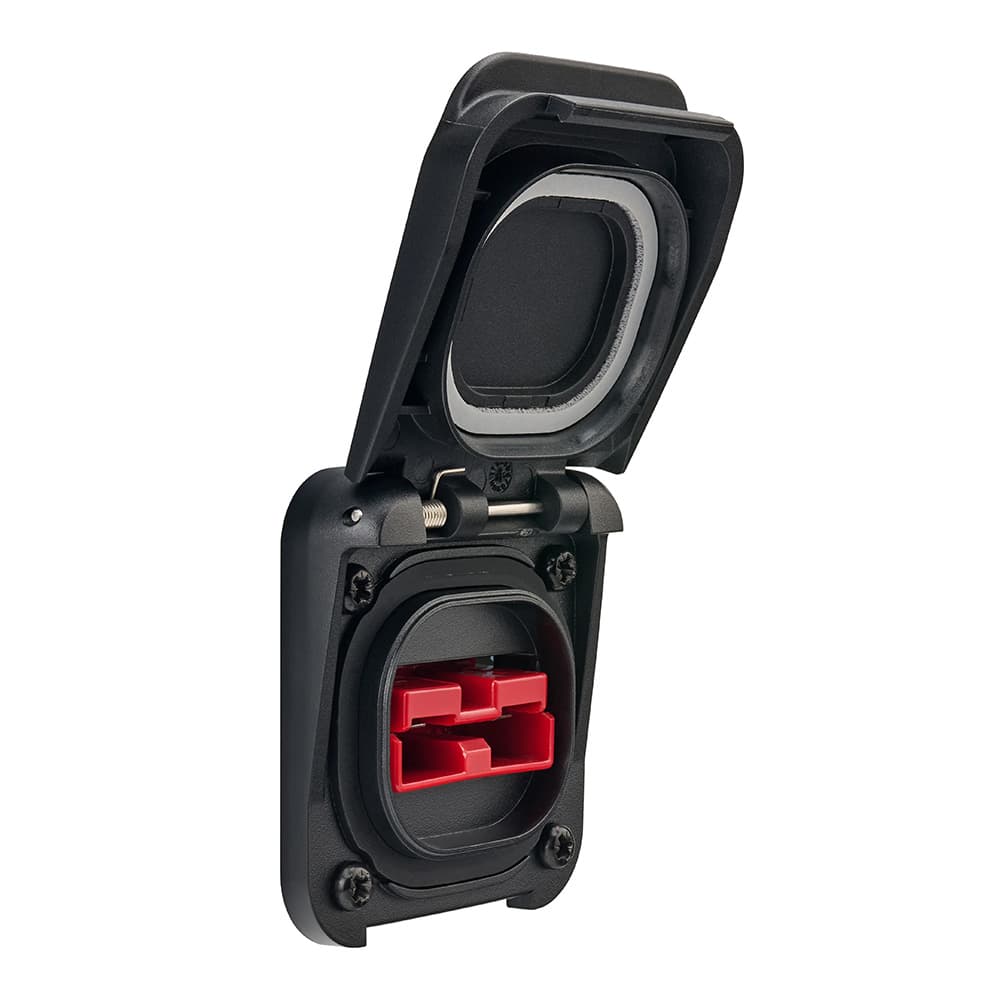

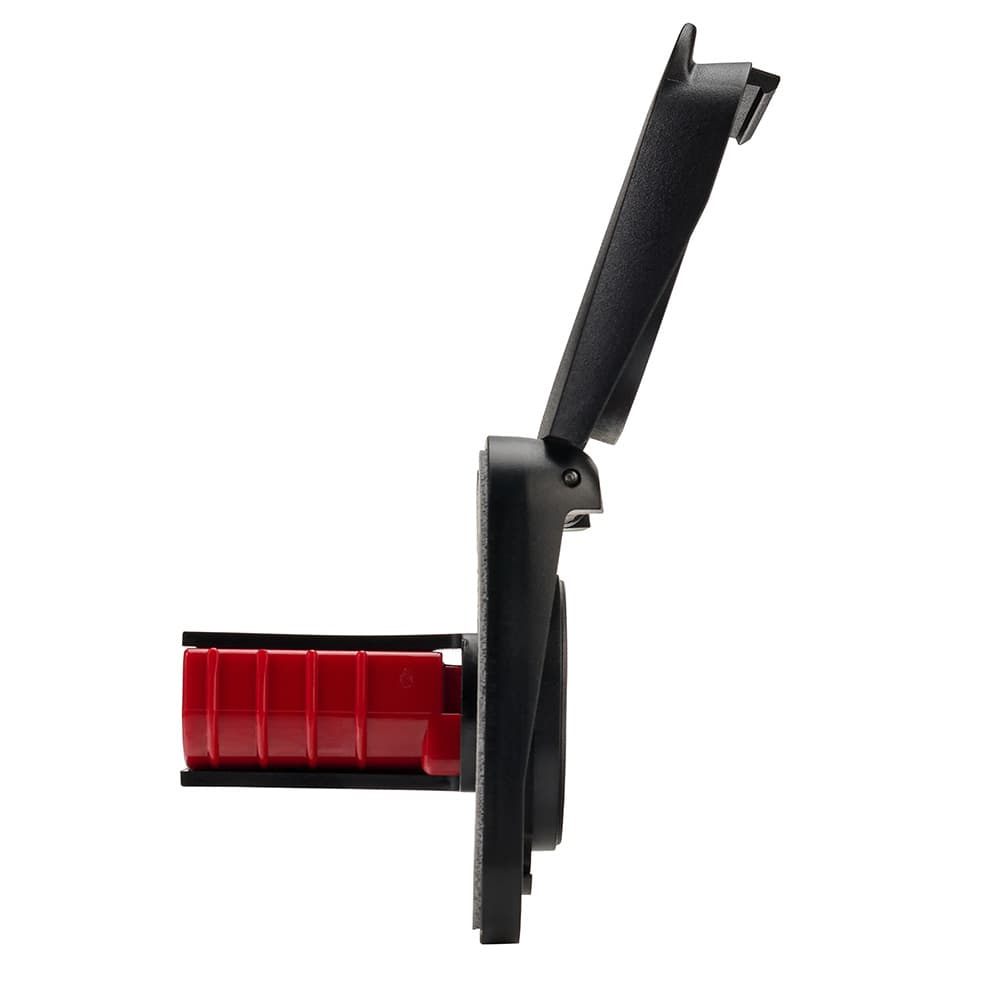

Spring loaded cover opens smoothly to 180 degrees with a 90 degree holding bump for easy access.
Simple installation using a standard 25mm (1 inch) hole saw, mounting gasket included.
Part of the coordinated Scanstrut Ventura Series of inlets and outlets for boats, RVs, and outdoor power systems.
Anderson SB50 terminal crimps are not included, purchase separately.

Specifications

Brand	Scanstrut
MPN	SC-V-S1
UPC	5060114799486
Connector Type	Anderson SB50
Current Rating	50A continuous current
Power Rating	Up to 2400W on 48V systems
Waterproof Rating	IP68 and IP69K (front sealed when lid closed)
Material	Marine grade 316 stainless steel
Installation Hole Size	25mm (1 in) hole saw, mounting gasket included
Cover Design	Spring loaded cover opens to 180 degrees with a 90 degree holding bump
