Name: Rule 500 GPH Standard Bilge Pump Kit 25DA-35A w/Float Switch 12V Marine
Brand: Rule
SKU: 75182
Price: 101.99 USD
Availability: InStock

From the entry

Brand new in original packaging.

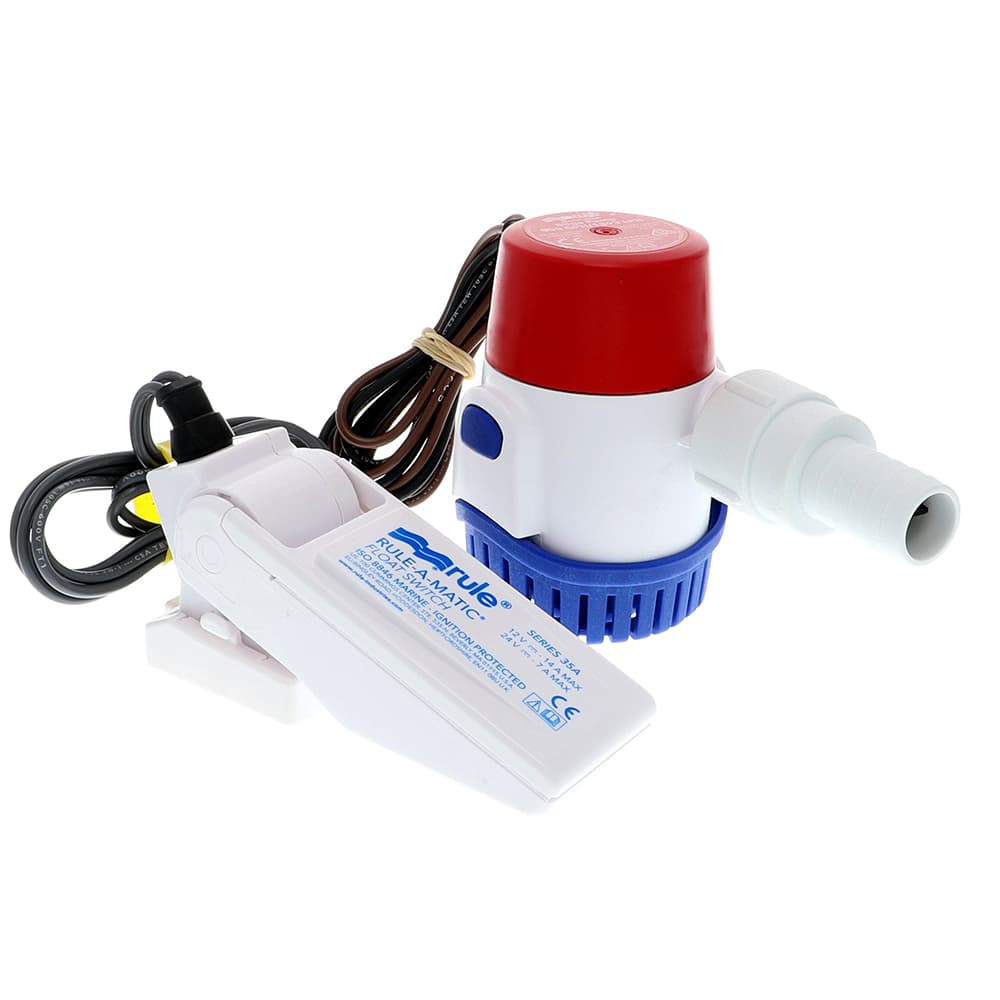

Complete ready-to-install 12V bilge pump kit: Rule 500 GPH (25DA) submersible pump paired with the Rule-A-Matic (35A) non-mercury float switch for automatic operation.
Delivers 500 GPH (1893 LPH) open flow with low ~1.6A draw at max flow; requires a 4A fuse (not included).
Fully submersible and ignition-protected design with a corrosion-resistant stainless steel shaft.
High-abrasion, tin-coated silicone blocked wiring for durability in marine environments.
Built-in back-flow preventer reduces residual bilge water and helps minimize odor.
3/4 in NPSM port with 3/4 in hose barb for standard bilge hose connections.

Specifications

Brand	Rule (Xylem)
MPN	25DA-35A
UPC	042237106513
Flow Rate	500 GPH / 1893 LPH open flow
Voltage	12V DC
Amp Draw	1.6 A at max flow (dealer consensus; one source lists 2.1 A)
Fuse Requirement	4A fuse required, not included
Port Size	3/4 in NPSM & 3/4 in hose barb
Pump Dimensions	3.9 in H x 2.9 in W x 2.5 in D (kit); standalone pump listed elsewhere as 3-1/2 in x 2-3/8 in x 2-3/8 in
Shaft Material	Stainless steel
Wiring	High-abrasion, tin-coated silicone blocked wire
Back-Flow Preventer	Included
Ignition Protection	Ignition protected
Submersibility	Completely submersible
Float Switch	Rule-A-Matic non-mercury float switch (35A)

What's Included

Rule 500 GPH (25DA) submersible bilge pump
Rule-A-Matic (35A) non-mercury float switch
Integrated back-flow preventer

Shipping & Returns

Fast, free shipping from our US warehouse.

Returns accepted per our store return policy.

Type

Bilge Pump

Brand

Rule

Model

25DA-35A

Voltage

12V

Item Width

2.9 in

Item Height

3.9 in

Item Length

2.5 in

Maximum Flow Rate

500 gal/h
