Rule 3700 GPH Non-Automatic Submersible Marine Bilge Pump 16A 24V
Shop / Marine & BoatingRule

Rule 3700 GPH Non-Automatic Submersible Marine Bilge Pump 16A 24V

$288.99
In stock - ships same or next business dayEstimated delivery: Thu, Oct 29 – Tue, Nov 3
1
SKU 34557
UPC 42237083517
Free shipping
180-day guarantee · U.S. warehouse
Earn $14.45 store credit

From the entry

Brand new in original packaging.

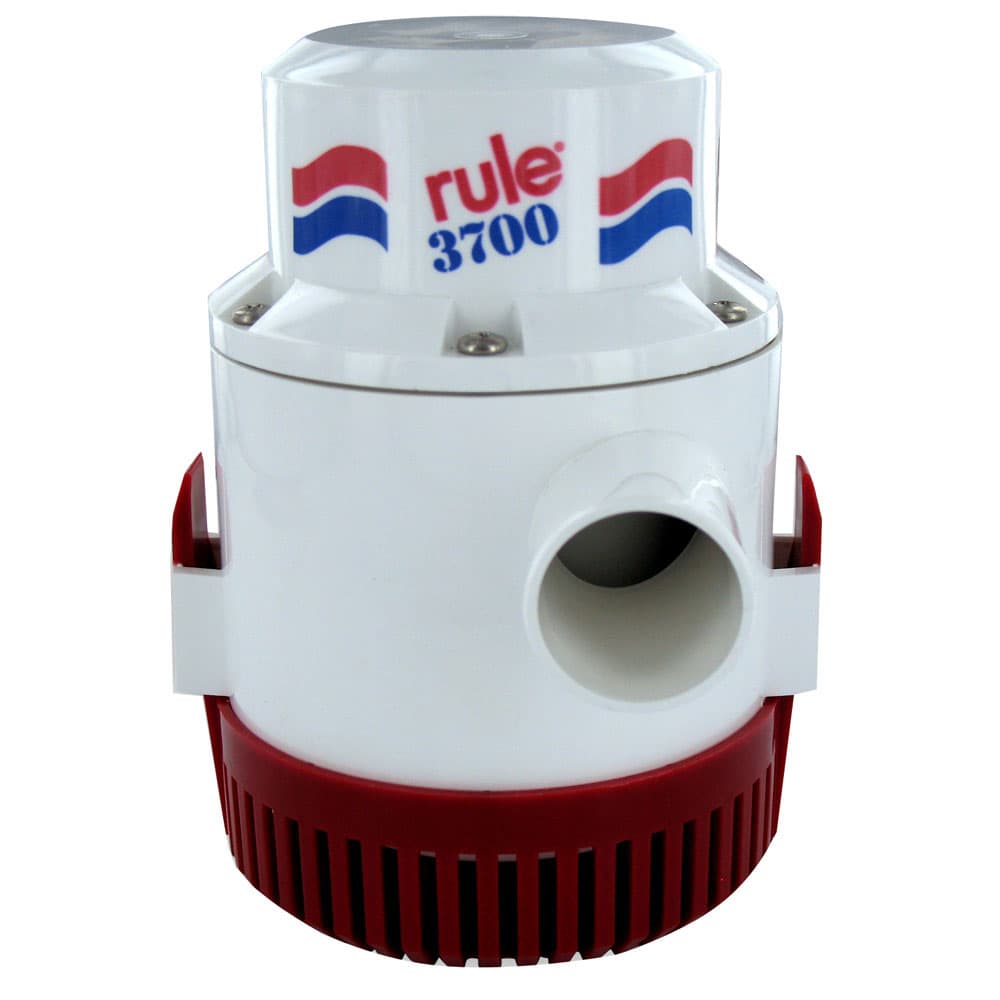

  • Rule 3700 GPH non-automatic submersible bilge pump, Model 16A, built for 24V DC marine electrical systems.
  • Draws 6.9A at 24V (up to 10A at 27.2V); recommended fuse size is 15A for proper circuit protection.
  • Compact housing measures 7-1/4 in tall by 4-7/8 in diameter with a 1-1/2 in discharge hose fitting.
  • Heavy-duty, fully submersible design with rust/corrosion protection and silent, vibrationless operation.
  • Can run dry without motor burn-out; features marine-grade sealed wiring and moisture-tight seals.
  • Easy-to-clean snap-lock strainer base with stainless steel shaft; strainer is replaceable with Model 279.
  • Non-automatic pump requires a separate float switch (compatible with 37A, 40A) or panel switch (42, 44, 45, 49), sold separately.

Specifications

BrandRule (Xylem)
MPN / Model No.16A
UPC042237083517
Capacity3,700 GPH (14,010 LPH)
Voltage24 VDC
Current Draw6.9 A @ 24V (10 A @ 27.2V)
Recommended Fuse Size15 A
Pump TypeNon-Automatic (requires separate float or panel switch)
Height7-1/4 in (184 mm)
Diameter4-7/8 in (124 mm)
Discharge Hose Diameter1-1/2 in (38 mm)
Replacement StrainerModel 279
Compatible Float Switches37A, 40A
Compatible Panel Switches42, 44, 45, 49
Shaft MaterialStainless Steel
Weight5.9 lb
CertificationCE, ISO 8849, Ignition Protected

What's Included

  • Rule 3700 GPH Non-Automatic Bilge Pump (Model 16A)

Shipping & Returns

Fast, free shipping from our US warehouse.

Returns accepted per our store return policy.
