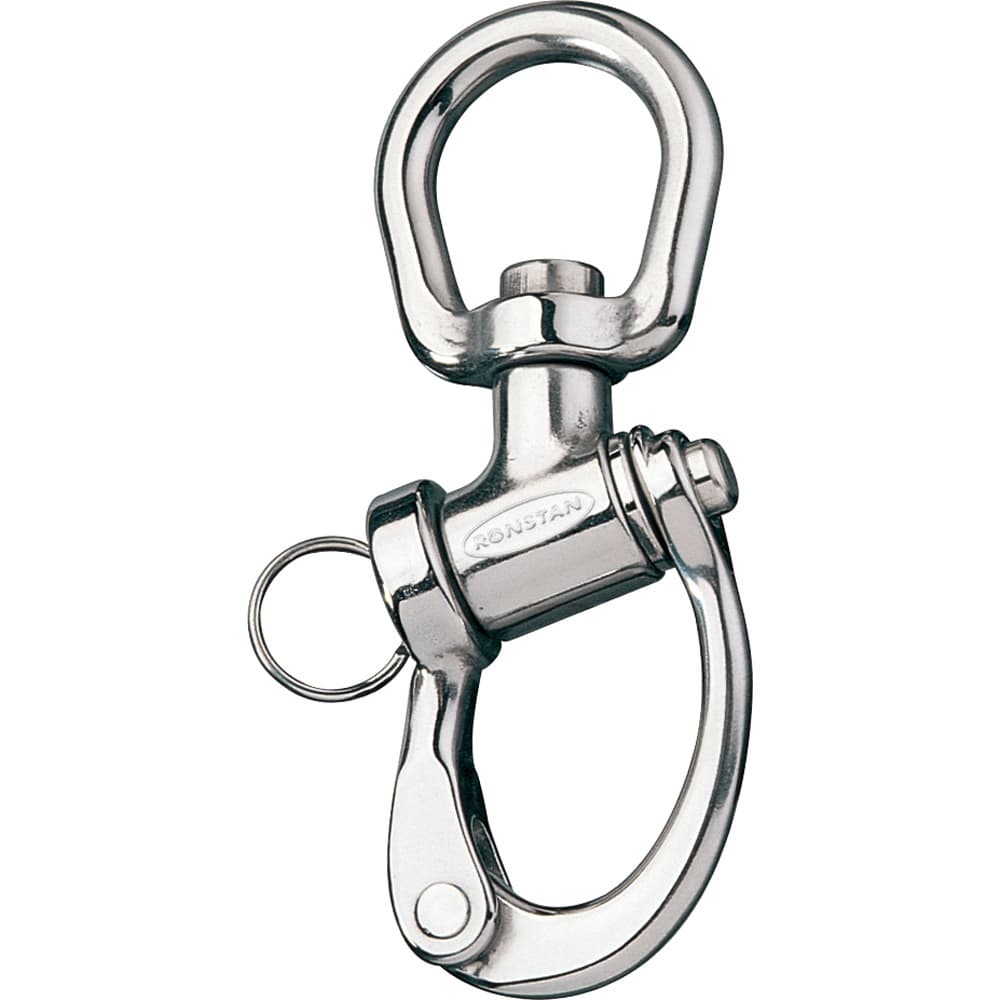

Name: Ronstan Trunnion Snap Shackle RF6321 Large Swivel Bail 122mm
Brand: Ronstan
SKU: 55316
Price: 170.36 USD
Availability: InStock

From the entry

Brand new in original packaging.

Ronstan RF6321 Trunnion Snap Shackle with a large swiveling bail, designed for spinnaker and dual-line rigging applications.
Body, hasp, and bail are made from Grade 15-5PH investment cast stainless steel; plunger pin and spring are Grade 316 stainless steel for corrosion resistance.
Trunnion swivel head allows 360° rotation plus side-to-side articulation, keeping load correctly oriented even when shackle movement is restricted.
Overall length is 122 mm (4-3/4 in); rated Safe Working Load 2,980 lb and Breaking Load 5,950 lb.
Bail size measures 1-1/32 in, suited for perforated toe rails, low-profile pad eyes, blocks, and halyard exits.
Compatible with the Ronstan RF6360 replacement plunger pin kit for field maintenance.

Specifications

Brand	Ronstan
MPN	RF6321
UPC	9316800222698
Overall Length	122 mm (4-3/4 in)
Breaking Load	5,950 lb
Safe Working Load	2,980 lb
Bail Size	1-1/32 in
Body/Hasp/Bail Material	Grade 15-5PH investment cast stainless steel
Plunger Pin & Spring Material	Grade 316 stainless steel
Motion	Swivel (360°) and pivot trunnion head
Weight (shipping)	0.47 lb
