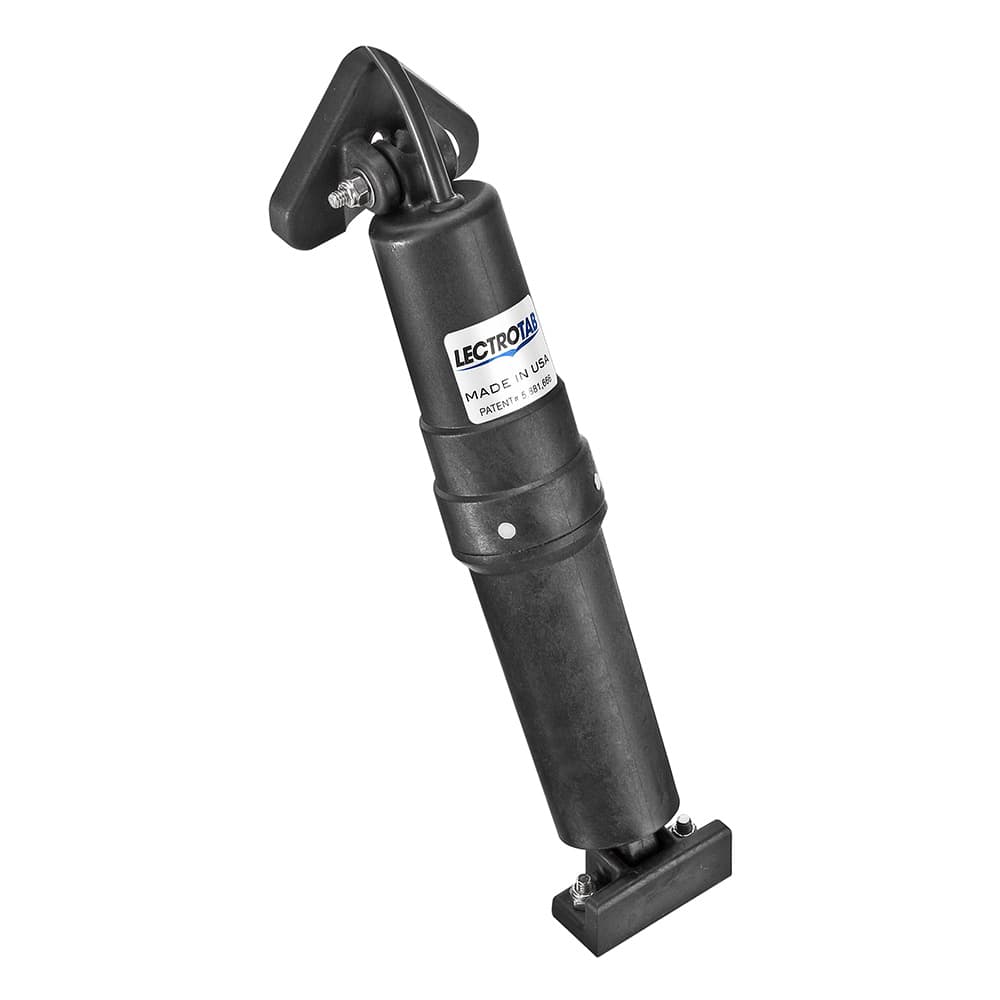

Lectrotab Standard Trim Tab Actuator A-BK-13 12V 23 Ft Cable
Shop / Marine & BoatingLectrotab

Lectrotab Standard Trim Tab Actuator A-BK-13 12V 23 Ft Cable

$230.99
In stock - ships same or next business dayEstimated delivery: Thu, Oct 29 – Tue, Nov 3
1
SKU 96254
UPC 850046155017
Free shipping
180-day guarantee · U.S. warehouse
Earn $11.55 store credit

From the entry

Brand new in original packaging.

  • Lectrotab Standard Trim Tab Actuator, model/MPN A-BK-13, operates on 12 VDC power.
  • Extended 23 ft (7 m) cable length variant, ideal for longer transom-to-helm runs.
  • 2.25 in (57 mm) stroke with an 8-second stroke speed for precise, quiet tab positioning.
  • Non-hydraulic, maintenance-free design in a permanently sealed, non-metallic, corrosion-proof housing.
  • Internal brake system prevents unwanted tab movement while underway or backing down.
  • Fully load tested to push 1000 lbs of force; compatible with all trim tab styles.
  • Includes standard upper and lower mounting brackets for transom installation.

Specifications

Brand/ManufacturerLectrotab (mfr: Linear Devices Corporation)
MPNA-BK-13
DC Voltage12 VDC
Stroke Length2.25 in / 57 mm
Stroke Speed8 sec
Cable Length23 ft / 7 m
Bolt-to-Pin Distance11.5 in / 292 mm
Vertical Height (Retracted)11.875 in / 302 mm
Mounting BracketsStandard upper and lower transom brackets included
Compatible TabsAll Tabs
Housing ConstructionNon-metallic, permanently sealed, corrosion-proof housing
Rated ForceLoad tested to push 1000 lbs of force
Shipping WeightApprox. 3.3 lb
UPC850046155017

What's Included

  • Lectrotab A-BK-13 Standard Trim Tab Actuator with 23 ft cable and standard mounting brackets

Shipping & Returns

Fast, free shipping from our US warehouse.

Returns accepted per our store return policy.

Specifications

MPNA-BK-13
TypeTrim Tab Actuator
BrandLectrotab
ModelA-BK-13
Product LineStandard Actuators
Number of Items1
