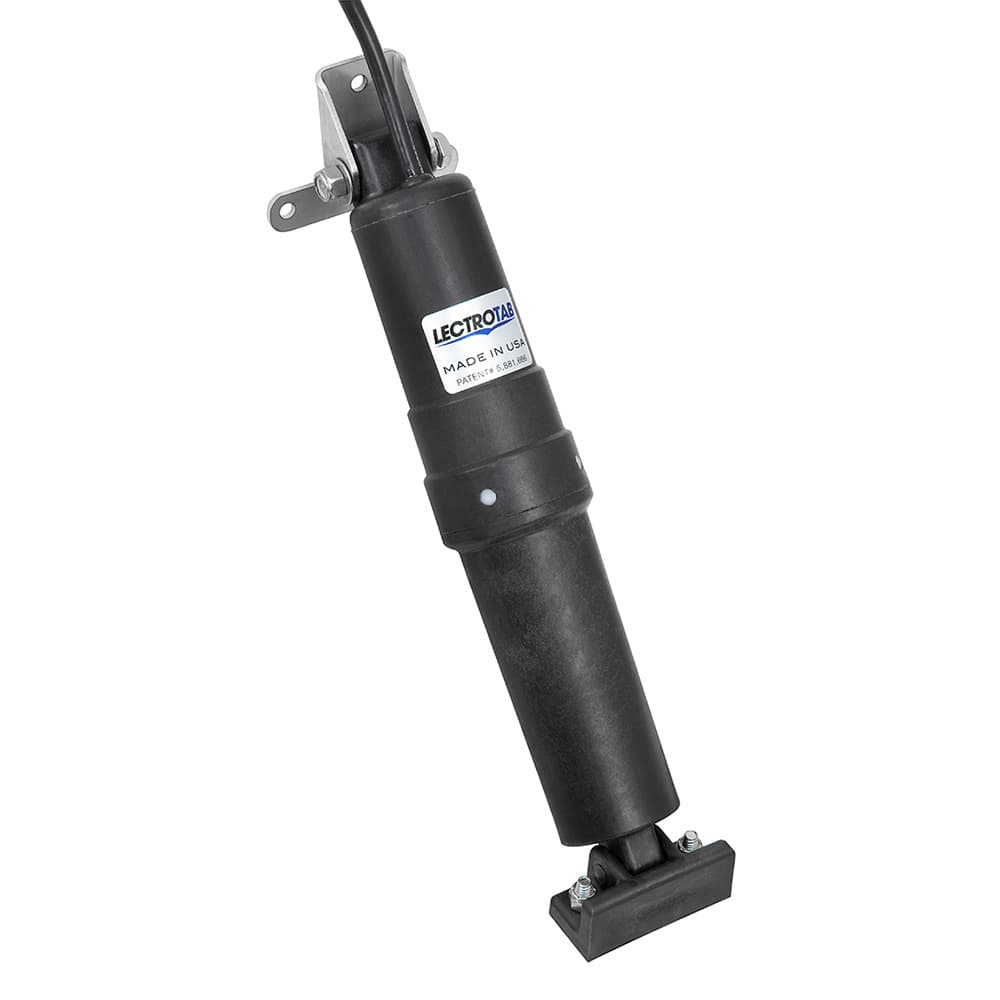

Lectrotab Heavy Duty Trim Tab Actuator A-BK-20 12V 6 Ft Cable
$243.99
Only 9 left - ships same or next business dayEstimated delivery: Thu, Oct 29 – Tue, Nov 3From the entry
Brand new in original packaging.
- Genuine Lectrotab 12VDC Heavy Duty Trim Tab Actuator, model A-BK-20, with 6 ft (1.8 m) power cable.
- Delivers a 2.25 in stroke length with an 8-second stroke time for responsive tab adjustment.
- Fully load tested to push 1000 lbs of force for reliable heavy-duty performance.
- Features a reinforced upper mounting boss and a 12-gauge stainless steel upper mounting bracket.
- Non-metallic, permanently sealed external housing resists corrosion and sun/water deterioration.
- Internal brake system prevents unwanted tab movement while underway or backing down, for quiet operation.
- Compatible with all Lectrotab trim tabs and designed to upgrade most popular hydraulic or electromechanical systems.
- Vertical height of 11.875 in and bolt-to-pin distance of 11.5 in as installed (fully retracted).
Specifications
| Brand | Lectrotab (manufactured by Linear Devices Corporation) |
| MPN | A-BK-20 |
| UPC | 850046155321 |
| DC Voltage | 12VDC |
| Cable Length | 6 ft / 1.8 m |
| Stroke Length | 2.25 in / 57 mm |
| Stroke Time | 8 sec |
| Distance Bolt to Pin | 11.5 in / 292 mm |
| Vertical Height (Retracted) | 11.875 in / 302 mm |
| Upper Mounting Bracket | Stainless Steel, 12 gauge |
| Load Rating | Tested to push 1000 lbs of force |
| Housing Material | Non-metallic, permanently sealed |
| Shipping Weight | 2.65 lb |
| Package Dimensions | 14 x 3 x 3 in |
What's Included
- 1 x Lectrotab Heavy Duty Trim Tab Actuator (A-BK-20) with 6 ft cable, upper stainless steel mounting bracket, and standard lower mounting bracket
Shipping & Returns
Fast, free shipping from our US warehouse.
Returns accepted per our store return policy.
Specifications
| MPN | A-BK-20 |
|---|---|
| Type | Trim Tab Actuator |
| Brand | Lectrotab |
| Unit Type | Unit |
| Unit Quantity | 1 |
