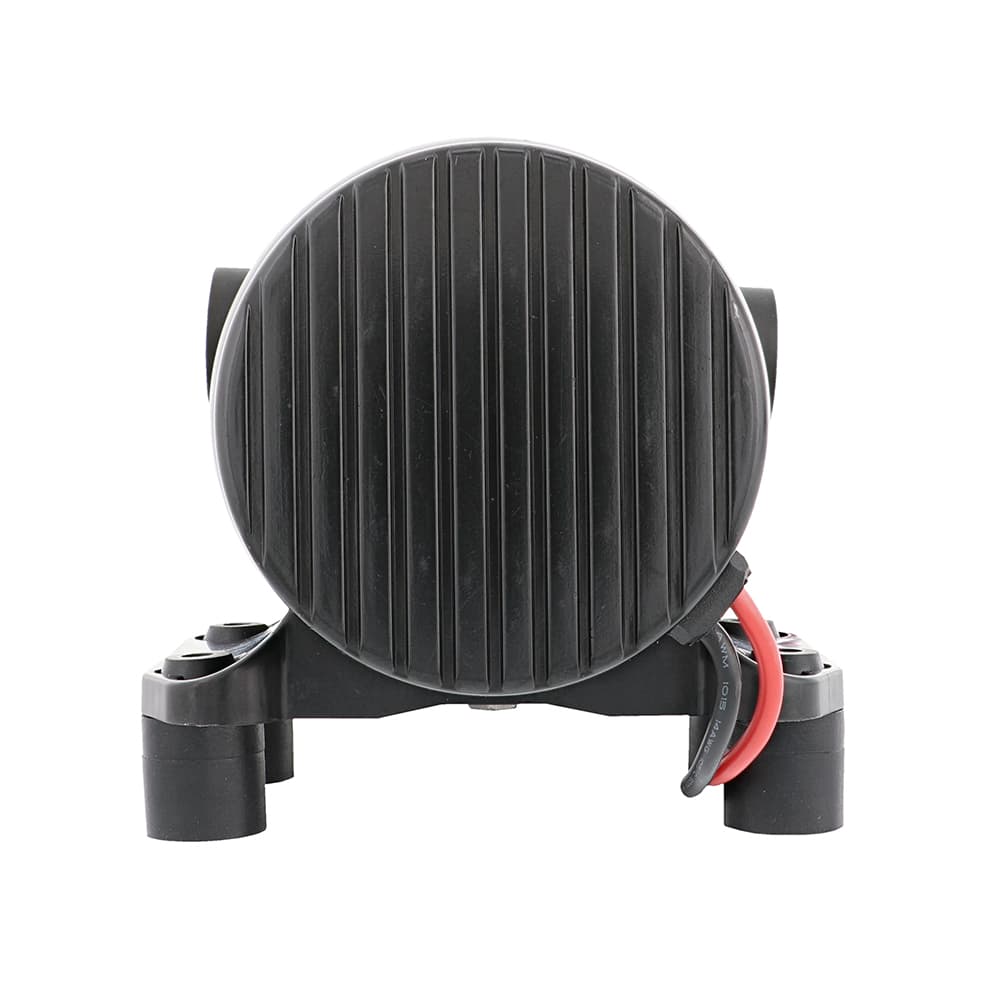

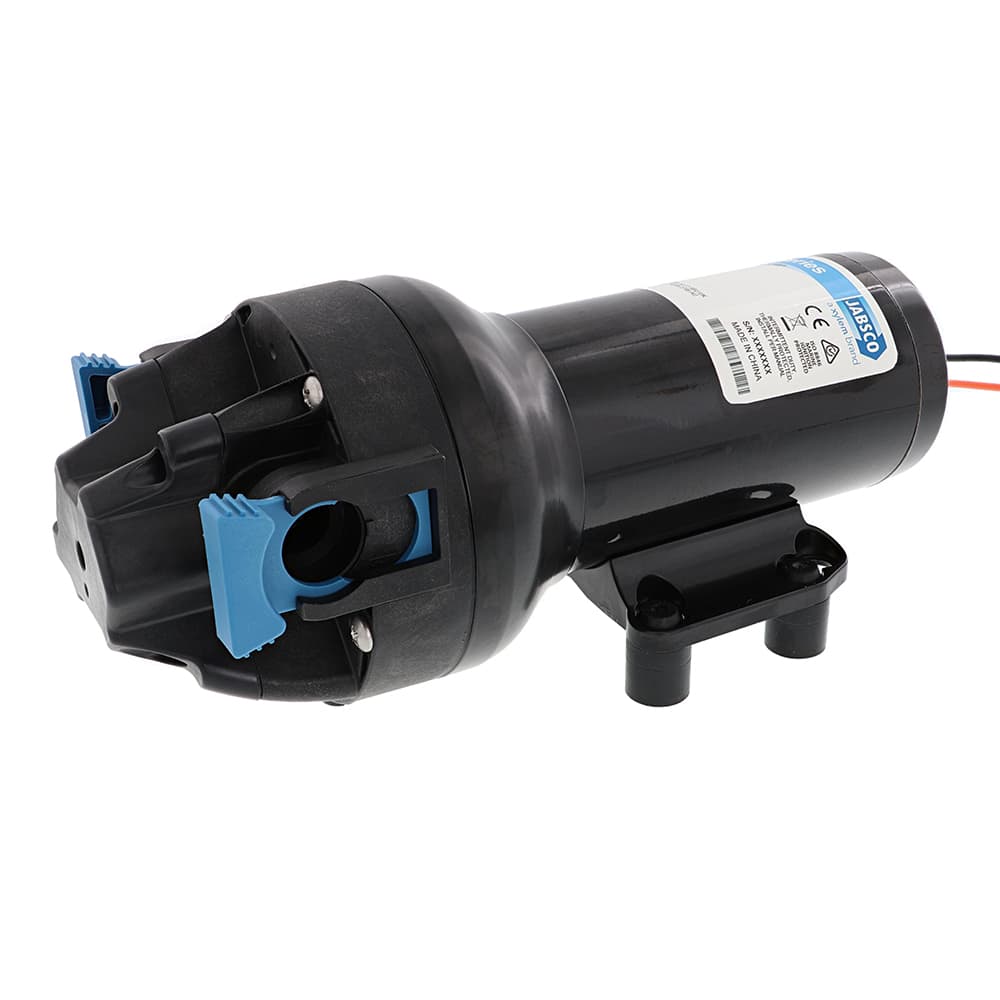

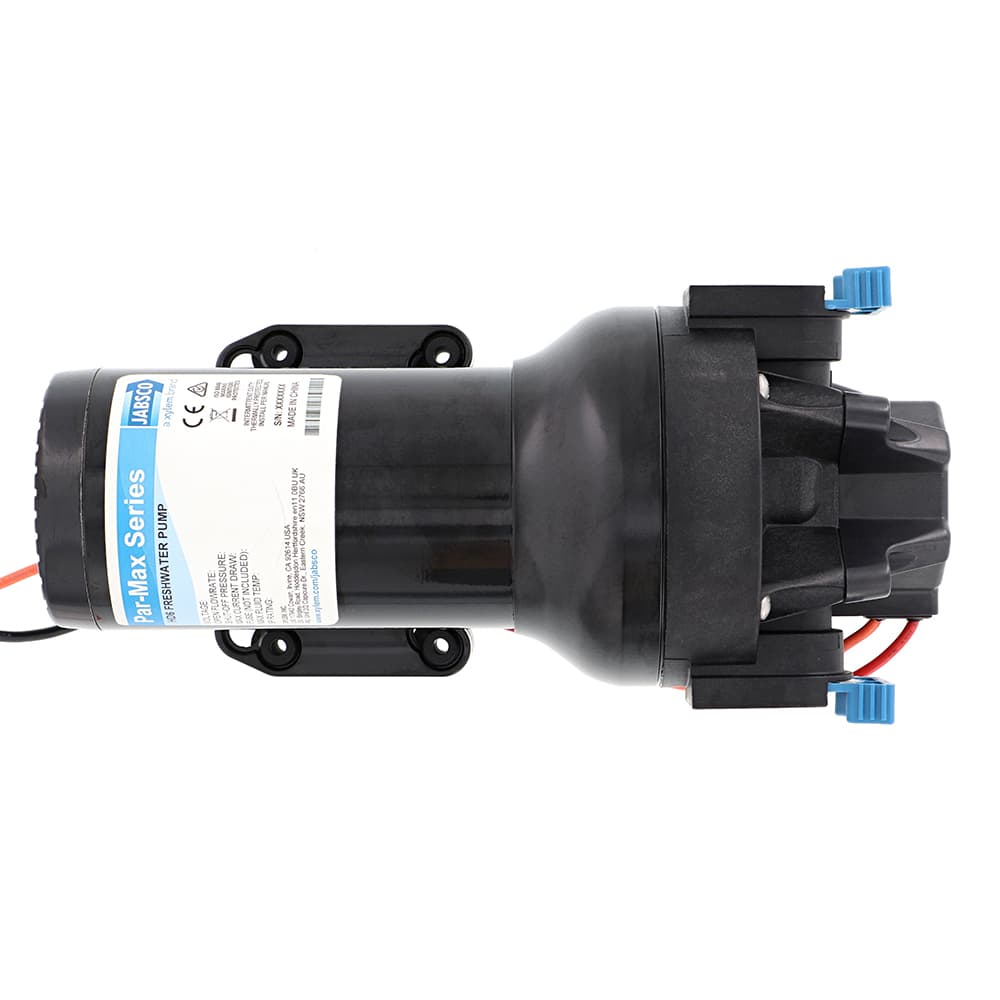

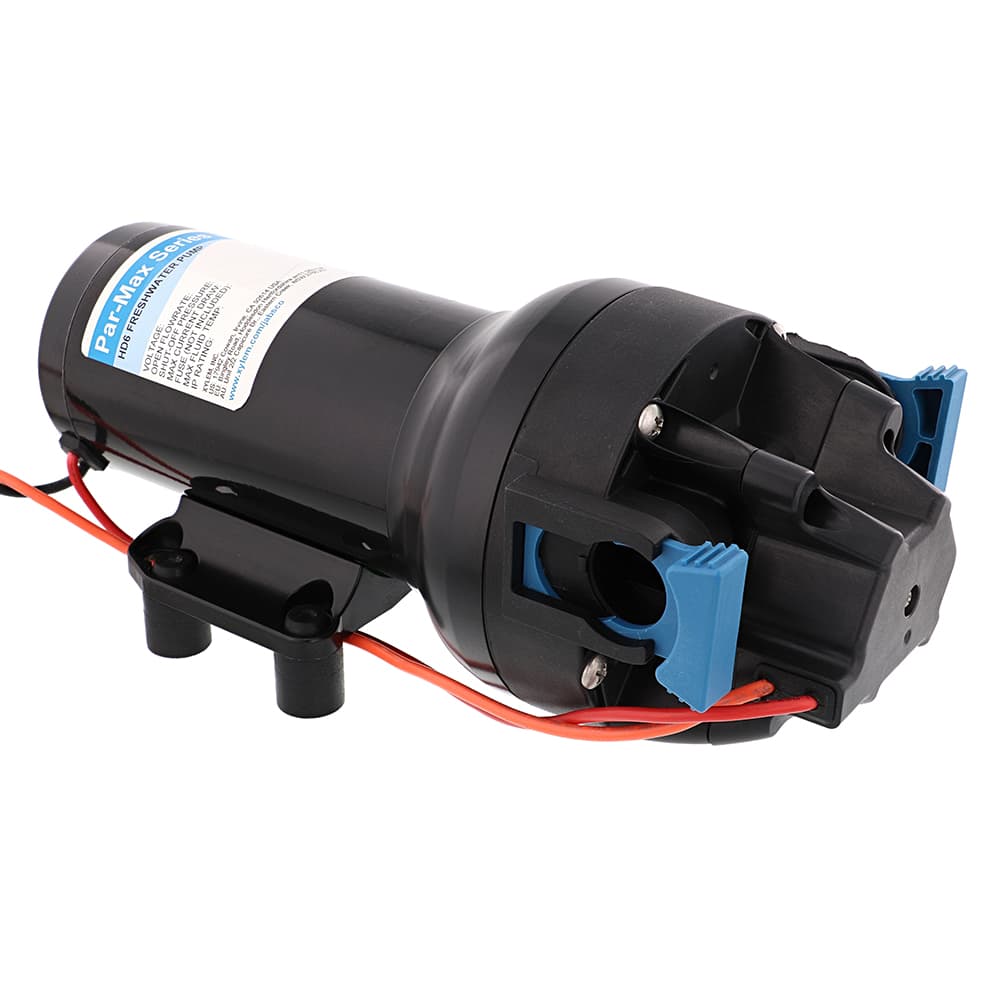

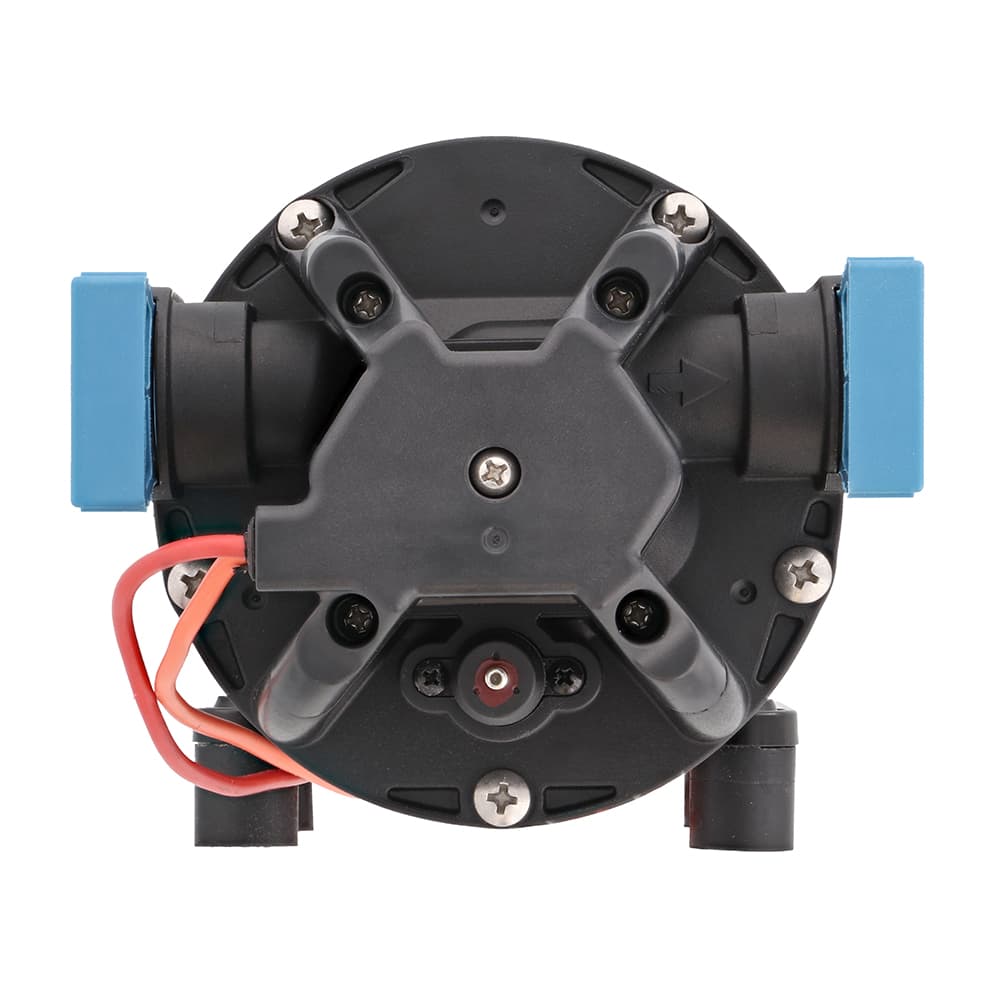

Jabsco Par-Max HD6 Water Pressure Pump P601J-215S-3A 12V 6 GPM 40 PSI

Brand new in original packaging.

• Jabsco Par-Max HD6 12V diaphragm water pressure pump, MPN P601J-215S-3A, UPC 671880841979
• Delivers up to 6 GPM open flow (22.7 LPM) with a 40 PSI pressure switch cut-off
• 5-chamber diaphragm design with TENV permanent magnet motor, noise-dampening baseplate, and thermal motor protection
• Self-priming up to 7 ft dry prime; runs dry without damage; internal bypass for smoother flow
• Fitted with 2 x 3/4 in straight hosebarb ports and includes a 90° quick-connect 40-mesh strainer
• IPX6 rated; CE, RCM, and ISO 8846 ignition protected for marine use
• Draws up to 15 amps at 40 PSI; requires a 25-amp fuse (not included)
• Made in China

Specifications

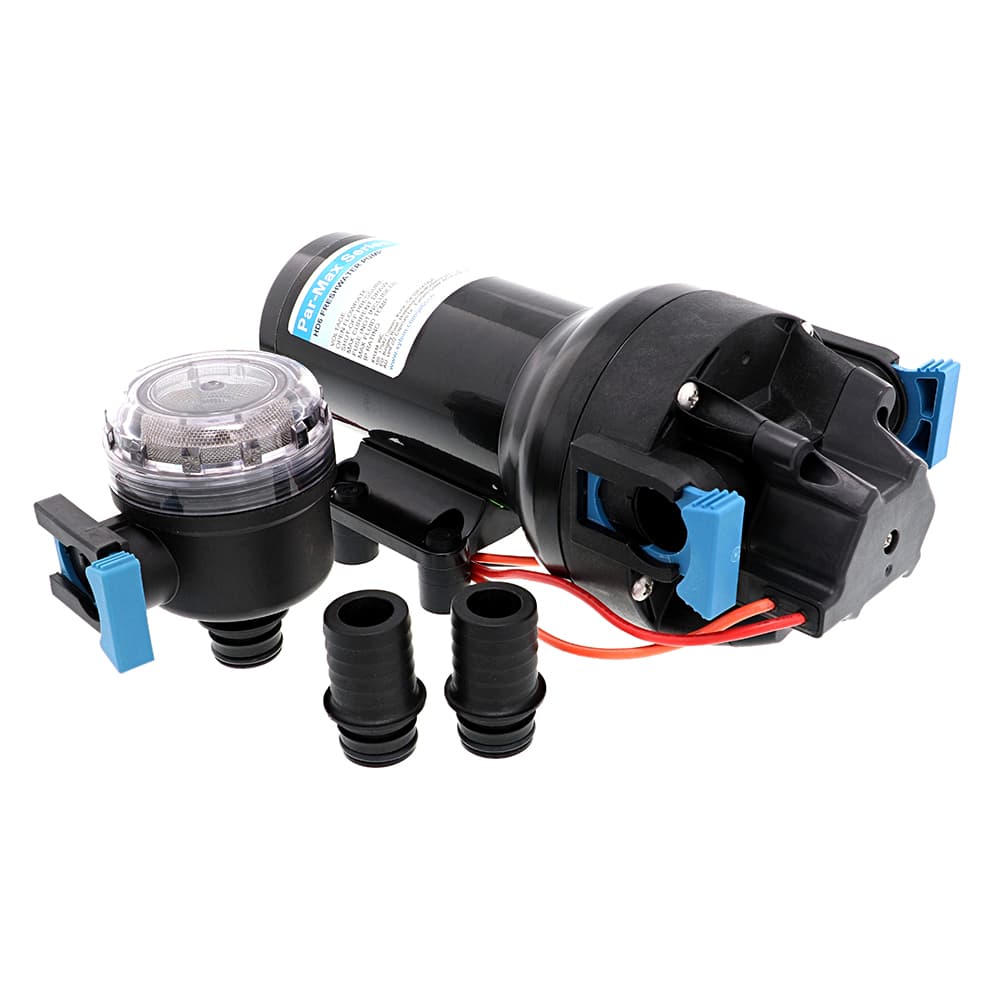

What's Included

• Pump Unit: Par-Max HD6 12V 6GPM 40PSI (23LPM 2.8BAR)
• Port Fittings: 2 x 3/4 in (19mm) Straight Hosebarb
• Strainer: 90 Degree Quick Connect, 40 mesh
• Installation/Operation Manual (IOM, PN 81000475)
