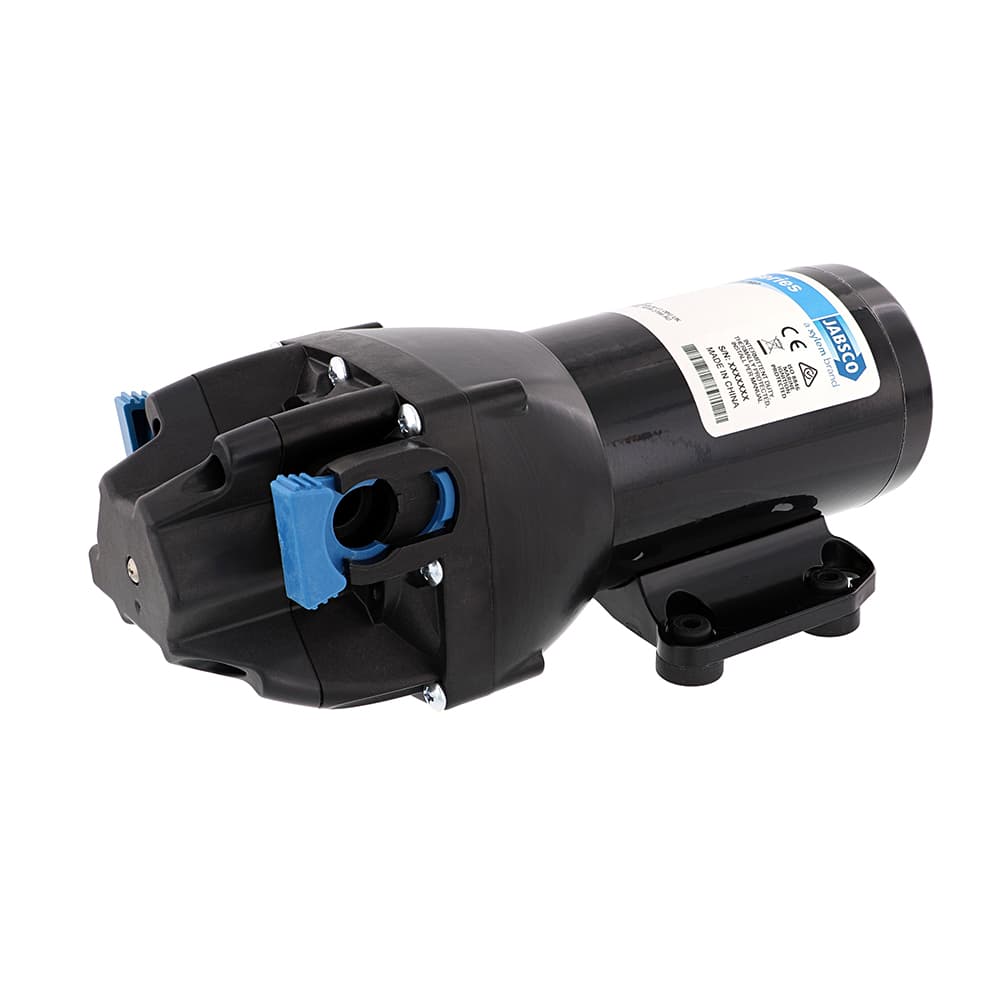

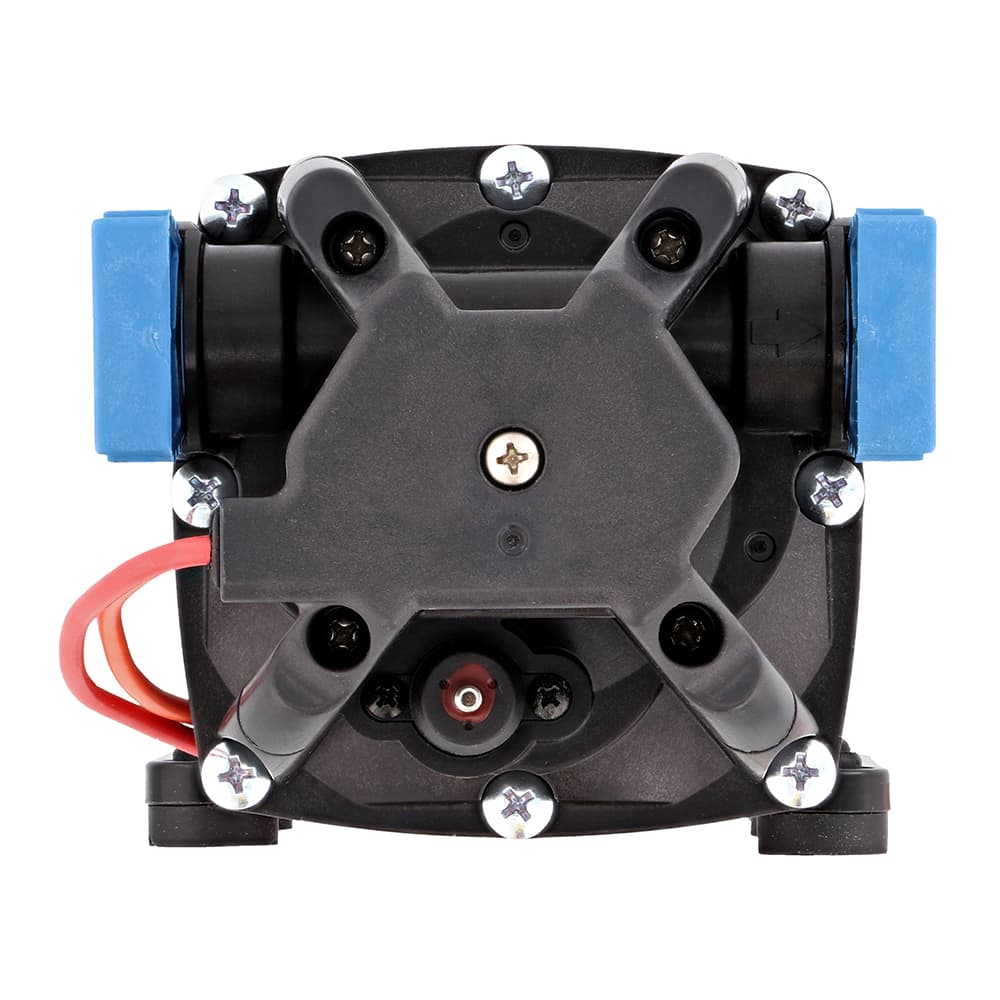

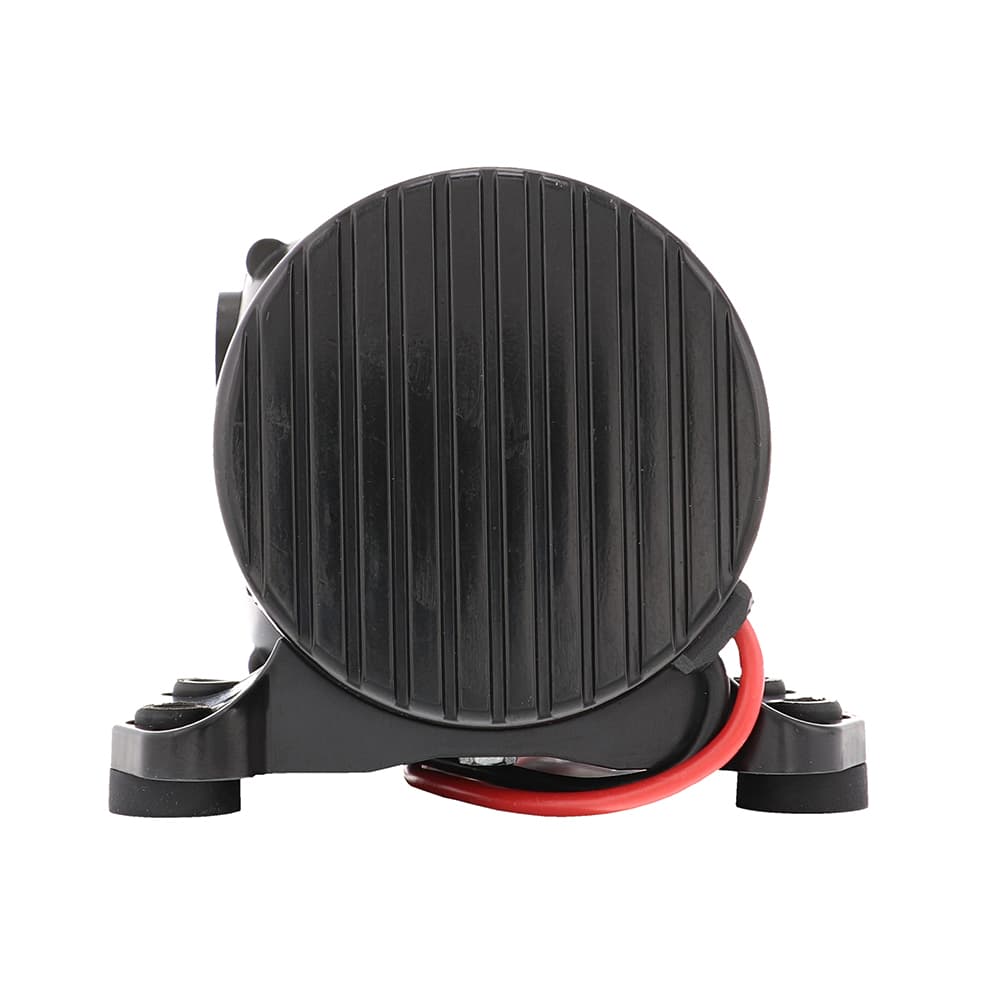

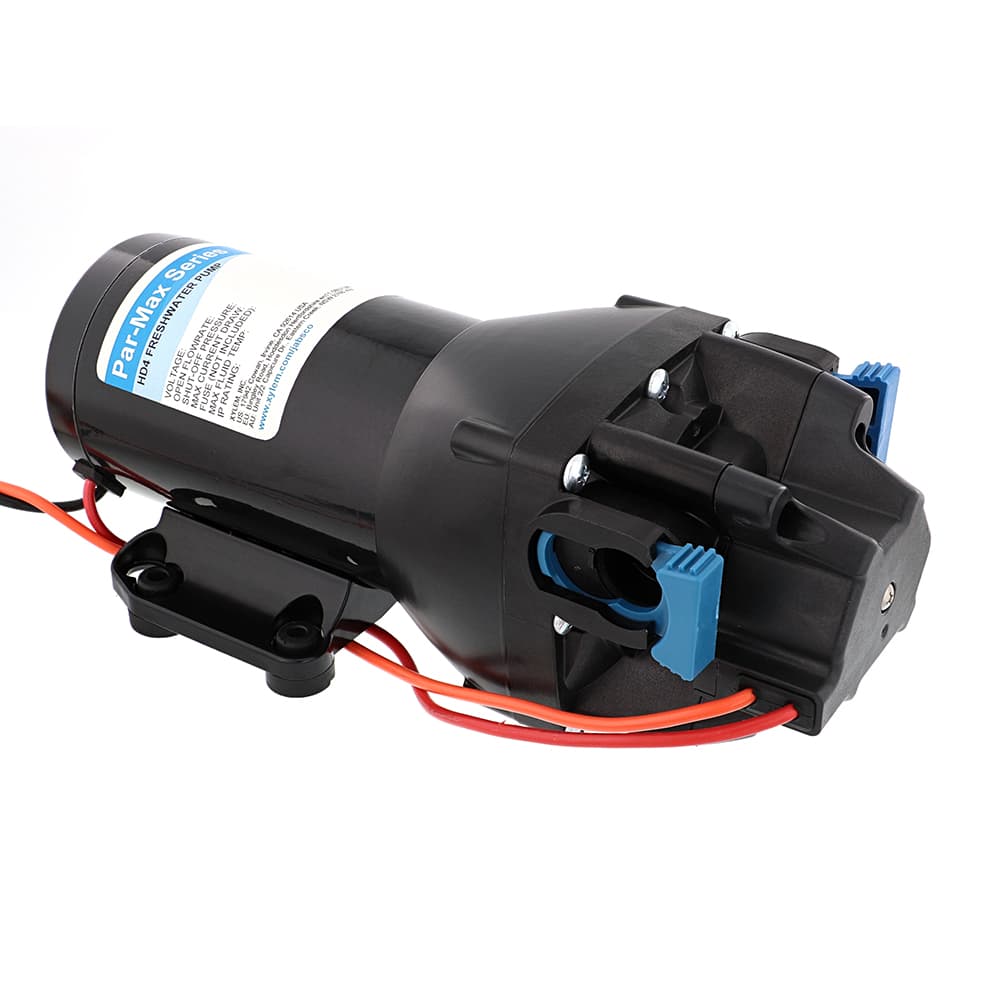

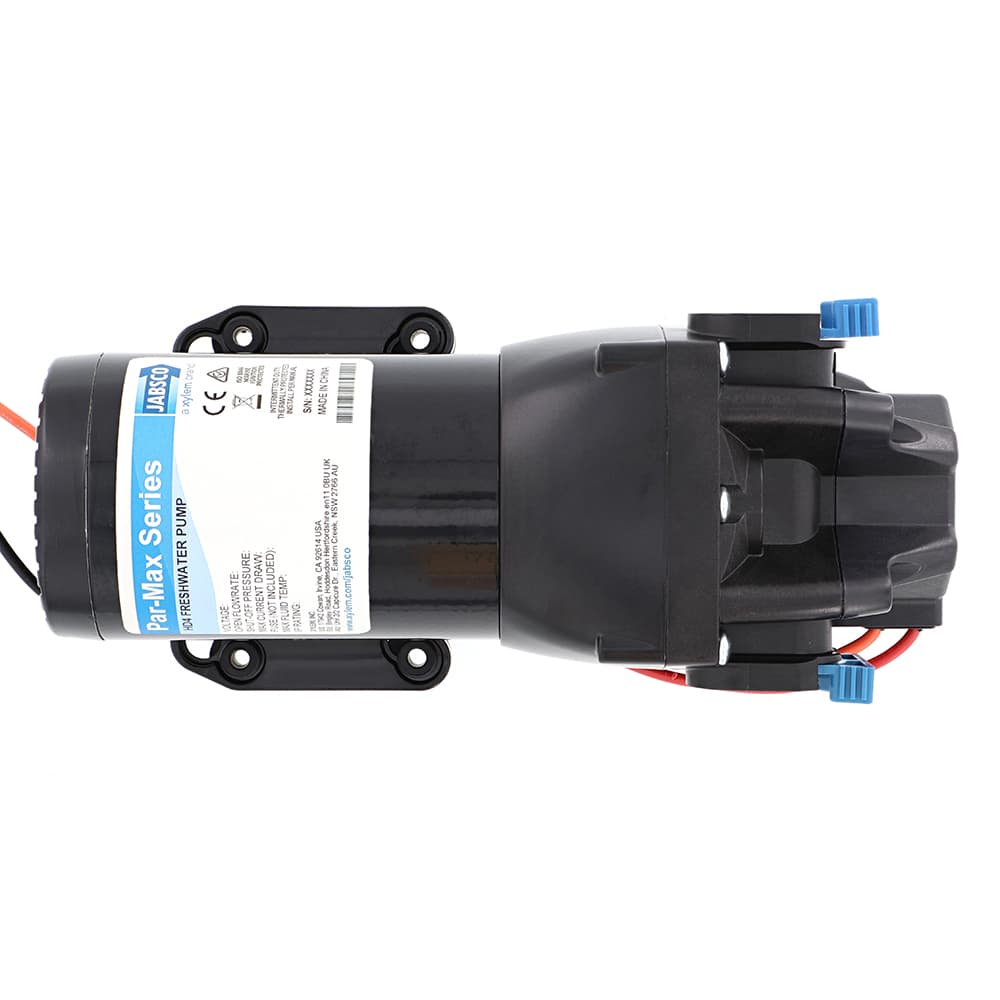

Jabsco Par-Max HD4 Water Pressure Pump Q401J-118S-3A 4 GPM 60 PSI
$213.99
In stock - ships same or next business dayEstimated delivery: Tue, Sep 8 – Fri, Sep 11From the entry
Brand new in original packaging.
- Jabsco Par-Max HD4 12V diaphragm pump delivers 4 GPM (240 GPH) open flow at a 60 PSI pressure-switch cutoff.
- 4-chamber diaphragm design with quick-connect ports, internal bypass, and noise-dampening baseplate for smooth, quiet operation.
- Self-primes up to 8 ft dry lift and is run-dry capable without damage, ideal for marine freshwater delivery systems.
- IPX6-rated and ISO 8846 ignition-protected housing built for the marine environment.
- Includes an inline 40-mesh strainer and 12-inch stripped 14 AWG leads for easy wiring.
- TENV permanent-magnet motor with thermal overload protection; cast aluminum motor housing with coated steel.
- Manufactured in China; UPC 671880841870, MPN Q401J-118S-3A, replaces Jabsco 82400-0092.
Specifications
| Brand | Jabsco |
| MPN | Q401J-118S-3A |
| UPC | 671880841870 |
| Product Line | Par-Max HD4 |
| Maximum Working Pressure | 60 psi (4.1 bar) |
| Open Flow Rate | 4 GPM (15.1 LPM) / 240 GPH |
| Voltage | 12 VDC (range 9-13.6 VDC) |
| Weight (pump only) | 5.6 lb (2.5 kg) |
| Country of Origin | China |
| Fluid Temperature Range | 32°F to 140°F (0°C to 60°C) |
| Self-Priming Capability | Up to 8 ft (2.4 m) dry prime |
| IP Rating | IPX6 |
| Max Current Draw / Fuse | 11.5 A @ 60 PSI / 15 A fuse (not included) |
What's Included
- Par-Max HD4 12V pump unit
- 2 x 1/2 in straight hosebarb port fittings
- Inline 40-mesh strainer
- Installation & Operation Manual (IOM)
Shipping & Returns
Fast, free shipping from our US warehouse.
Returns accepted per our store return policy.
Specifications
| Type | Water Pressure Booster Pump |
|---|---|
| Brand | Jabsco |
| Model | Par-Max HD4 |
| Voltage | 12V |
| Item Weight | 5.6 lb |
| Country of Origin | China |
| Maximum Flow Rate | 4 GPM |
| Maximum Working Pressure | 60 psi |
| Maximum Working Temperature | 140 °F |
| Minimum Working Temperature | 32 °F |
