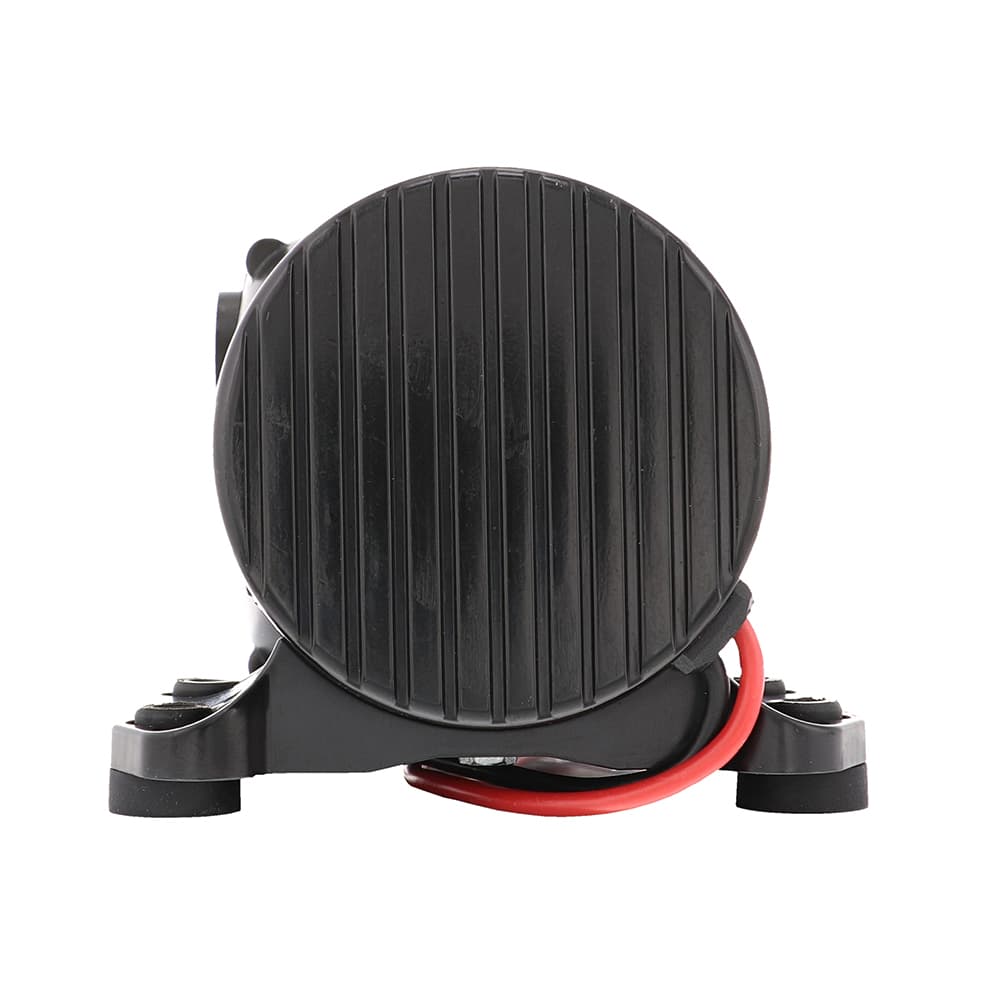

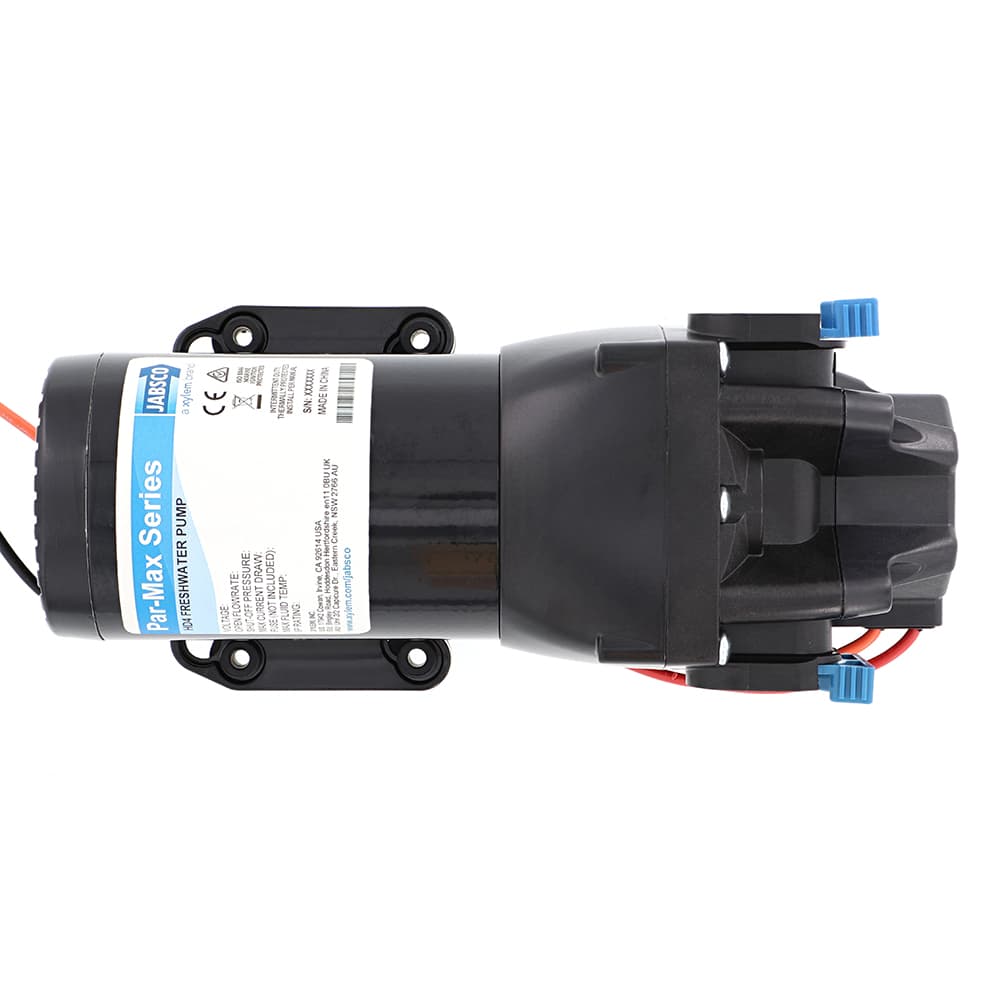

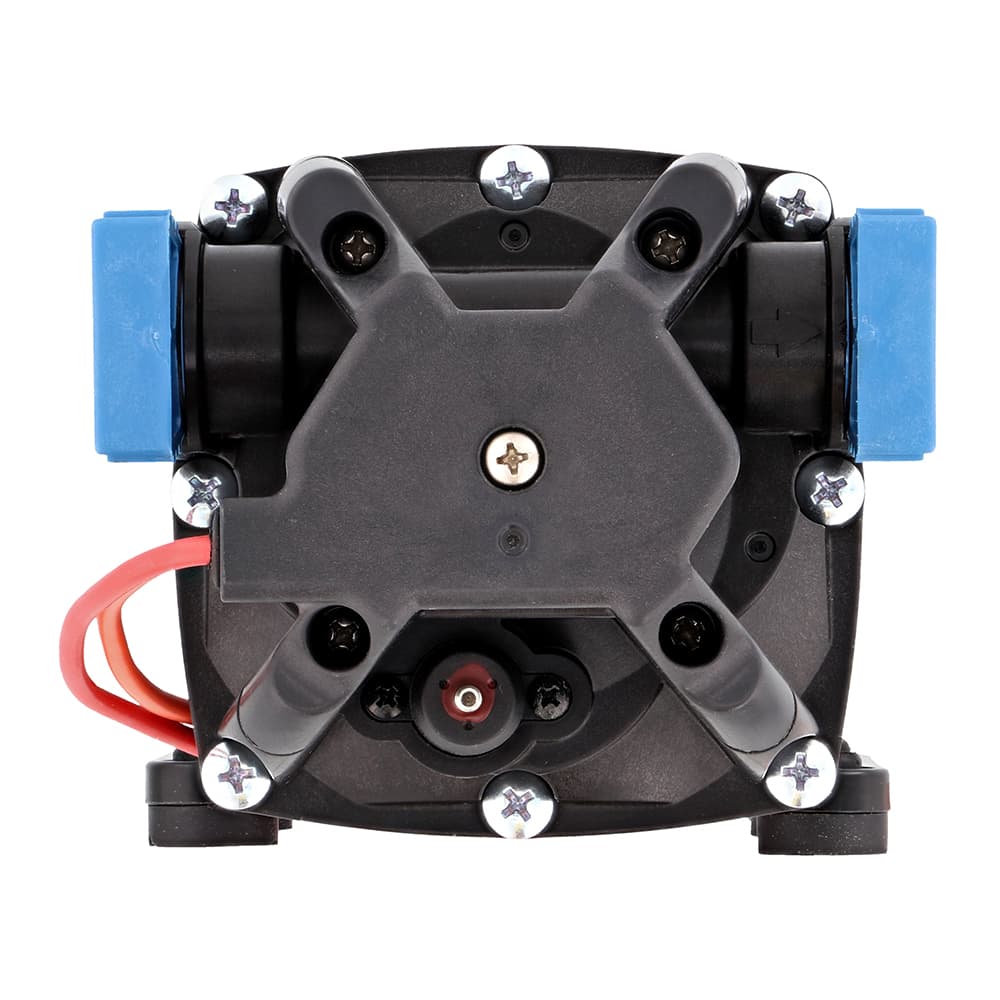

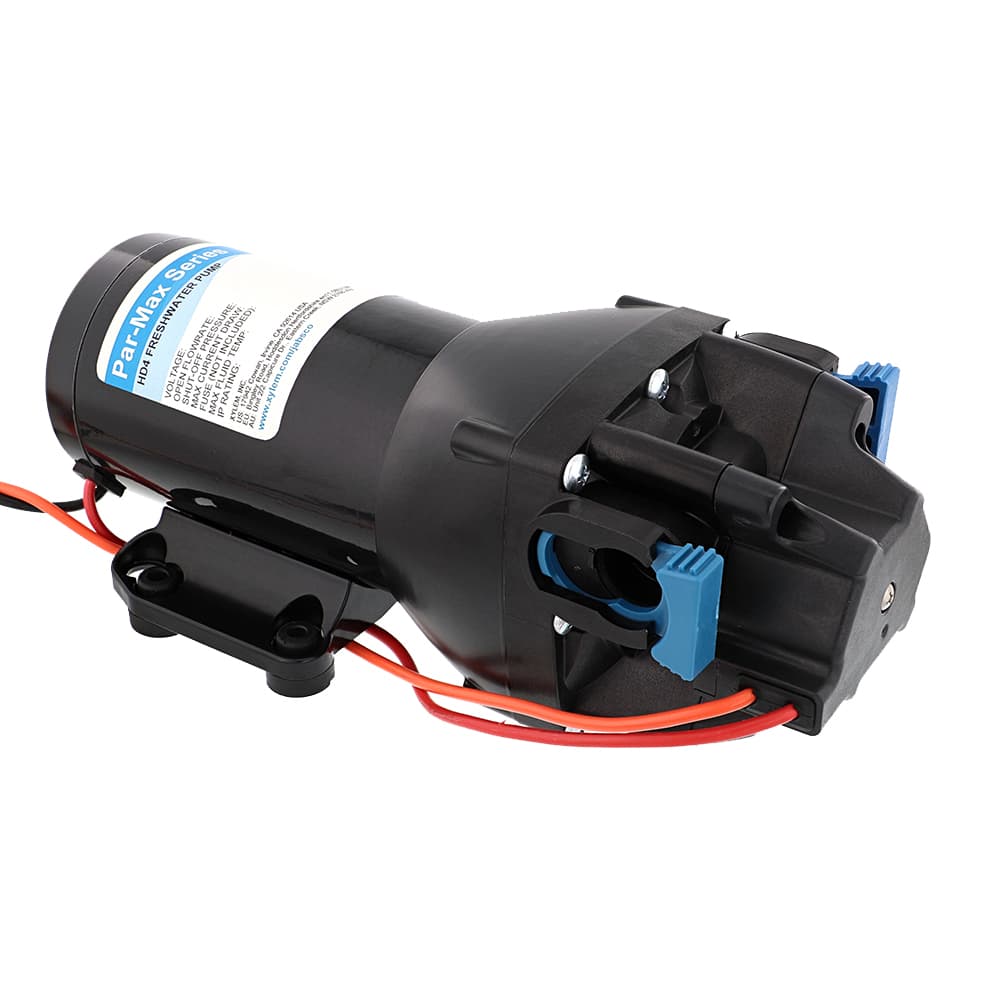

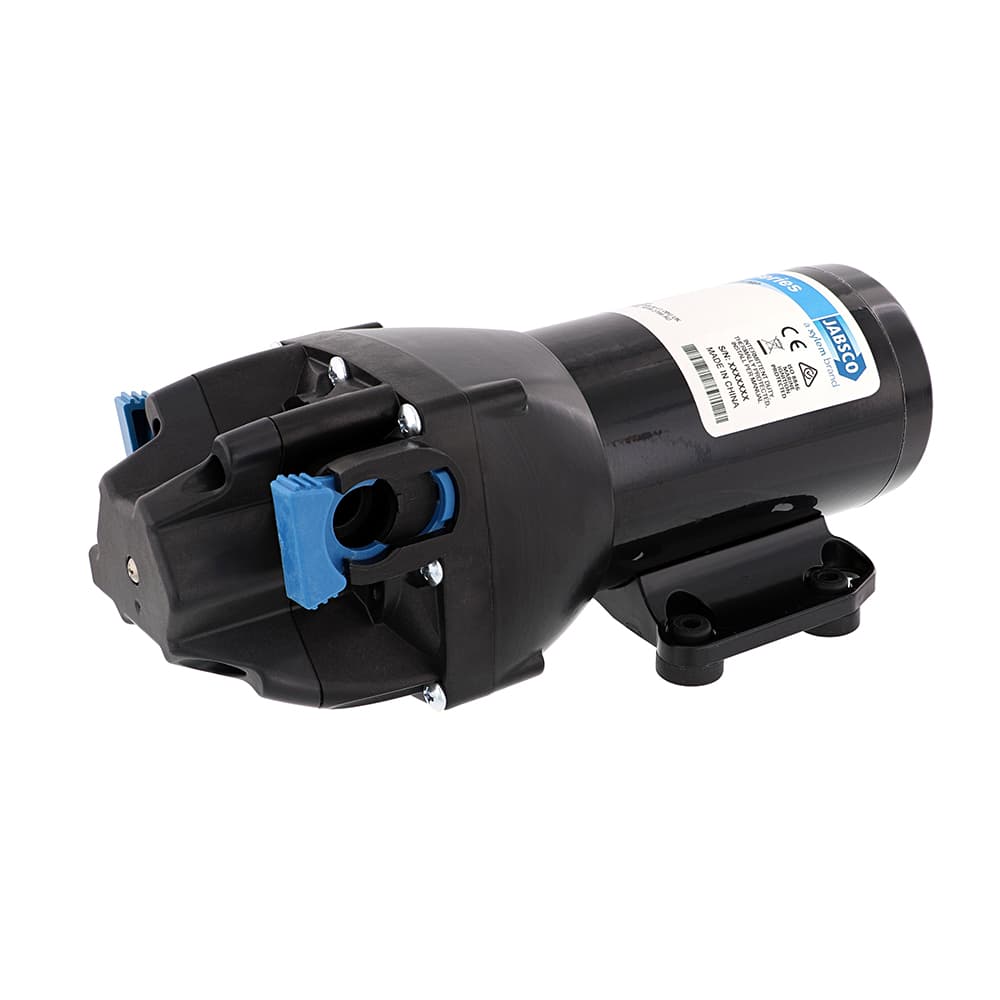

Jabsco Par-Max HD4 Marine Water Pressure Pump Q402J-118S-3A 24V 4 GPM 60 PSI
$265.99
Only 8 left - ships same or next business dayEstimated delivery: Thu, Oct 29 – Tue, Nov 3From the entry
Brand new in original packaging.
- Genuine Jabsco Par-Max HD4 heavy duty diaphragm water pressure pump, MPN Q402J-118S-3A, UPC 671880841900
- 24V DC pump (18-27.2 VDC range) delivers up to 4 GPM open flow with a 60 PSI pressure switch cut-off
- Self-primes up to 8 ft dry lift and is safe to run dry without damage to the pump
- Internal bypass reduces cycling for smoother, quieter continuous flow
- 4-chamber diaphragm design with TENV permanent magnet motor, noise-dampening baseplate, and thermal motor overload protection
- IPX6 rated with 12" stripped 14 AWG leads; includes inline 40-mesh quick-connect strainer and two 1/2" hosebarb port fittings
- Ideal for marine freshwater pressure delivery systems on boats
Specifications
| Brand | Jabsco (a Xylem brand) |
| MPN | Q402J-118S-3A |
| UPC | 671880841900 |
| Product line | Par-Max HD Series (Par-Max HD4) |
| Nominal Voltage | 24 VDC (range 18-27.2 VDC) |
| Open Flow Rate | 4 GPM (15.1 LPM) |
| Pressure Switch Cut-Off / Max Operating Pressure | 60 PSI (4.1 BAR) |
| Pump Weight (OEM, pump only) | 5.6 lbs (2.5 kg) |
| Self-Priming Capability | Up to 8 ft (2.4 m) dry prime |
| Run-Dry Capable | Yes |
| Design | 4 Chamber Diaphragm, Quick Connect Ports, TENV Permanent Magnet Motor, Thermal Motor Protection |
| IP Rating | IPX6 |
| Country of Origin | China |
| Contents | Pump unit, 2 x 1/2" straight hosebarb fittings, inline 40-mesh strainer, IOM manual |

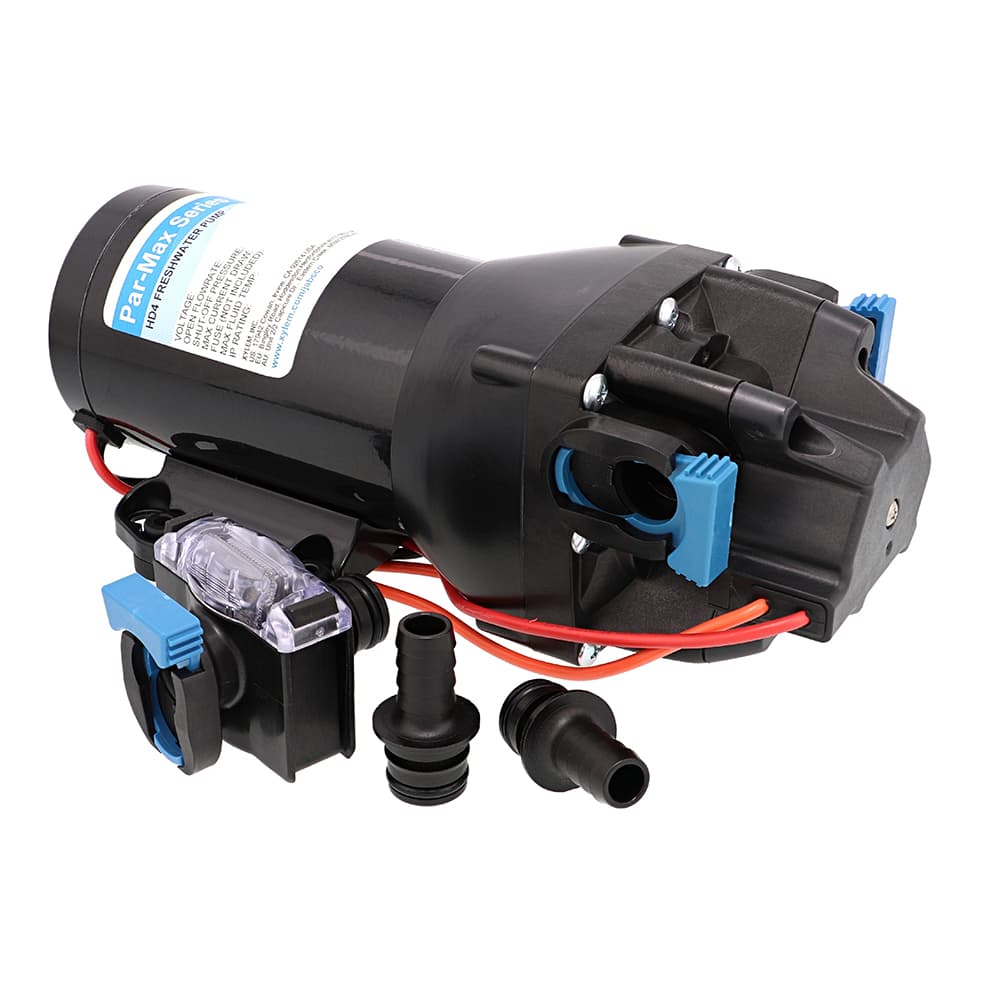

What's Included
- Par-Max HD4 24V 4 GPM 60 PSI pump unit
- 2 x 1/2" (13mm) straight hosebarb port fittings
- Inline quick-connect strainer, 40 mesh
- Installation/operation manual (IOM)
Shipping & Returns
Fast, free shipping from our US warehouse.
Returns accepted per our store return policy.
Specifications
| Type | Water Pressure Booster Pump |
|---|---|
| Brand | Jabsco |
| Model | Par-Max HD4 |
| Item Weight | 5.6 lb |
| Maximum Flow Rate | 4 GPM |
| Maximum Working Pressure | 60 psi |
