Jabsco Par-Max HD3 Water Pressure Pump Q301J-115S-3A 12V 3 GPM 40 PSI
Shop / Tools & WorkshopJabsco

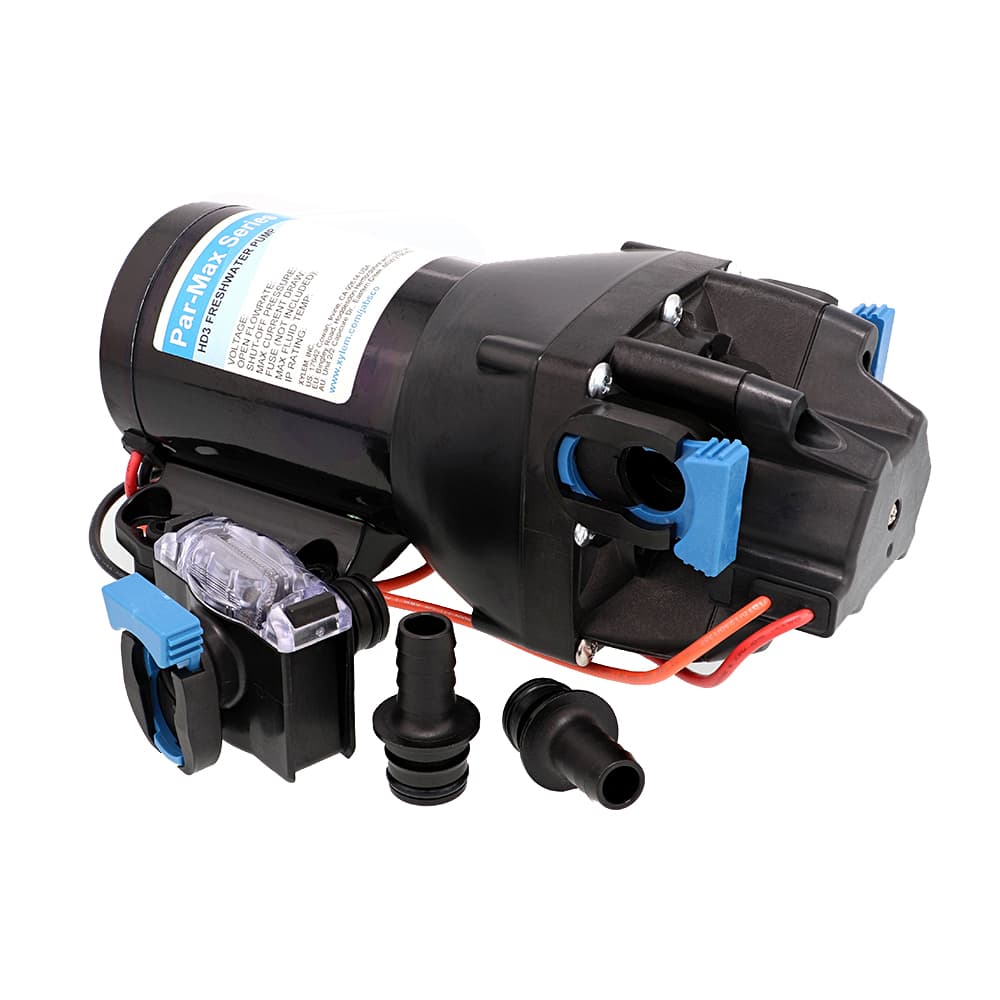

Jabsco Par-Max HD3 Water Pressure Pump Q301J-115S-3A 12V 3 GPM 40 PSI

$183.99
In stock - ships same or next business dayEstimated delivery: Thu, Oct 29 – Tue, Nov 3
1
SKU 86620
UPC 671880841832
Free shipping
180-day guarantee · U.S. warehouse
Earn $9.20 store credit

From the entry

Brand new in original packaging.

  • Genuine Jabsco Par-Max HD3 12V marine freshwater pressure pump (MPN Q301J-115S-3A, UPC 671880841832)
  • Delivers up to 3 GPM open flow with a 40 PSI pressure switch cut-off for consistent on-demand water pressure
  • Self-priming up to 8 ft dry prime and fully run-dry capable without damage
  • Heavy-duty coated TENV motor with integrated sealed pressure switch and noise-dampening baseplate
  • Includes 2 x 1/2 in straight hosebarb port fittings and an inline 40-mesh strainer
  • ISO 8846 ignition protected and IPX6 rated for demanding marine environments
  • Operates on 12 VDC (9-13.6V range), draws up to 8 amps at 40 PSI, requires a 15A fuse (not included)

Specifications

BrandJabsco (Xylem)
MPNQ301J-115S-3A
UPC671880841832
Product LinePar-Max HD3 (Freshwater Delivery Pump)
Voltage12 VDC (9-13.6 VDC range)
Open Flow Rate3 GPM (11.3 LPM)
Max Pressure / Cut-off40 PSI (2.8 BAR)
Max Current Draw8 Amps @ 40 PSI
Fuse Size15 Amps (not included)
Self-PrimingUp to 8 ft (2.4 m) dry prime
Run-Dry CapableYes
Port Fittings2 x 1/2 in Straight Hosebarb
StrainerInline Quick Connect, 40 mesh
IP RatingIPX6
Product Weight5.1 lbs (2.3 kg)
Country of OriginChina

What's Included

  • Pump Unit (Par-Max HD3 12V 3GPM 40PSI)
  • Port Fittings: 2 x 1/2 in Straight Hosebarb
  • Inline Strainer, 40 mesh
  • Installation & Operation Manual (IOM)

Shipping & Returns

Fast, free shipping from our US warehouse.

Returns accepted per our store return policy.

Specifications

TypeWater Pressure Booster Pump
BrandJabsco
ModelPar-Max HD3
Item Weight5.1 lb
Maximum Flow Rate3 GPM
Maximum Working Pressure40 psi
