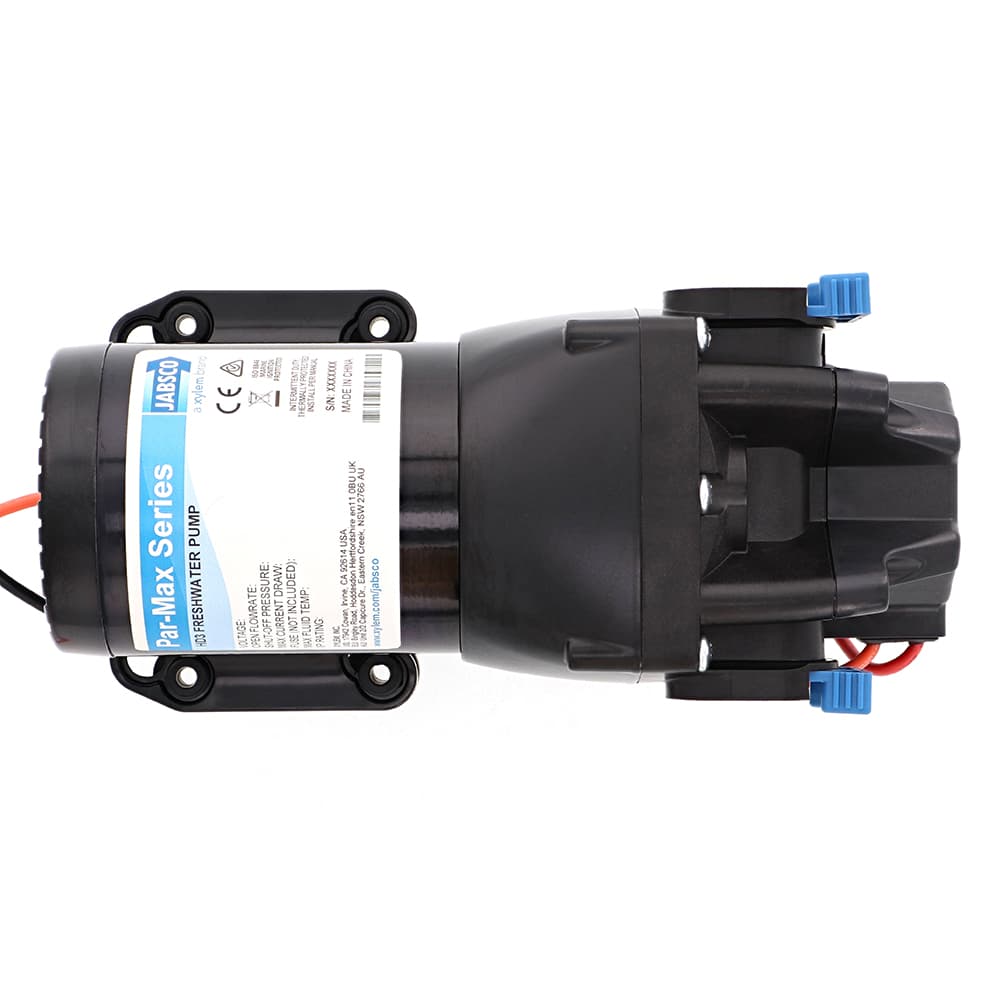

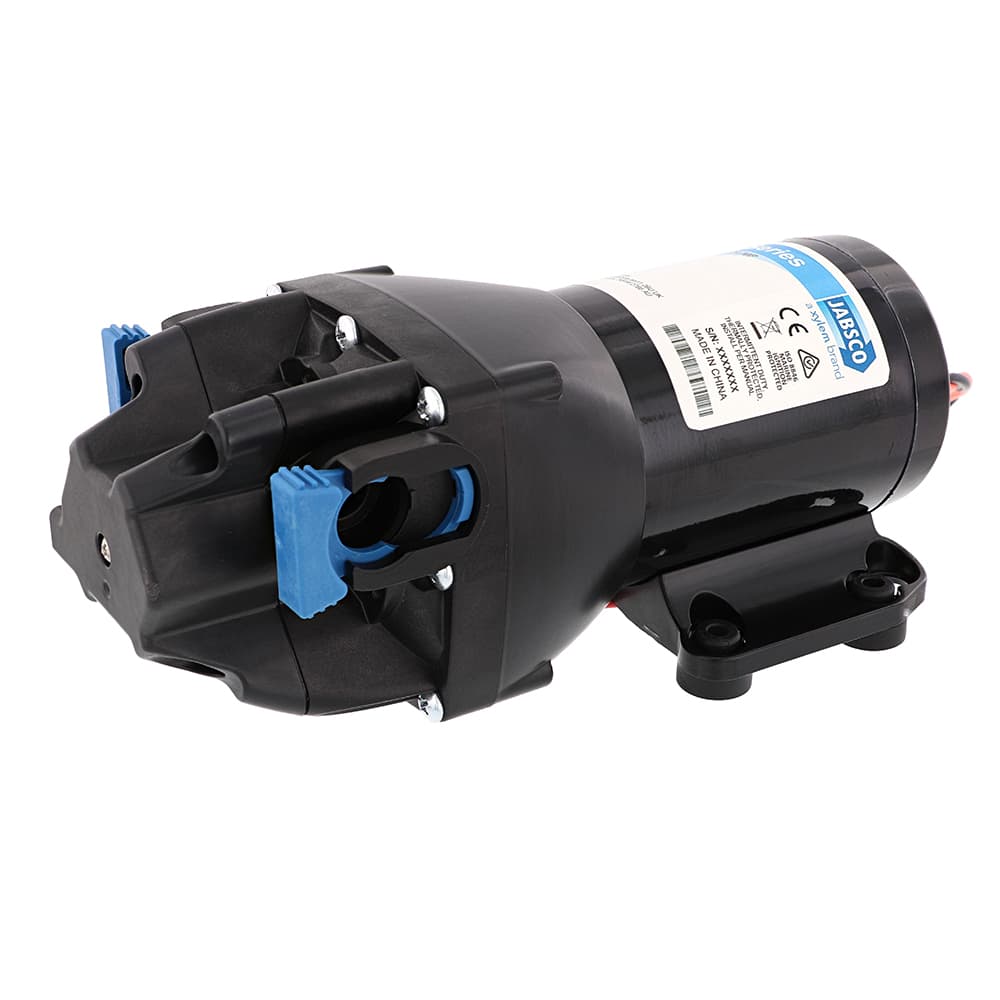

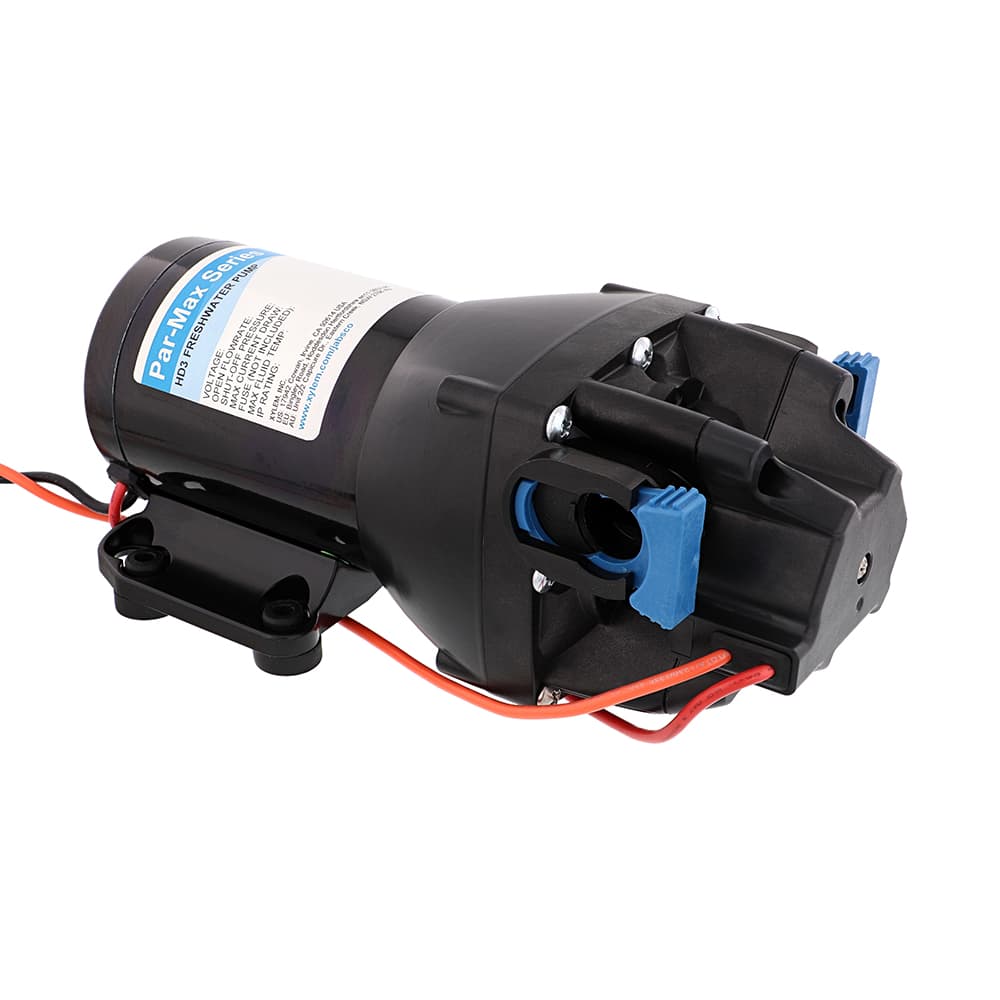

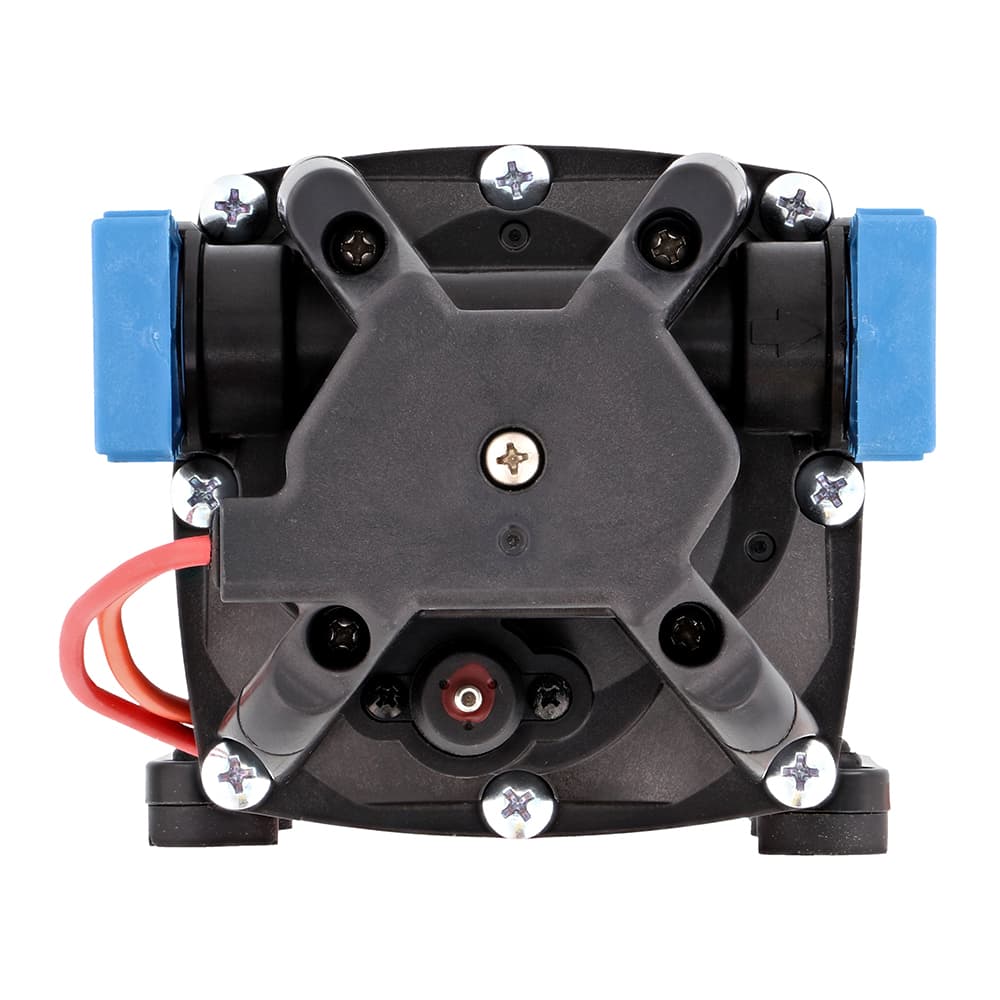

Name: Jabsco Par-Max HD3 Heavy Duty Water Pressure Pump Q301J-118S-3A 12V 3 GPM 60 PSI
Brand: Jabsco
SKU: 86621
Price: 234.99 USD
Availability: InStock

From the entry

Brand new in original packaging.

Jabsco Par-Max HD3 heavy-duty 12V DC diaphragm freshwater pressure pump delivering 3 GPM open flow and a 60 PSI pressure switch cut-off.
Self-priming up to 8 ft (2.4 m) dry lift and capable of running dry without damage, thanks to a TENV permanent-magnet motor with thermal overload protection.

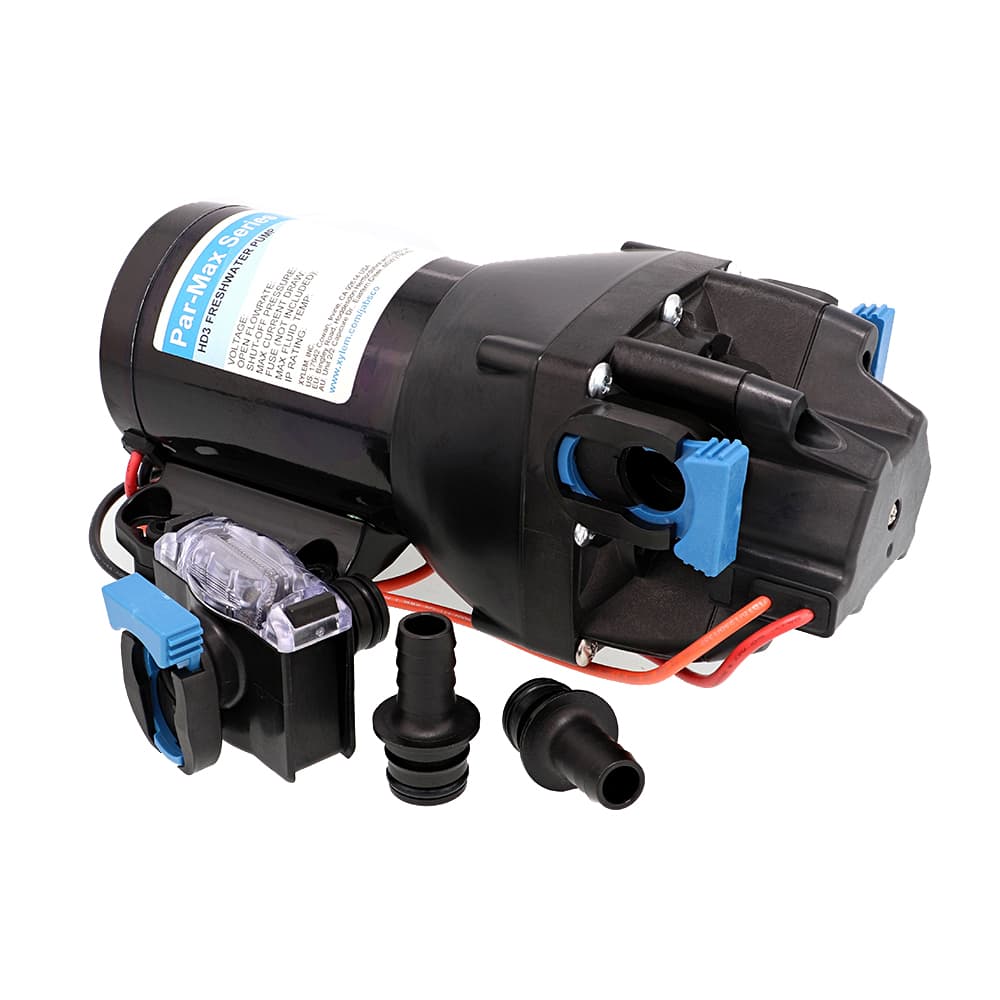

Includes two 1/2" quick-connect straight hose barb fittings and an inline 40-mesh strainer for easy installation, plus an installation/operation manual.
Rugged construction with a cast aluminum lower housing, fiber-reinforced polypropylene upper housing, Santoprene diaphragm, and EPDM seals for long service life.
Ignition protected and IPX6 rated, certified to CE, RCM, and ISO 8846 marine standards.

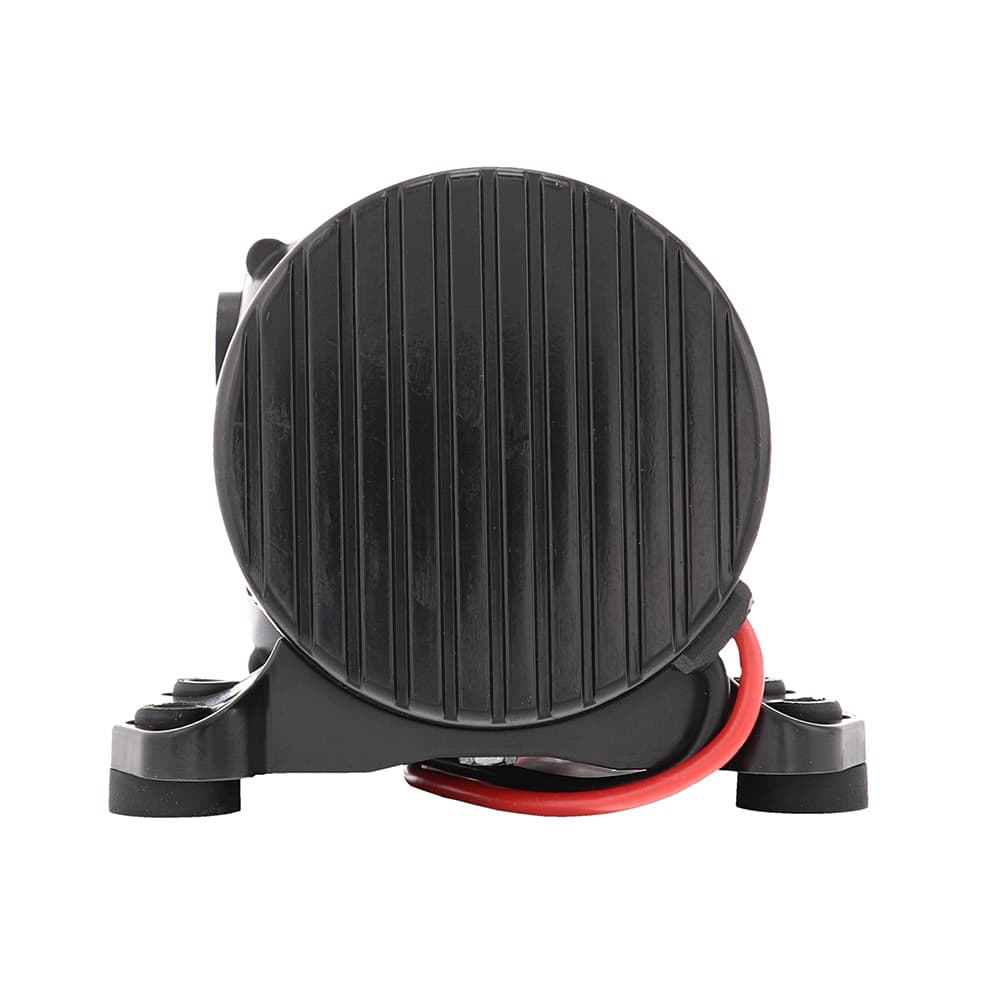

Internal bypass module smooths flow and reduces pump cycling; quiet operation via rubber-footed baseplate.
Manufactured in China; UPC 671880841849 matches OEM Jabsco/Xylem datasheet.

Specifications

Brand	Jabsco (a Xylem brand)
Model/MPN	Q301J-118S-3A
UPC	671880841849
Open Flow Rate	3 GPM (11.3 LPM)
Pressure Switch Cut-off	60 PSI (4.1 BAR)
Voltage	12 VDC (range 9-13.6 VDC)
Max Current Draw	9 Amps @ 60 PSI
Self-Priming Height	Up to 8 ft (2.4 m) dry prime
Pump Weight	5.1 lbs (2.3 kg)
Materials	Fiber-reinforced polypropylene upper housing, cast aluminum lower housing, Santoprene diaphragm, EPDM seals
Certifications	CE, RCM, ISO 8846, ignition protected, IPX6
Country of Origin	China
Included Contents	Pump unit, 2x 1/2" quick-connect straight hose barb fittings, inline 40-mesh strainer, IOM manual
