Jabsco HotShot 3 Washdown Pump 32305-5012-3A 12V 3 GPM 50 PSI
$173.99
Only 8 left - ships same or next business dayEstimated delivery: Thu, Oct 29 – Tue, Nov 3From the entry
Brand new in original packaging.
- 12V diaphragm washdown pump delivering 3 GPM (11 LPM) open flow rate
- Shut-off pressure of 50 PSI (3.4 bar) for strong washdown spray
- Draws up to 7.5A max current; recommended fuse size is 15A
- Self-priming to 2.1 m (7 ft) dry lift and can run dry without damage
- Compact 3-chamber diaphragm design with integrated, sealed pressure switch for on-demand operation
- Includes inline 40-mesh quick-connect strainer and multiple port fittings (1/2" & 3/4" hosebarb, 3/4" GHT)
- Corrosion-resistant plastic housing with vibration-dampening feet for quiet operation
Specifications
| Brand | Jabsco (Xylem brand) |
| MPN | 32305-5012-3A |
| UPC | 671880841818 |
| Voltage | 12 VDC |
| Open Flow Rate | 3 GPM (11 LPM) |
| Shut-off Pressure | 50 PSI (3.4 bar) |
| Max Current Draw | 7.5 A |
| Recommended Fuse Size | 15 A |
| Self-Priming Dry Lift | 2.1 m (7 ft) |
| Pump Design | 3-chamber diaphragm pump, sealed motor, plastic housing |
| Port Fittings | 2x 1/2" hosebarb, 2x 3/4" hosebarb, 1x 3/4" GHT adapter |
| Strainer | Inline quick-connect, 40 mesh |
| Series | HotShot Series |

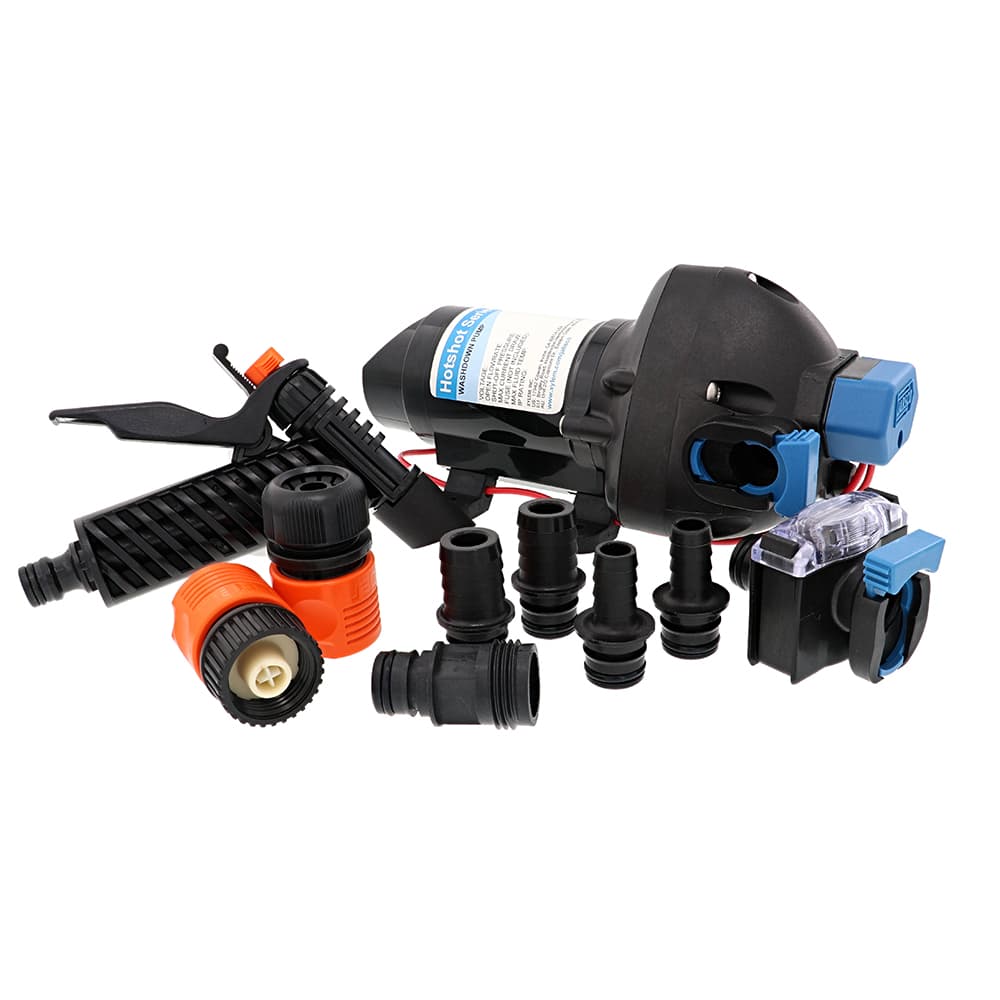

What's Included
- Jabsco HotShot 3 washdown pump (12V)
- Inline quick-connect 40-mesh strainer
- Port fittings: 2x 1/2" hosebarb, 2x 3/4" hosebarb, 1x 3/4" GHT adapter
- Quick-connect trigger nozzle
- Trigger-to-GHT and trigger-to-hose-crimp adapters
- Installation & operation manual (IOM)
Shipping & Returns
Fast, free shipping from our US warehouse.
Returns accepted per our store return policy.
Specifications
| Type | Washdown Pump |
|---|---|
| Brand | Jabsco |
| Model | HotShot 3 |
| Maximum Flow Rate | 3 GPM |
| Maximum Working Pressure | 50 psi |
