Name: Fireboy-Xintex Propane Fume Detector P-1B-R Single Channel Black Bezel
Brand: Fireboy-Xintex
SKU: 63834
Price: 347.99 USD
Availability: InStock

From the entry

Brand new in original packaging.

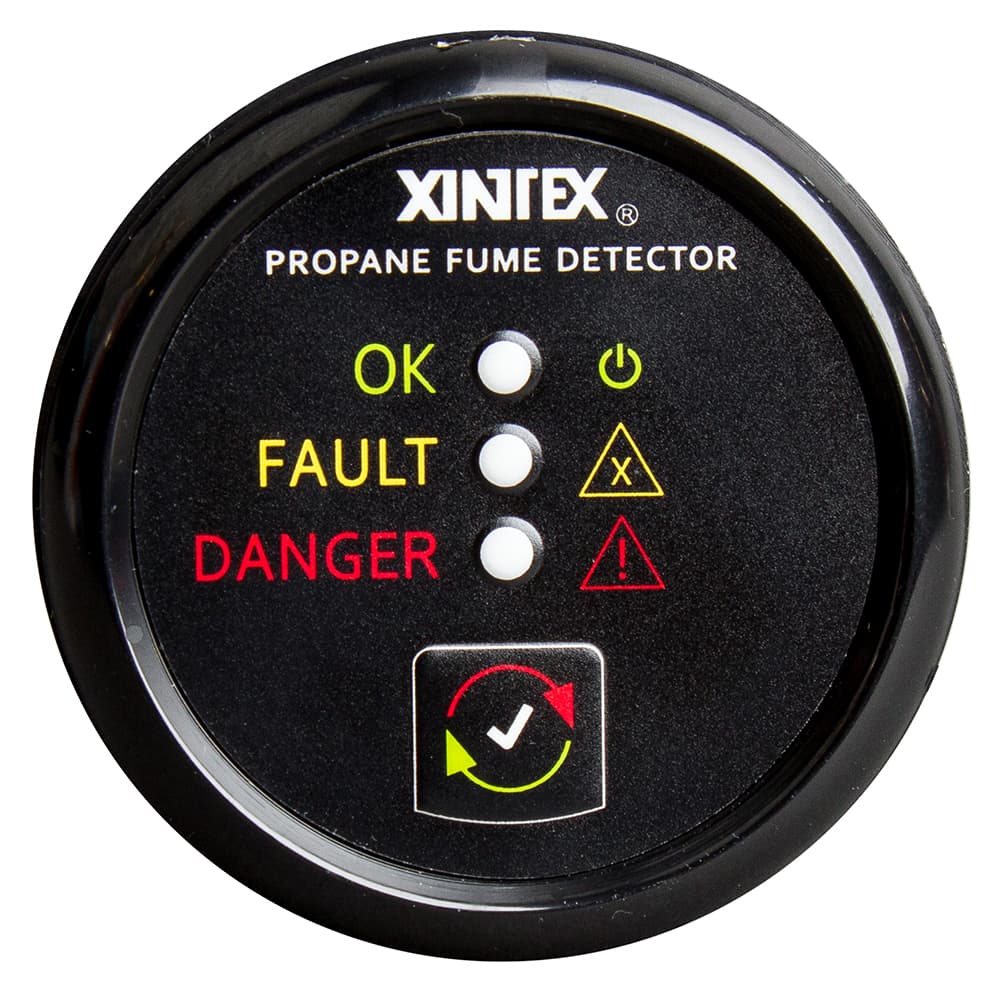

Marine-grade single-channel propane (LPG) fume detector with one remote sensor and black round bezel display.
Alarms when fumes reach 18-20% of the Lower Explosive Limit (LEL) for early warning of dangerous propane leaks.
Operates on 9-30 VDC with nominal 55 mA (max 95 mA) current draw, suitable for 12V/24V marine electrical systems.
Wide operating temperature range of -40°F to 185°F for harsh onboard environments.
Three-color status LEDs (green = normal, yellow = fault, red = alarm) paired with a loud ~68 dB alarm horn.
Silenceable alarm via Check/Reset button; horn reactivates after 30 seconds if the alarm condition persists.
Includes a 20 ft sensor cable (FS-X01) connecting to the FS-T01 propane sensor via quick-disconnect connectors.
This base P-1B-R model is detector-only (no solenoid valve); do not confuse with P-1BNV-R or P-1BS-R variants.

Specifications

Brand	Fireboy-Xintex (Xintex line, United Safety/Fireboy-Xintex)
MPN	P-1B-R
UPC	619749202639
Configuration	One channel, one sensor, black round bezel display, no solenoid valve
Alarm Threshold	Alarms at 18-20% of Lower Explosive Limit (LEL)
Operating Voltage	9-30 VDC
Nominal Current Draw	55 mA @ 12 VDC
Maximum Current Draw	95 mA @ 9 VDC
Operating Temperature	-40°F (-40°C) to 185°F (85°C)
Alarm Horn	≈68 dB (68 dBA)
Display Unit Part Number	P1BR-N01-D (black)
Mounting Hole Size	2-1/16 in
Sensor Part Number	FS-T01
Sensor Cable	FS-X01, 20 ft provided (longer cables 20-100 ft available)
Weight	1.6 lb
Package Dimensions	8 x 4 x 4 in
