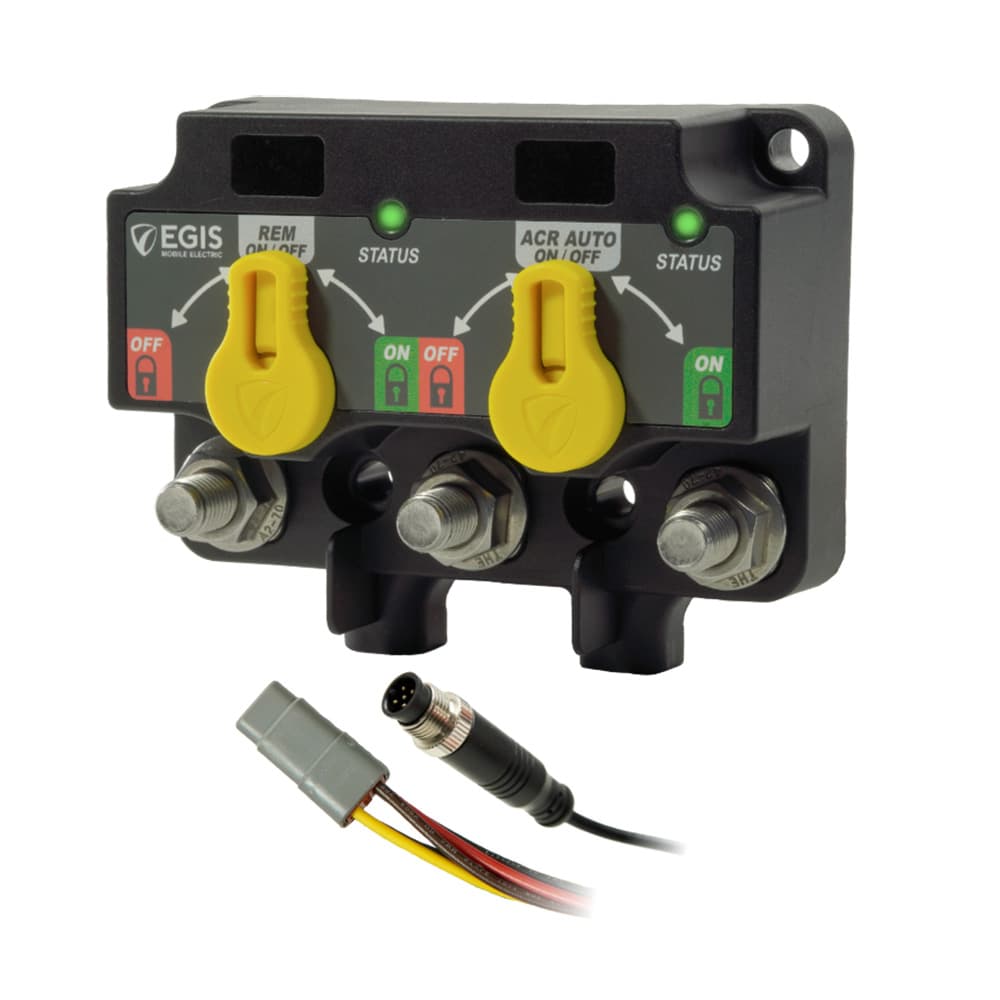

Egis Dual XD NMEA 2000 ACR/Relay w/Knobs 500A 9821-8350 8 Position DT
Shop / Marine & BoatingEgis Mobile Electric

Egis Dual XD NMEA 2000 ACR/Relay w/Knobs 500A 9821-8350 8 Position DT

$250.99
In stock - ships same or next business dayEstimated delivery: Thu, Oct 29 – Tue, Nov 3
1
SKU 108562
UPC 850067590194
Free shipping
180-day guarantee · U.S. warehouse
Earn $12.55 store credit

From the entry

Brand new in original packaging.

  • Sealed to IP67/IP6K9K rating with high-temperature electronics and materials for mounting anywhere aboard
  • Rated 500A continuous / 1600A cranking per switch, supporting standard marine electrical systems
  • Seamless NMEA 2000 integration lets you control switches and monitor switch status and battery voltage; also supports discrete analog control
  • Simple dip-switch programmability gives OEMs and installers flexible relay function configuration
  • Stainless steel cable lug studs with large mounting holes accept 1/4-20 / M6 attachment hardware
  • Manual control knobs provide a lockable on/off override
  • Expandable with Link and Cross-Link busbars to additional Dual, Triple, or Single XD relays for 2- or 3-battery systems
  • 8-position DT connector configuration, part of Egis' XD Series NMEA 2000 relay/ACR line

Specifications

BrandEgis Mobile Electric (XD Series)
MPN9821-8350
UPC850067590194
Current Rating500A continuous / 1600A cranking per switch
Sealing/Ingress RatingIP67 / IP6K9K sealed, high-temperature electronics
Network IntegrationNMEA 2000 control/monitoring of switch status and battery voltage; also supports discrete analog inputs
ProgrammabilityDip-switch configurable relay functions, 90-95% less off-state current vs competitors
Mounting/TerminalsStainless steel cable lug studs; large mounting holes accept 1/4-20 / M6 hardware
Product TypeDual-circuit marine NMEA 2000 ACR/relay module with manual override knobs

What's Included

  • Egis Dual XD NMEA 2000 ACR/Relay Module w/Knobs, 8 Position DT (9821-8350)

Shipping & Returns

Fast, free shipping from our US warehouse.

Returns accepted per our store return policy.

Specifications

MPN9821-8350
TypeACR/Relay Module
BrandEgis Mobile Electric
Unit TypeUnit
Unit Quantity1
