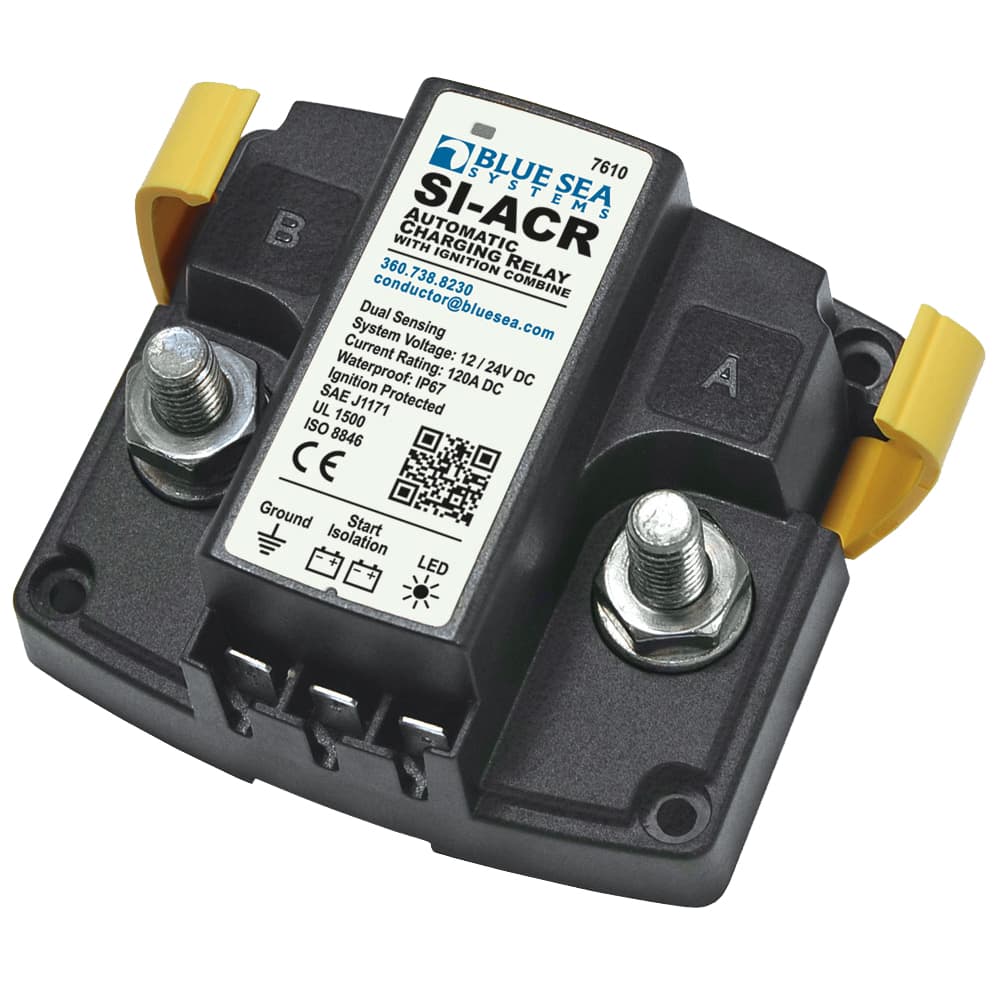

Blue Sea Systems SI-ACR Automatic Charging Relay 7610 120A 12/24V DC
$140.99
In stock - ships same or next business dayEstimated delivery: Fri, Oct 23 – Wed, Oct 28From the entry
Brand new in original packaging.
- Automatically combines batteries during charging and isolates them during discharge or engine start to protect sensitive electronics.
- 12V/24V DC auto-ranging input handles high-output alternators; rated 120A continuous, 210A intermittent (5 min).
- Hermetically sealed, vaporproof, ignition-protected construction rated IP67 for safe use aboard gasoline-powered boats.
- Terminal studs are 3/8"-16 (M10), torque to 140 in-lb, sized for up to 1/0 AWG cable.
- Meets CE, ISO 8846, SAE J1171, and UL 1500 marine electrical standards.
Specifications
| Brand | Blue Sea Systems |
| MPN | 7610 |
| UPC | 632085076108 |
| Nominal Voltage | 12V DC / 24V DC (auto-ranging) |
| Continuous Rating | 120A |
| Intermittent Rating | 210A (5 min) |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Cable Size to Meet Ratings | 1/0 AWG |
| Weight | 1.25 lb (0.57 kg) |
| Ingress Protection | IP67, hermetically sealed / vaporproof contacts |
| Certifications | CE Marked, Ignition Protected, ISO 8846, SAE J1171, UL 1500 |
What's Included

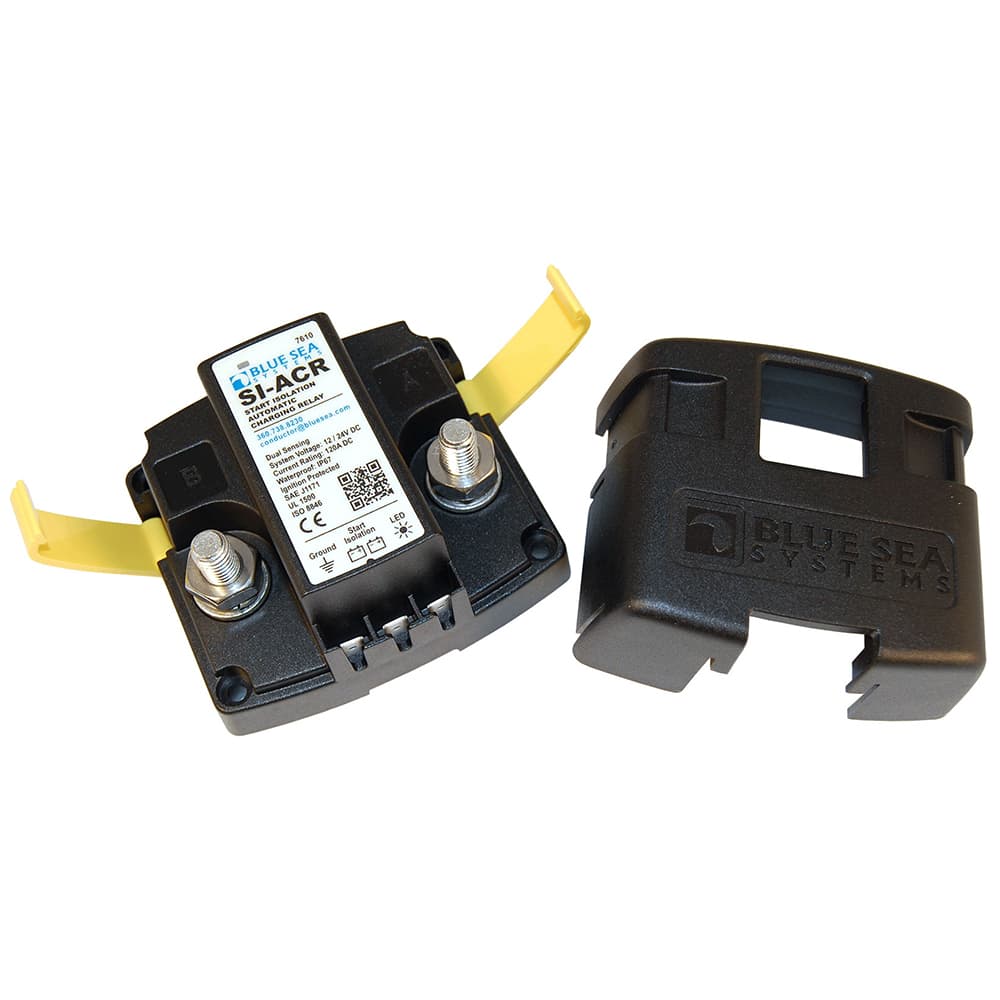

- Blue Sea Systems 7610 SI-ACR Automatic Charging Relay

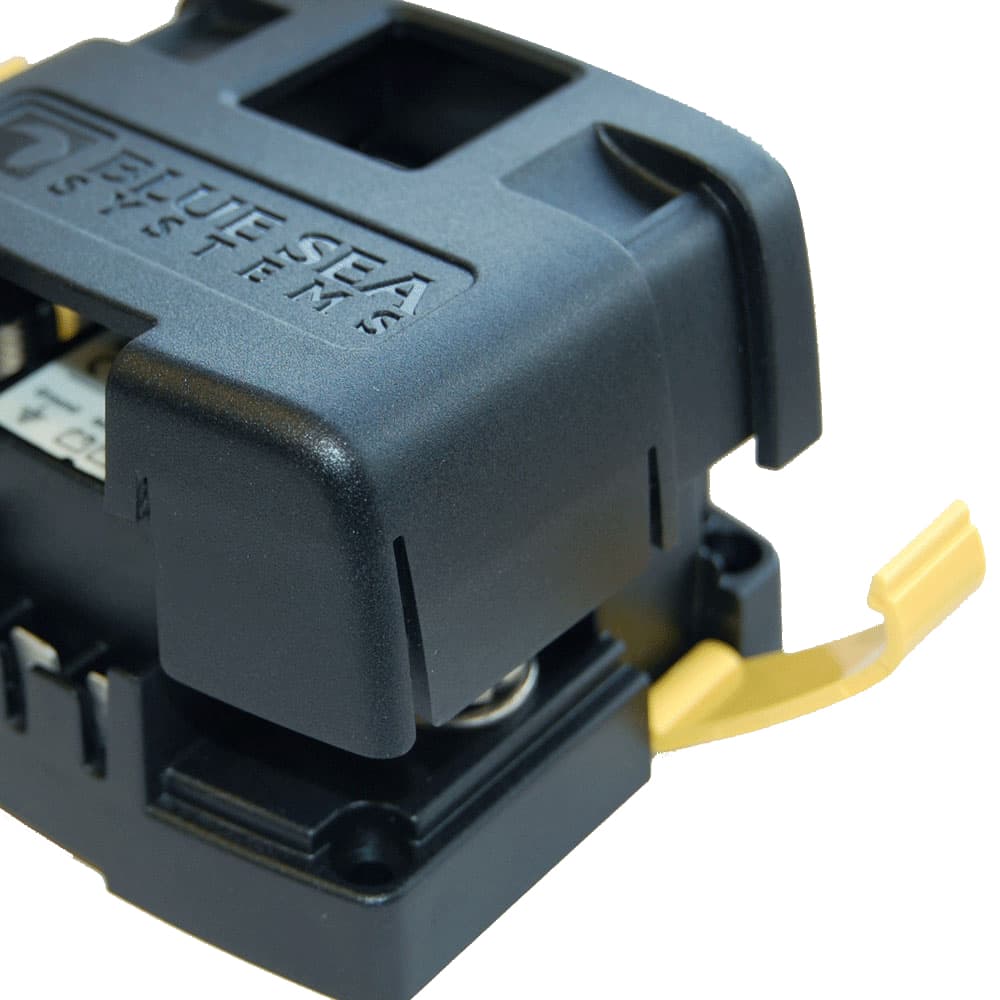

- Clip-on terminal cover
Shipping & Returns
Fast, free shipping from our US warehouse.
Returns accepted per our store return policy.
