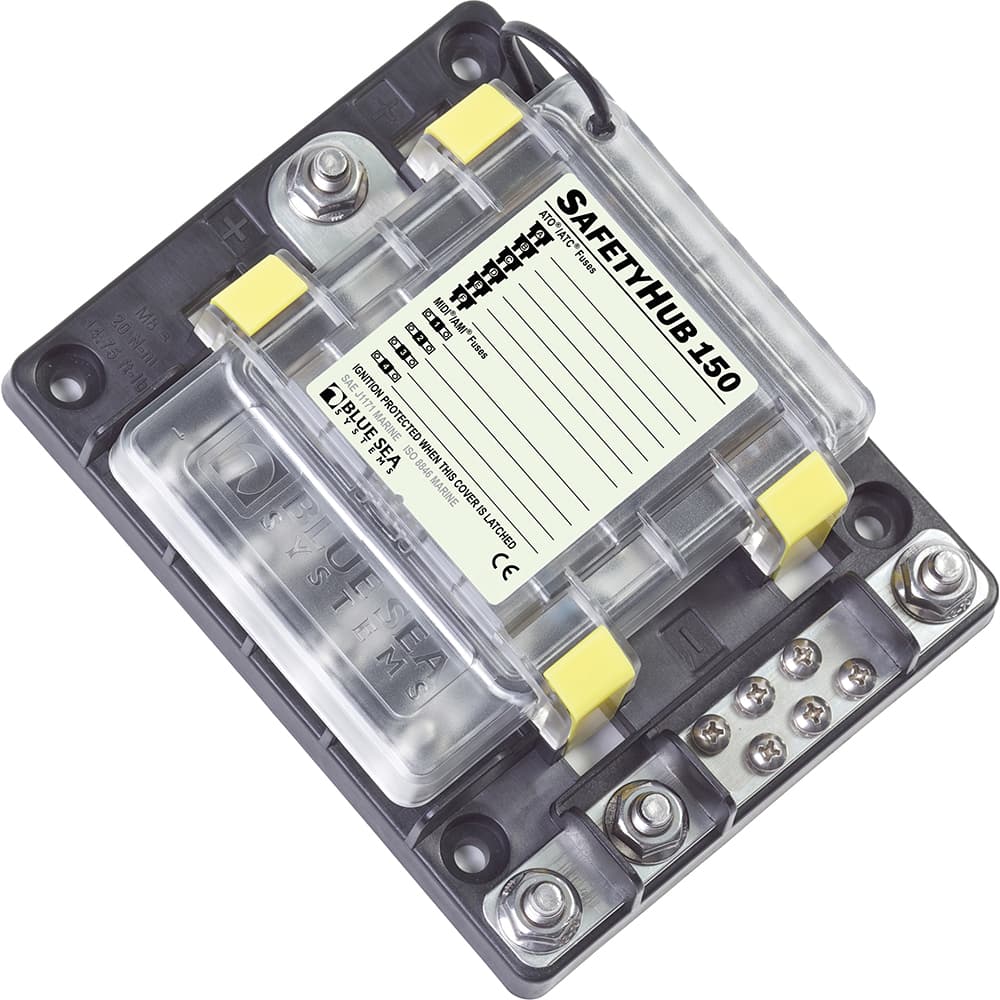

Name: Blue Sea Systems SafetyHub 150 Fuse Block 7748 Ignition Protected 10 Circuit
Brand: Blue Sea Systems
SKU: 40601
Price: 176.99 USD
Availability: OutOfStock

From the entry

Brand new in original packaging.

Ignition-protected fuse block safe for use on gasoline-powered boats and vehicles
Accepts 4 AMI/MIDI fuses (high-amp circuits up to 200A) and 6 ATO/ATC fuses (circuits up to 30A) for 10 total circuits
Sealed IP66-rated cover protects fuses from harsh marine environments and satisfies ABYC/USCG insulation requirements
Operates at 12V/24V/32V DC with M8 x 1.25 terminal studs and one-piece stainless flange nuts
Includes a negative bus bar and a write-on circuit identification label for easy wiring management
Cover doubles as storage for two spare ATO/ATC and two spare AMI/MIDI fuses; fuse puller included
Fuses are sold separately and not included with the fuse block

Specifications

Brand	Blue Sea Systems
MPN	7748
UPC	632085077488
Product Type	SafetyHub 150 Fuse Block (ignition-protected marine fuse block)
Circuits	10 total (4 MIDI/AMI + 6 ATO/ATC)
Operating Voltage	12V / 24V / 32V DC
Stud Size	M8 x 1.25
Maximum Combined Amperage	200A / 350A (OEM) or 300A (Powerwerx) / 600A depending on cable size
Weight	3.50 lb
Dimensions (product, with cover)	6.50 in L x 5.08 in W x 1.88 in H
Ingress Protection	IP66 sealed cover
Certifications	CE Certified, Ignition Protected
Included Accessories	Fuse puller; storage for 2 spare ATO/ATC and 2 spare AMI/MIDI fuses; mounting screws
Fuses Included	No, fuses sold separately
