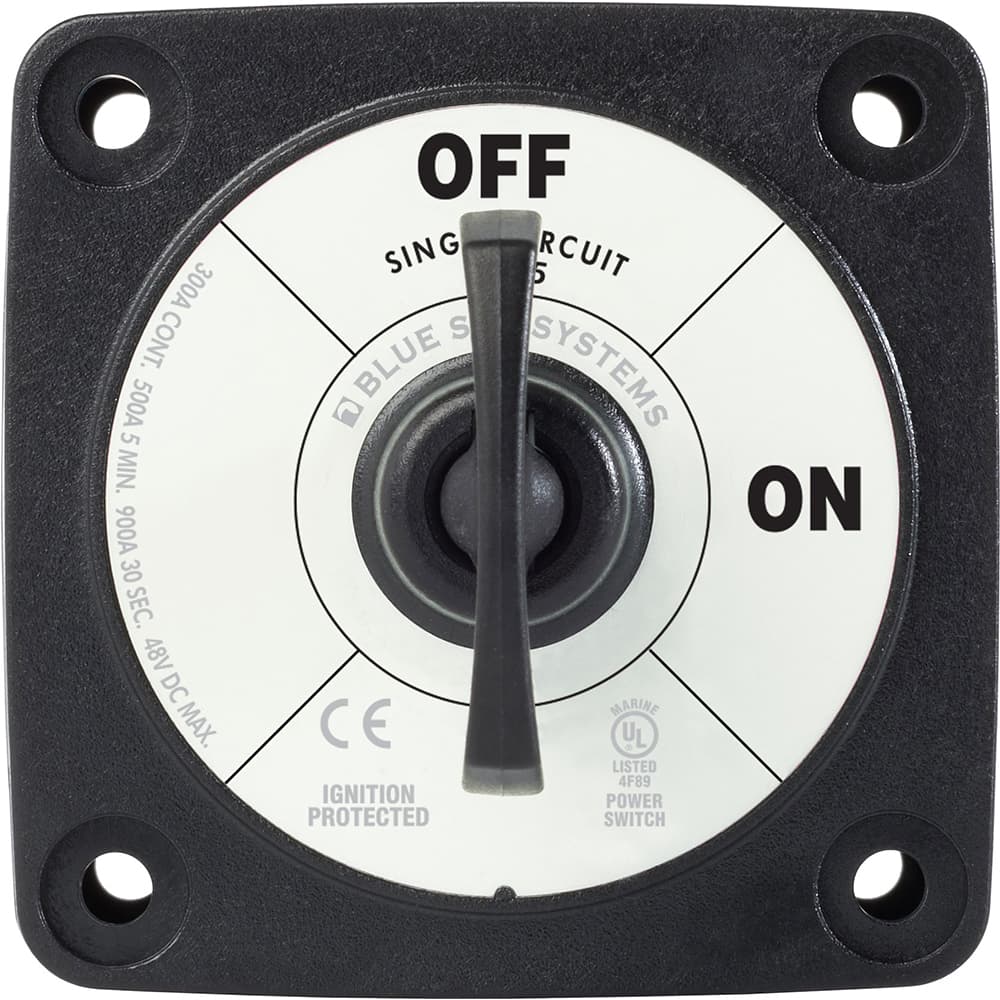

Blue Sea Systems m-Series Mini Battery Switch 6005200 Single Circuit ON-OFF
$45.99
Only 6 left - ships same or next business dayEstimated delivery: Tue, Sep 8 – Fri, Sep 11From the entry
Brand new in original packaging.
- Genuine Blue Sea Systems m-Series Mini single circuit ON-OFF battery switch with removable key, Black, MPN 6005200
- Rated 48V DC maximum, 300A continuous, 500A intermittent (5 min), and 1,500A cranking (10 sec)

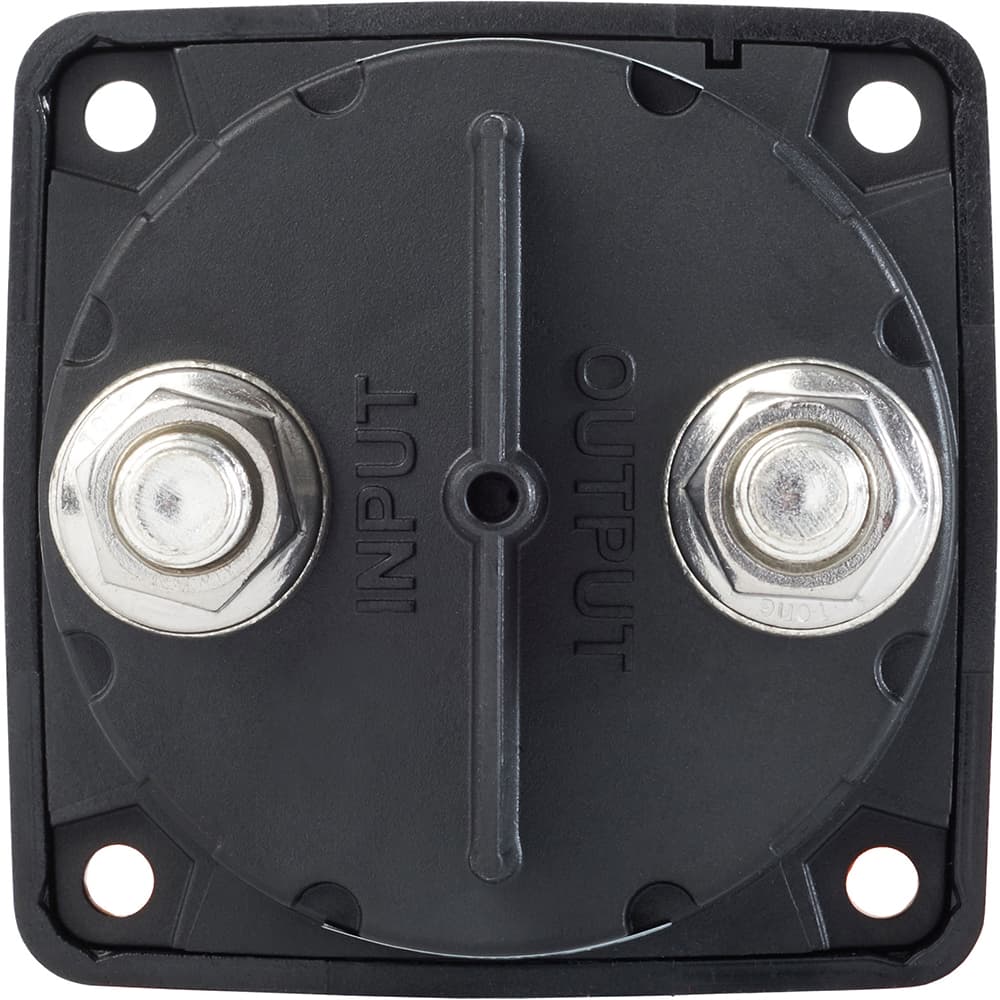

- Tin-plated copper 3/8"-16 (M10) terminal studs, 7/8 in long, accept up to 4/0 AWG battery cables
- Ignition protected; meets ABYC requirements for battery switches and is UL Listed (UL 1107)

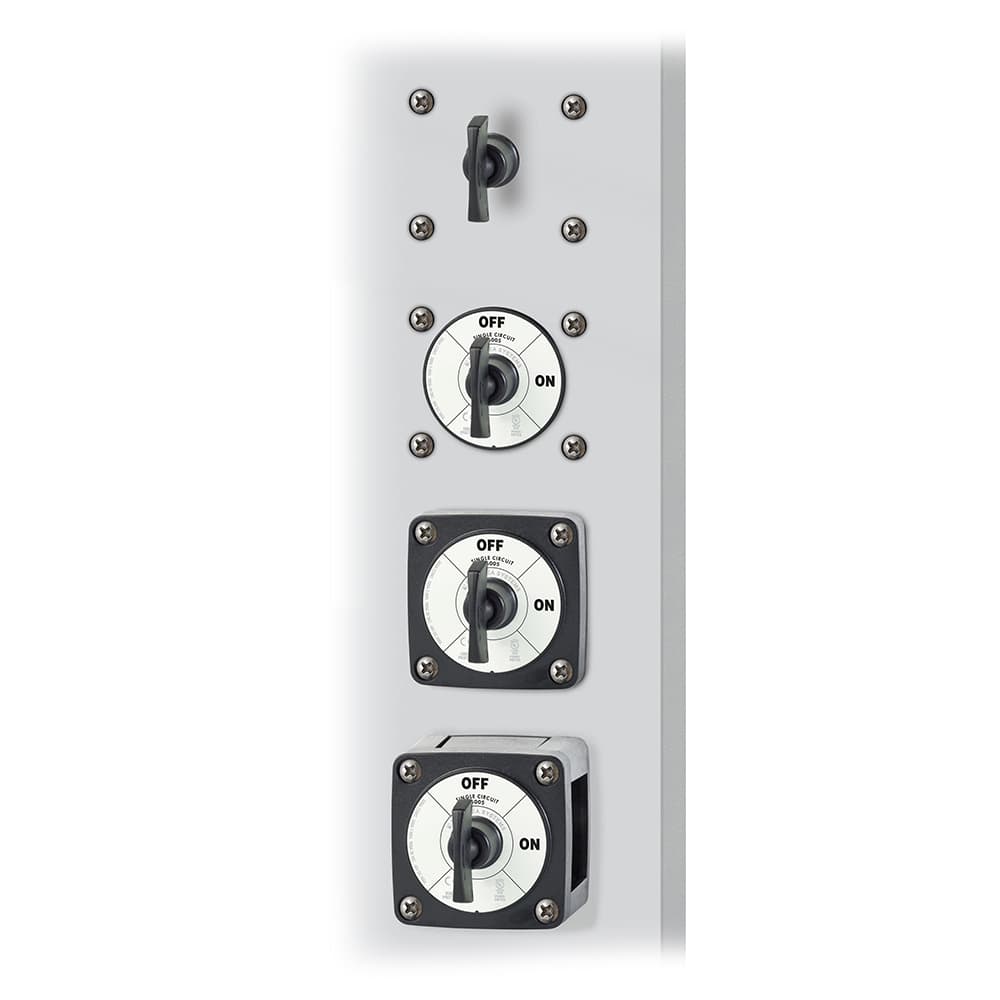

- Compact footprint under 3 in x 3 in allows surface, front, or rear panel mounting; mounting holes accept #10 screws
- Removable key provides security and service lockout; removable isolator covers protect rear contacts
Specifications
| Brand | Blue Sea Systems |
| MPN | 6005200 |
| UPC | 632085600525 |
| Model/Product Name | m-Series Mini On-Off Battery Switch with Key - Black |
| Switch Type | Single Circuit ON-OFF |
| Color | Black |
| Maximum Voltage | 48 Volts DC |
| Continuous Current Rating | 300 Amperes DC |
| Intermittent Rating | 500 Amperes DC (5 min, UL 1107) |
| Cranking Rating | 1500 Amperes DC (10 sec) |
| Terminal Stud | 3/8"-16 (M10) tin-plated copper, 7/8 in length |
| Cable Capacity | Up to 4/0 AWG |
| Ignition Protection | Ignition protected; meets ABYC requirements; UL Listed (UL 1107); meets UL 1500 and SAE J1171 |
| Weight | 0.62 lb (0.28 kg) |
| Overall Size | Under 3 in x 3 in (7.6 cm x 7.6 cm) |
| Country of Origin (unconfirmed) | Mexico |
What's Included
- 1 x Blue Sea Systems m-Series Mini Battery Switch with Key (6005200, Black)
Shipping & Returns
Fast, free shipping from our US warehouse.
Returns accepted per our store return policy.
Specifications
| MPN | 6005200 |
|---|---|
| Brand | Blue Sea Systems |
| Model | m-Series Mini On-Off Battery Switch with Key |
| Application | Marine |
| Current Type | DC |
| Current Rating | 251-300 A |
| Maximum Amperage | 300 A |
| Operation Method | On/Off |
