Name: BEP Marine Pro Installer ANL Fuse Holder 778-ANL 300A
Brand: BEP Marine
SKU: 58695
Price: 49.99 USD
Availability: InStock

From the entry

Brand new in original packaging.

Genuine BEP Marine Pro Installer ANL Fuse Holder, model 778-ANL, rated for 35-300A fuses at 50 VDC.
Features a high-temperature, fibre-reinforced plastic base with a clear polycarbonate snap-on cover for insulation and easy visual fuse inspection.
Insert-moulded 8mm (5/16 in) stainless steel studs and nuts provide superior mechanical strength for the marine environment; anti-seize lubricant pre-applied to prevent thread galling.

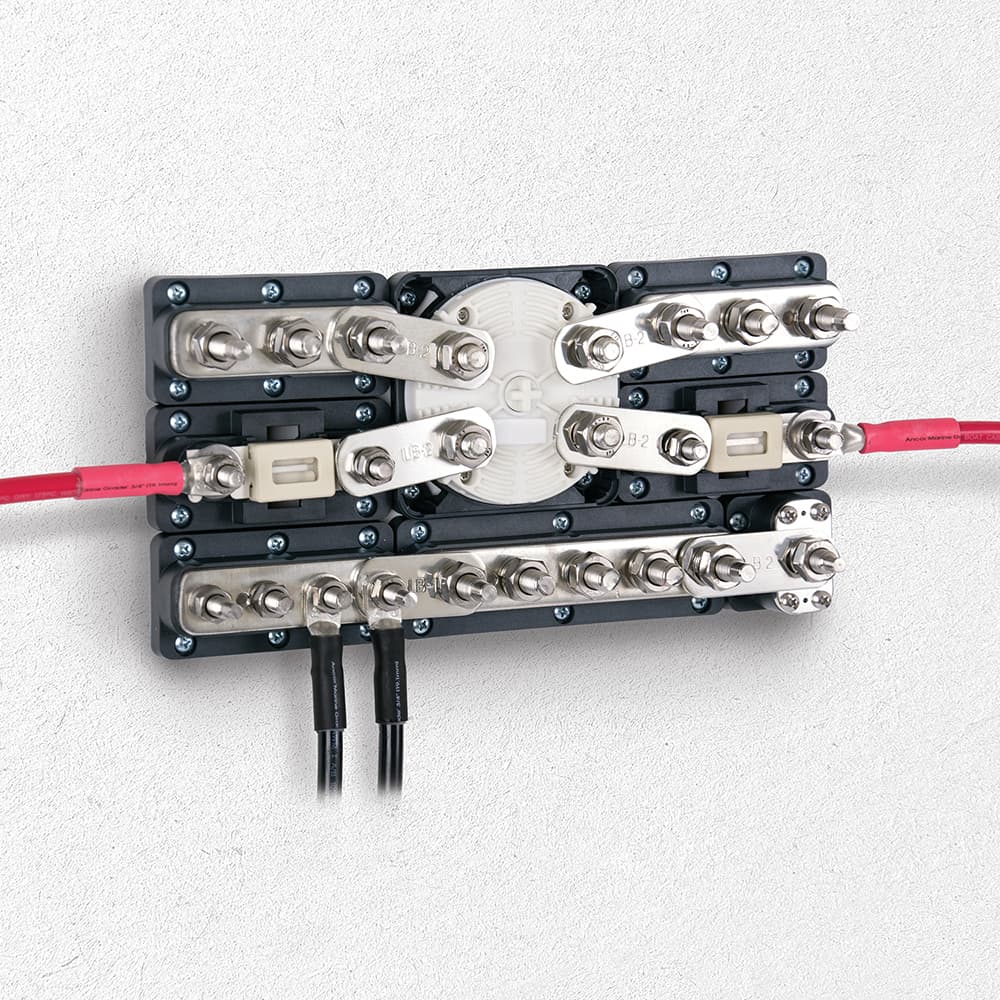

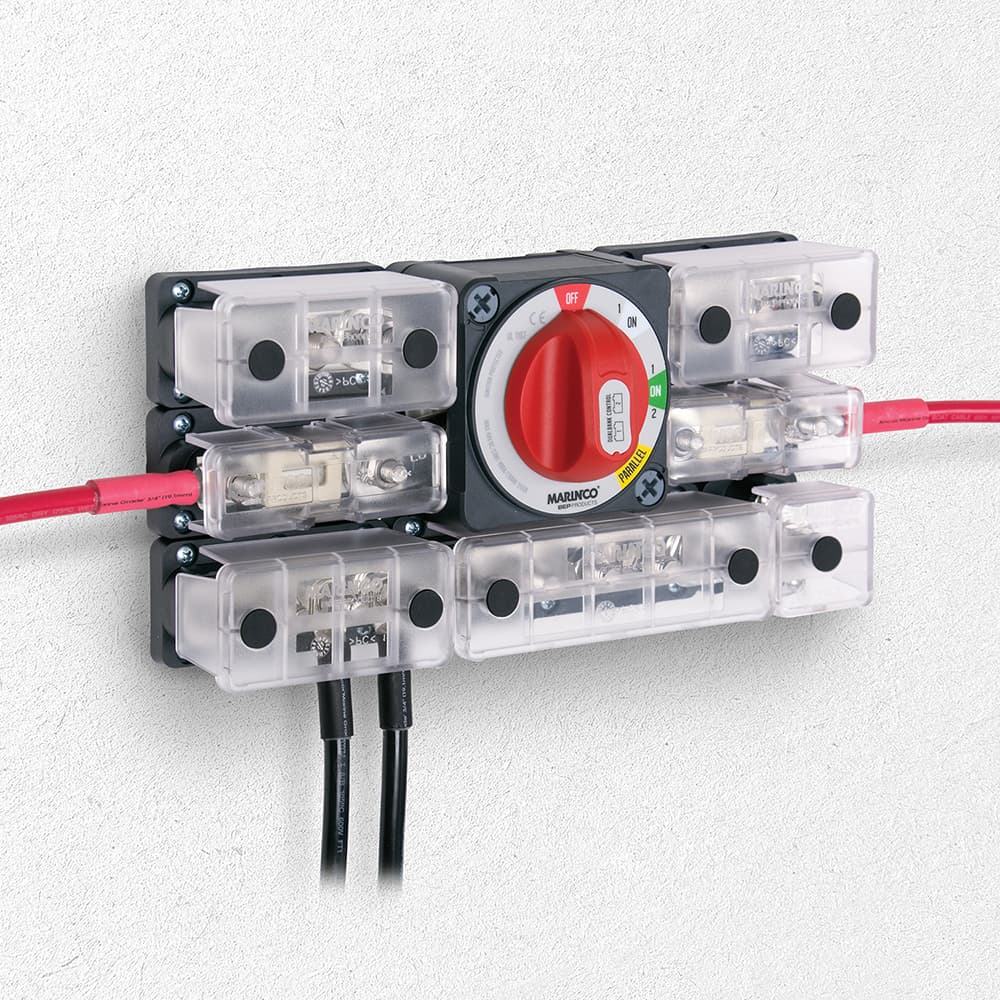

Radiused ends allow back-to-back cable lug routing at any angle from -90° to +90°, and the design modularly interconnects with other Pro Installer busbars and fuseholders to save space.
OEM brochure rates ANL interrupt capacity up to 3,000 Amps DC.
Compact product footprint of 3.9 x 1.9 x 2.1 in and just 5.0 oz, ideal for tight marine electrical panels.

Brand	BEP Marine
MPN	778-ANL
UPC	843687006800
Amperage Rating	35-300A (fuse-size dependent)
Voltage Rating	50 VDC (or per fuse fitted)
Base Material	High-temp fibre reinforced plastic
Cover Material	Clear polycarbonate
Studs/Nuts	8mm (5/16 in) stainless steel studs & nuts
Product Dimensions	3.9 x 1.9 x 2.1 in (98x49x54mm)
Product Weight	5.0 oz (143 g)
Interrupt Rating (OEM)	Up to 3,000 Amps DC
Recommended Torque	12.5 Nm (8mm studs); 21.5 Nm (10mm studs)
Packaged Dimensions	7 x 6 x 2 in
Packaged Weight	0.4 lb
