GearPort
Shop / Tools & WorkshopAncor

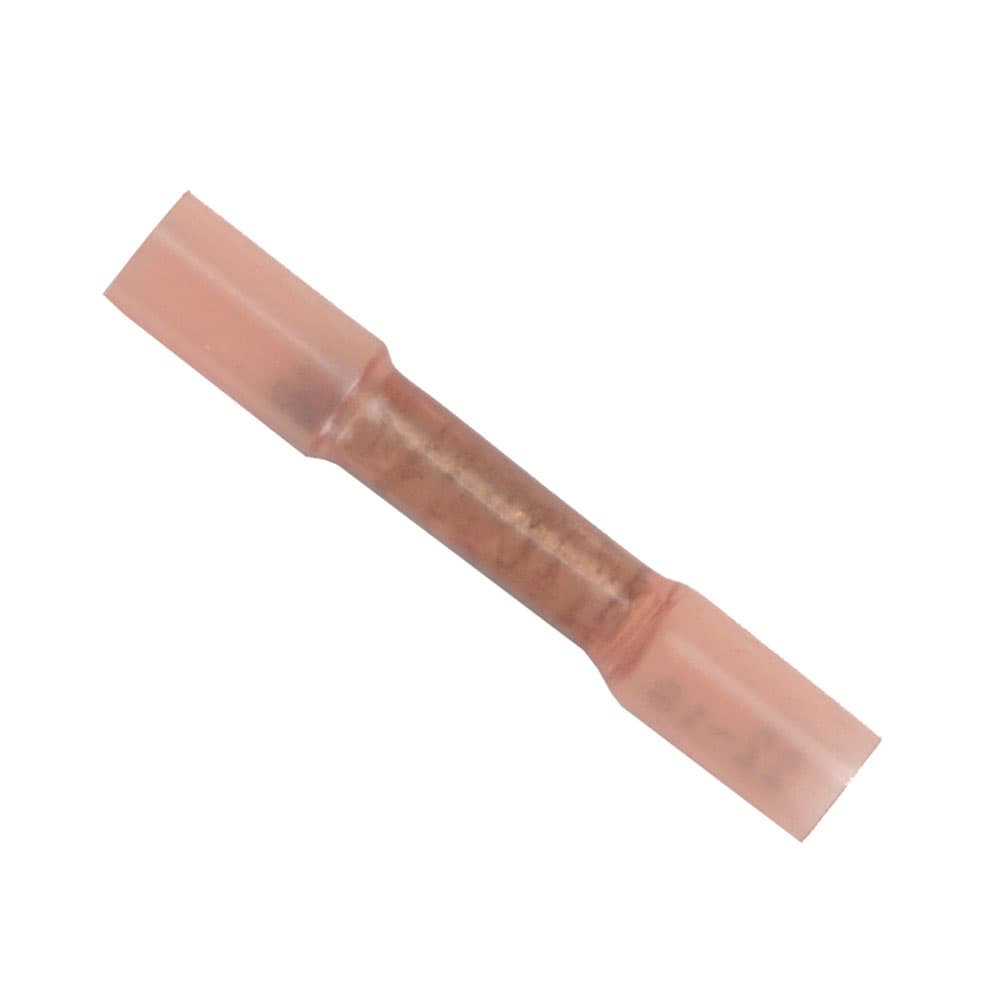

Ancor 22-18 AWG Heat Shrink Butt Connectors 309002 500 Pack
$171.99
Only 7 left - ships same or next business dayEstimated delivery: Thu, Oct 29 – Tue, Nov 3From the entry
Brand new in original packaging.
- Heat shrink butt connectors sized for 22-18 AWG wire, packed 500 to a box.
- Nylon insulated for resistance to sunlight, water, oil, chemicals, vibration, and cut-through damage.
- Cross-linked polyolefin tubing is stronger than PVC and will not burn.
- Heat-activated adhesive lining seals out salt water, oil, acids, and sunlight while providing strain relief.
- Tinned pure copper conductors with a brazed seam for maximum strength and current flow.
- Shrinks to one third its original size at a 3:1 ratio when heated to 257 F (125 C) for a tight, secure seal.
- UL Listed and CSA Recognized for dependable performance.
- Great for marine, automotive, and other demanding wiring applications.
Specifications
| Brand | Ancor |
| MPN | 309002 |
| UPC | 091887308235 |
| Wire Gauge Range | 22-18 AWG (0.3-0.8 mm2) |
| Package Quantity | 500 pieces |
| Connector Type | Heat shrink butt connectors |
| Insulation Material | Nylon |
| Tubing Material | Cross-linked polyolefin with heat-activated adhesive lining |
| Conductor Material | Tinned pure copper with brazed seam |
| Shrink Ratio | 3:1, shrinks to 1/3 original size |
| Shrink Temperature | 257 F (125 C) |
| Operating Temperature Range | -40 C to 110 C |
| Certifications | UL Listed and CSA Recognized |
| Color | Red |
| Weight | 1.37 lb |
| Prop 65 Warning | This product can expose you to chemicals including DEHP. |
What's Included
- 500 heat shrink butt connectors (22-18 AWG)
Shipping & Returns
Fast, free shipping from our US warehouse.
Returns accepted per our store return policy.
Specifications
| MPN | 309002 |
|---|---|
| Brand | Ancor |
| Color | Red |
| Unit Type | Unit |
| Unit Quantity | 500 |
| Connector Style | Butt Splice/Terminal |
| Contact Material | Tinned Copper |
| Heat Shrink Ratio | 3:1 |
| California Prop 65 Warning | This product can expose you to chemicals including DEHP. |
